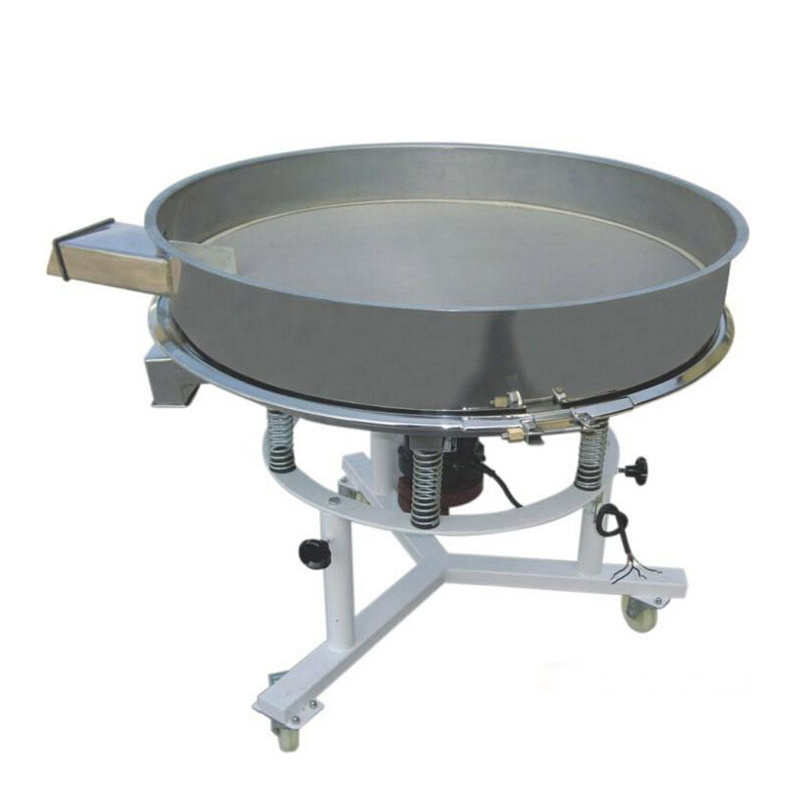

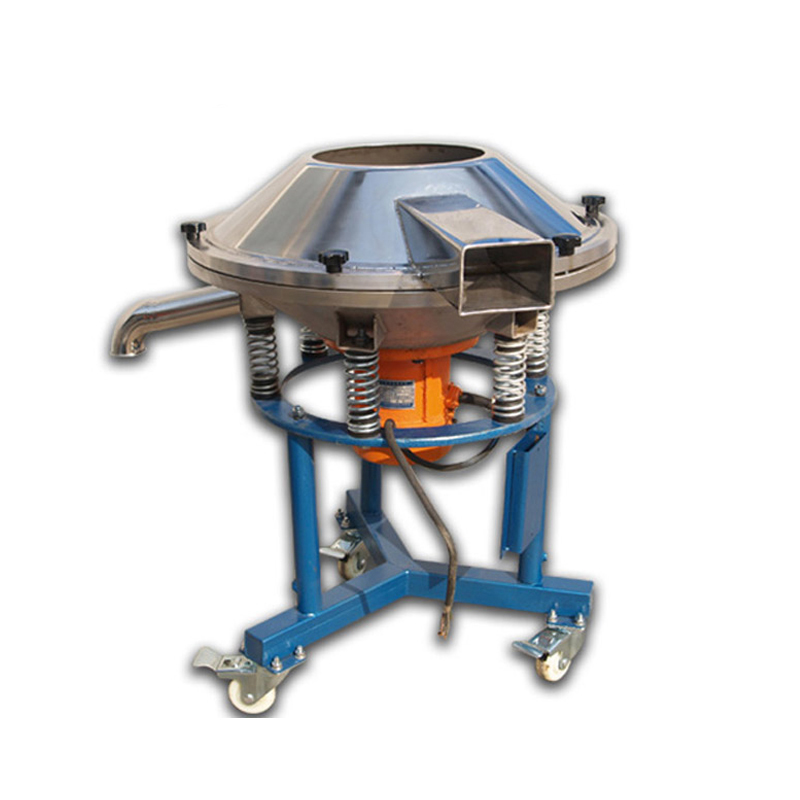

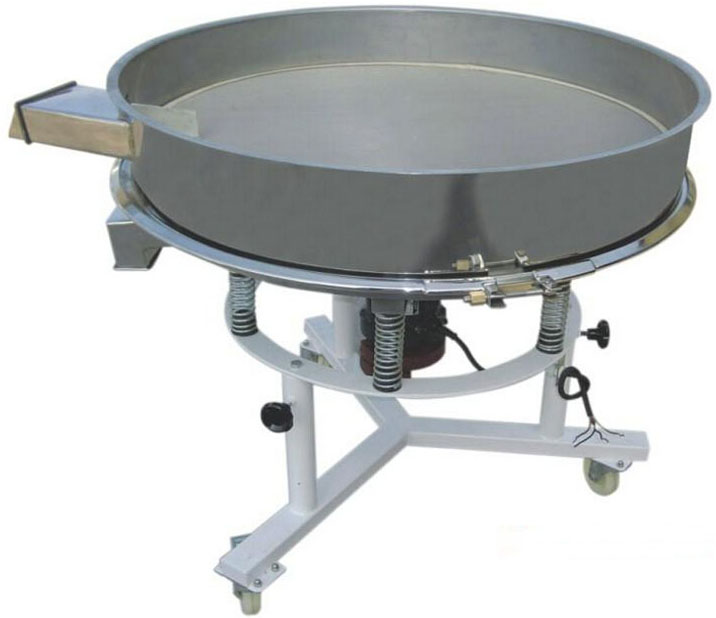

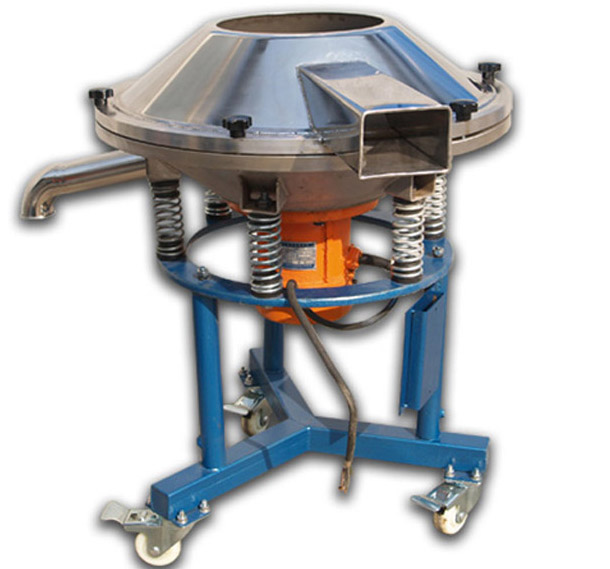

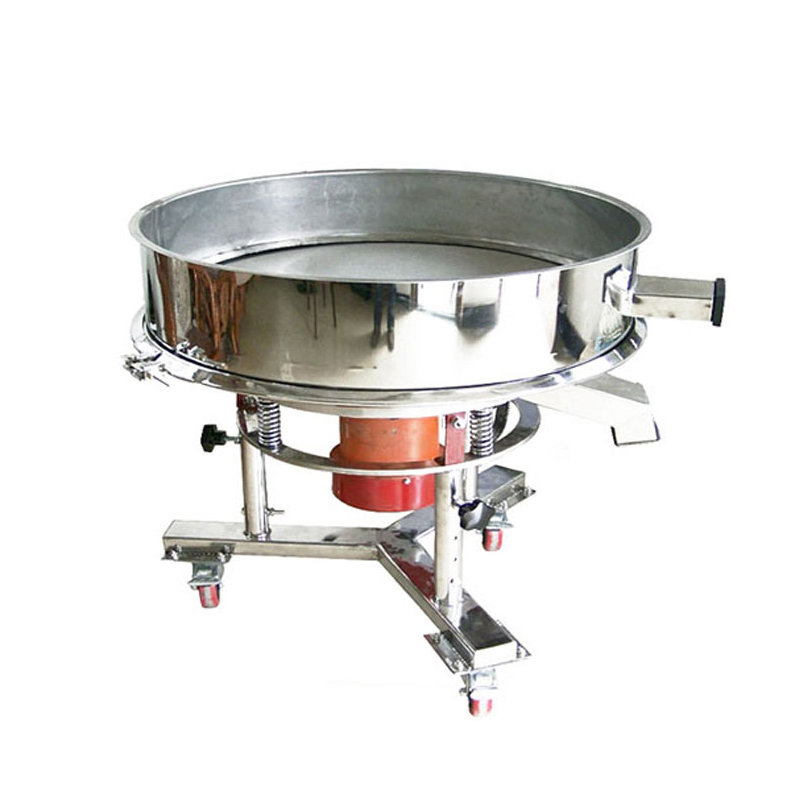

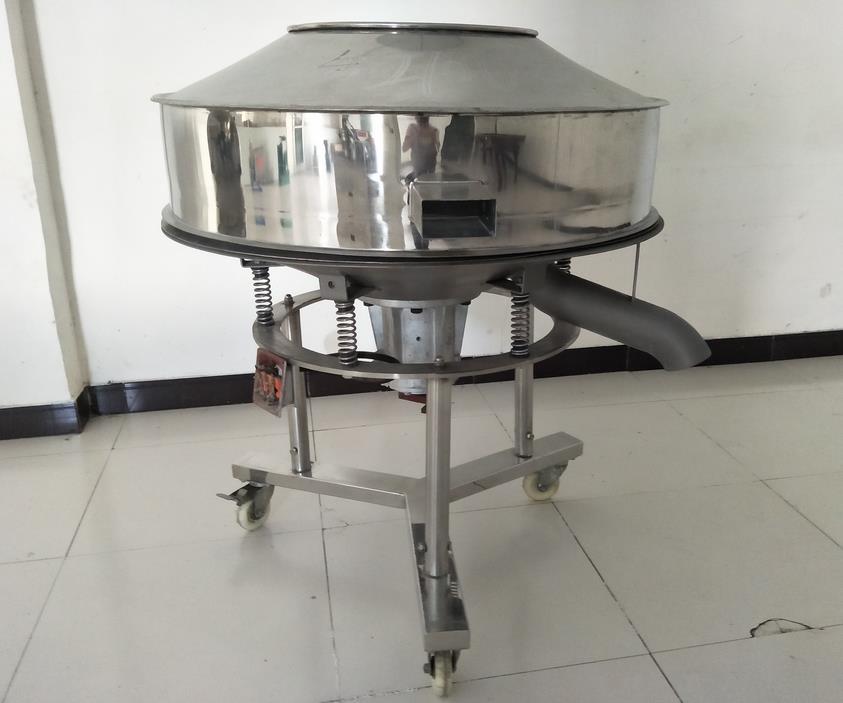

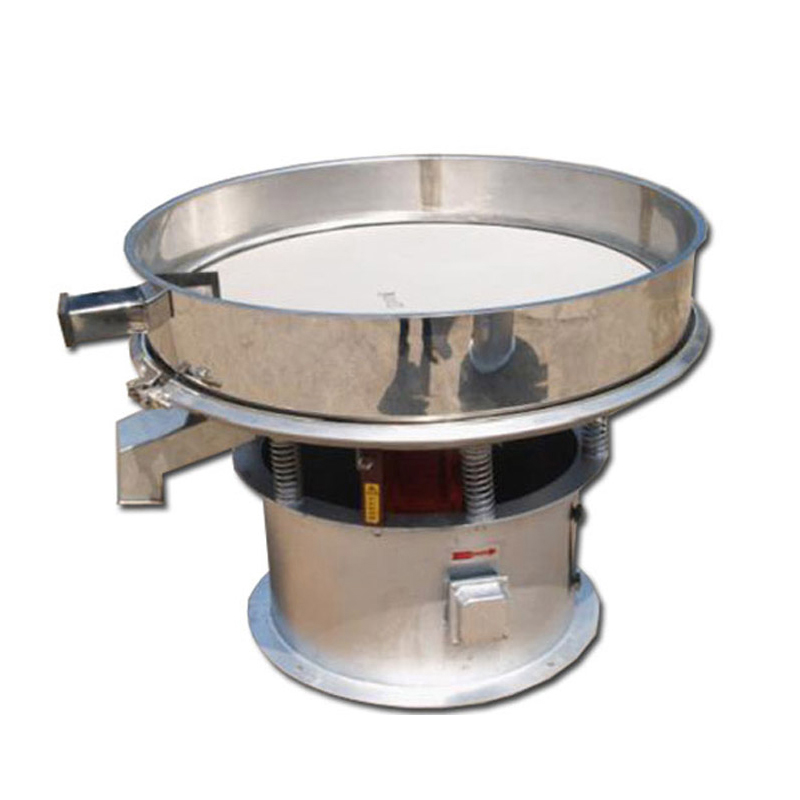

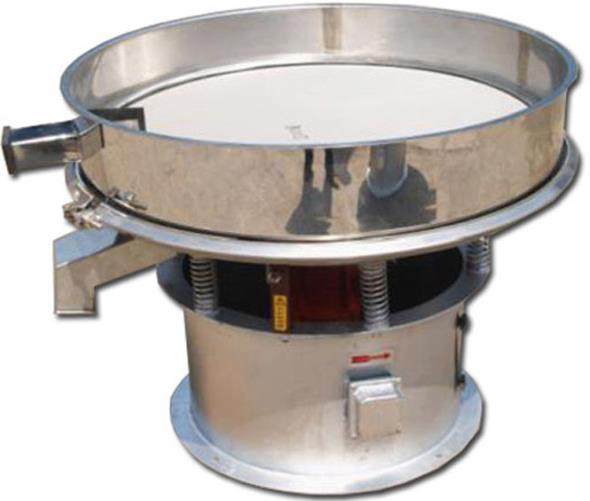

High Frequency Vibrating Screen

  • Product Name: High Frequency Vibrating Screen
  • Model No.:SY-400-------SY-2000
  • Brand:TENCAN
  • Applications:
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Introduction

SY series of high frequency vibrating screen is designed for accurate grading or sieving of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgrading compared with traditional spring suspension separators.






Features

1. High efficiency, refined design, duration, any powders and mucilage are suitable for using.

2. Easily replace traditional screen, simple operation, easy clean.

3. No jam screen, no powder flight, filter size between the factors of the grid, powder 500 mm.

4. Discharge the impurity and coarse materials automobile and operates continuously.

5. Unique screen flame design, long duration, only 3-5 to replace screen.Small volume, move easily.

6. Maximum layers of the screens can be reached to 5 layers and 3 layers are often suggested.


Technical Parameters

Model

Effective diameter for sieving (mm)

Effective sieving area(m2)

Screen mesh size

Layer

Powder(KW)

Vibration motor

Common motor

SY-400

Φ340

0.0907

2-500 mesh

1-5

0.18

--

SY-600

Φ540

0.2289

2-500 mesh

1-5

0.25

0.75

SY-800

Φ730

0.4183

2-500 mesh

1-5

0.55

1.1

SY-1000

Φ900

0.6359

2-500 mesh

1-5

1.1

1.5

SY-1200

Φ1100

0.9490

2-500 mesh

1-5

1.1

1.5

SY-1500

Φ1400

1.5386

2-500 mesh

1-5

1.5

2.2

SY-1800

Φ1700

22687

2-500 mesh

1-5

4

3.0

SY-2000

Φ1886

2.7922

2-500 mesh

1-5

4

3.0
