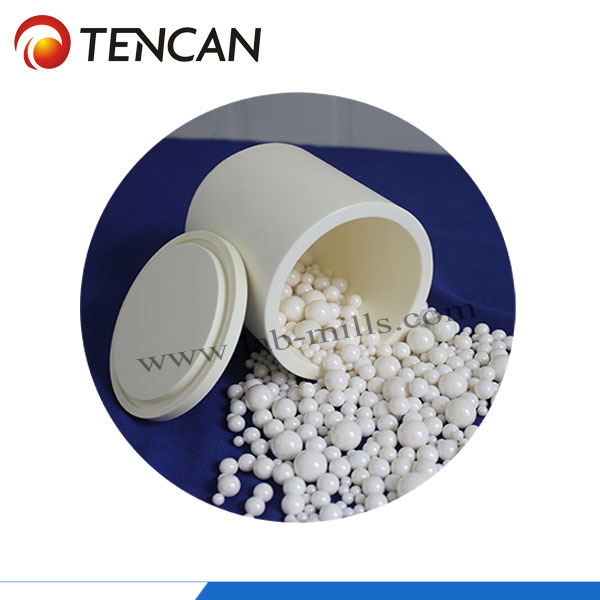

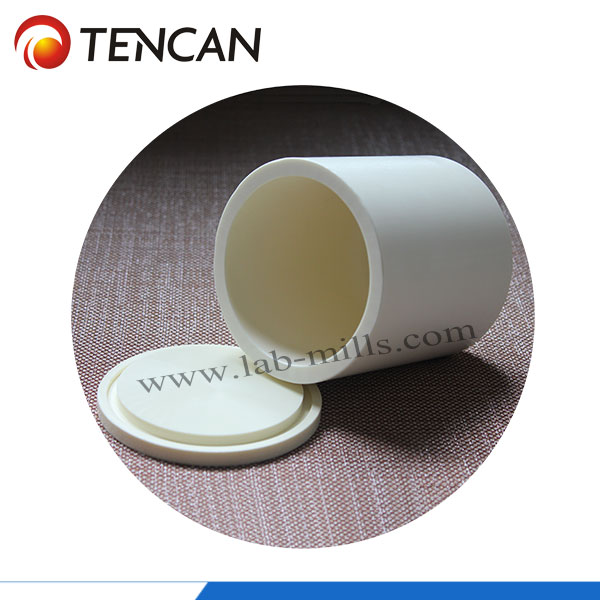

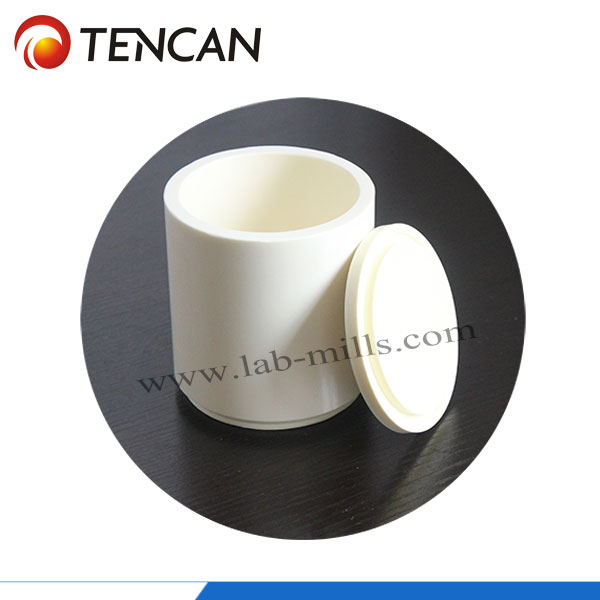

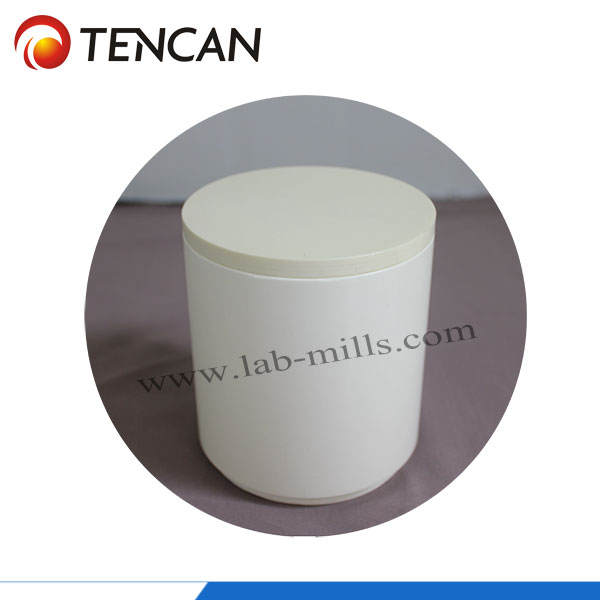

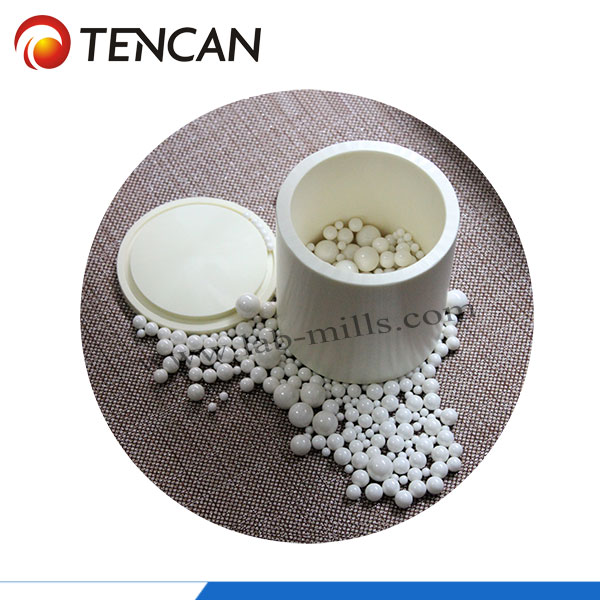

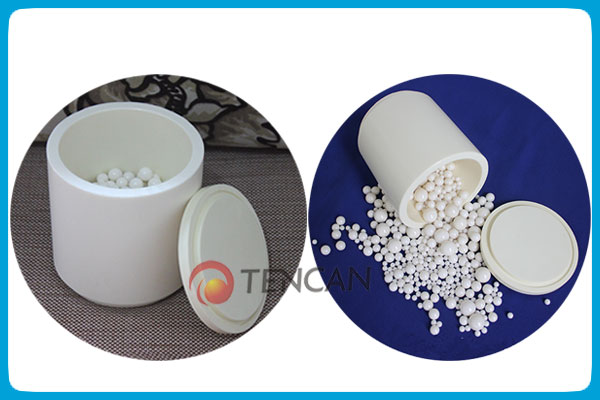

Zirconia planetary Mill Jar

Brand:TENCAN

Share With:

(※ Click this button to inquiry)

Overview
Working Principle
Feature
Technical Parameter
Accessory

Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc. Zirconia mill jar is particularly suitable for vertical stirring mill, horizontal rolling mill, vibration mill, and various high-wire-speed sanding stick pins, etc.
Hardness of zirconia: 12.3 (GPa)
Density: 6(g ▪ cm-3)
consumption resistant: 0.48(ppm/hrs)

Parameters of Zirconia Mill Jar
Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height of Not Containing Cover (mm)	Total Height (mm)	Weight (KG)
50ml	38	55	52	60	67	0.6
100ml	50	65	58	66	75	0.8
250ml	74	92	70	78	88	1.8
500ml	84	100	100	108	118	2.3
1L	108	128	128	138	148.5	4.7
1.5L	112	132	155	165	175.5	5.5
2L	138	158	140	150	162	6.9
2.5L	138	158	170	180	192	7.8
3L	138	158	198	208	220	8.6
4L (packaged 2mm stainless steel)	175	205	205	222	231	14.8
5L (packaged 2mm stainless steel)	170	192	228	240	254	16.7
Remarks:1. Size deviation within ±2； 2. Weight deviation within ±0.2KG
