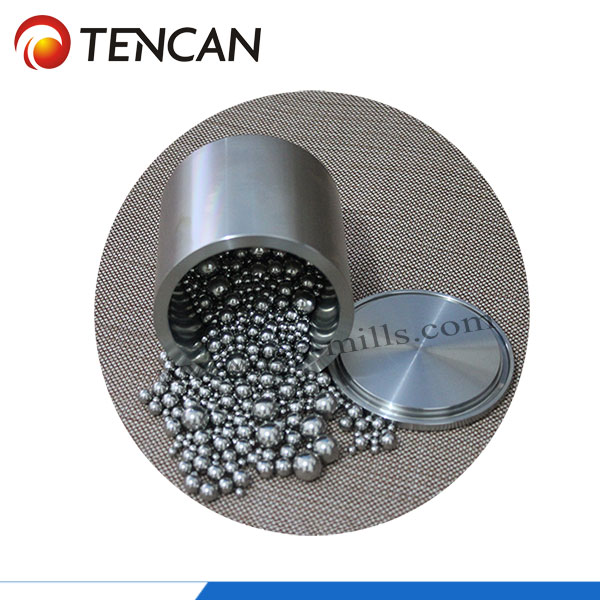

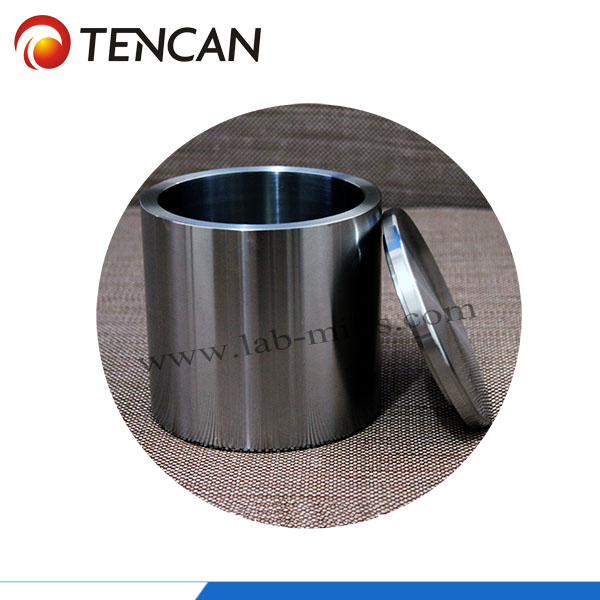

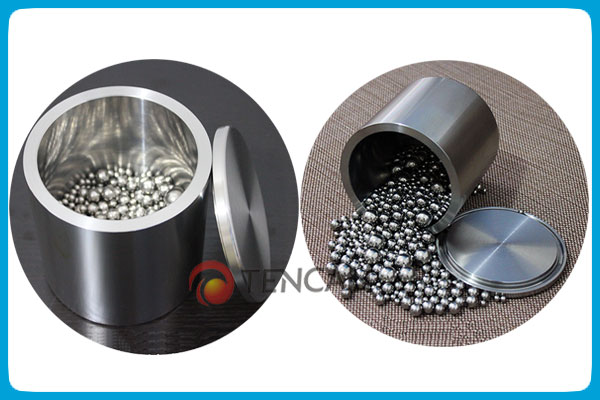

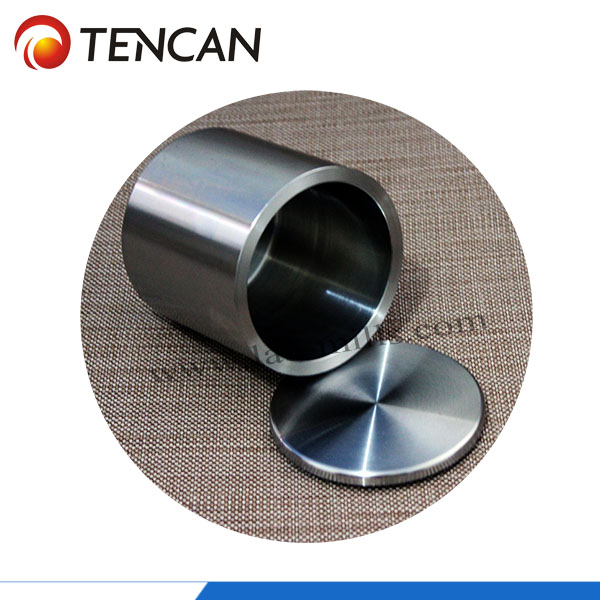

Stainless Steel planetary Mill Jar

  • Brand:TENCAN
  • Applications:Stainless steel grinding pot for planetary ball mill and no pollution for the grinding samples.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Stainless steel ball mill is a kind of most widely used mill jar, which applies to grinding metal and non-metal materials. Additionally, all kinds of vacuum jars in different size are available or customized according to customer’s needs.





1. Scientific design, fully in conformity with diameter ratio of jars.
2. Exquisite process, surface highly polished.
3. Materials of 304 and 306 stainless steel is available, resistant ability of acid and alkali.
4. Good sealing package without leakage.
5. Lots of solutions are for your option.

Parameters of 304 Stainless Steel Roll Mill Jar
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
500ml 82 88 135 138 144 1.1
1L 100 106 162 165 172 1.8
2L 124 131 196 199 206 2.9
3L 152 158 207 210 217 3.6
5L 172 178 257 262 269 5.3
10L 233 243 295 300 307 11.9
15L 263 271 335 340 347 12.7
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG



Parameters of 304 Stainless Steel Mill Jar for Planetary Ball Mill
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
50ml 38 48 45 50 54 0.4
100ml 48 62 59 65 72 0.9
250ml 71 87 69 75 83 1.7
500ml 90 106 93 100 108 2.9
1L 115 131 103 110 118 4.2
1.5L 115 131 143 150 158 5.3
2L 141 157 133 140 148 6.5
2.5L 141 157 168 175 183 7.6
3L 141 157 198 205 213 8.4
4L 162 178 198 205 213 10
5L 182 192 195 200 209 9.3
10L 232 243 245 250 259 15
15L 261 271 279 286 295 18.7
20L 310 320 268 275 284 23.4
25L 310 320 331 338 347 25.9
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG

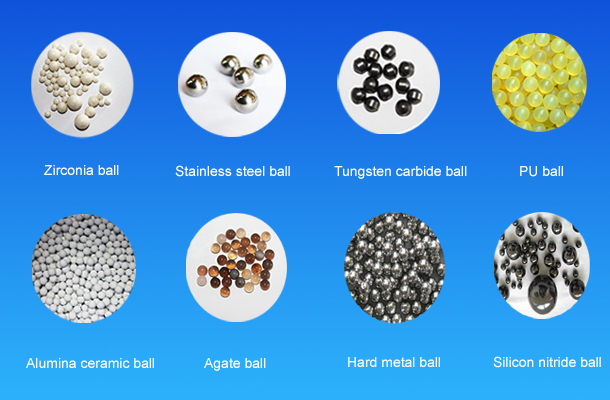

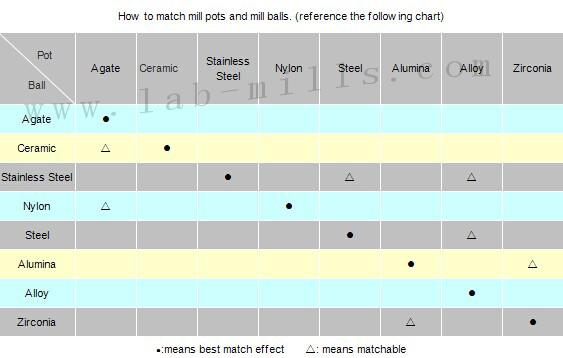

Mill Balls

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
