Small Capacity Low Speed centrifuge 2-4B

  • Product Name:Small Capacity Low Speed centrifuge
  • Model No.:2-4B
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

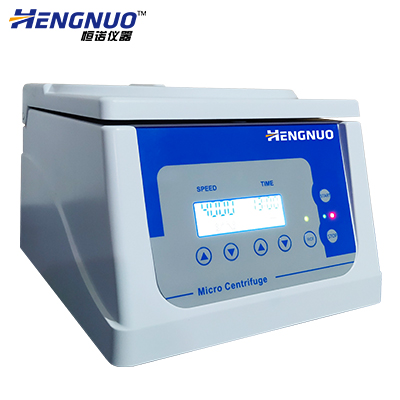

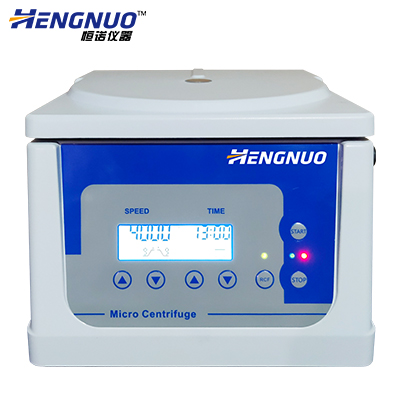

 Small Capacity Low Speed centrifuge

Model No. 2-4B

Product Introduction

1. Microcomputer controlled, DC brushless motor drive, smooth and quiet operation.

 high accuracy of rotation speed.

2. PRP Special centrifuge for beauty.

3. Small size, light weight, easy to carry.

4. LCD, Human-friendly interface, simple to operate.

5. Adjustable up and down speed of gear 1-9, free choice for braking time, meeting multiple experimental requirements.

6. Fault self diagnosis system, which can detect over speed, speed loss and other faults. It has functions of unbalanced protection,

door cover protection and other functions, which improves safety of the instrument greatly.

7. Equipped with manual door lock, and the base is fixed with suction cup, safe and reliable.

8. With special noise treatment, noise of the whole machine is lower than 52db (A).

9. It is a necessary equipment for sample separation in small hospitals and beauty salons.







Small Capacity Low Speed centrifuge

Model No. 2-4B



Features



1. Microcomputer controlled, DC brushless motor drive, smooth and quiet operation.

 high accuracy of rotation speed.

2. PRP Special centrifuge for beauty.

3. Small size, light weight, easy to carry.

4. LCD, Human-friendly interface, simple to operate.

5. Adjustable up and down speed of gear 1-9, free choice for braking time, meeting multiple experimental requirements.

6. Fault self diagnosis system, which can detect over speed, speed loss and other faults. It has functions of unbalanced protection,

door cover protection and other functions, which improves safety of the instrument greatly.

7. Equipped with manual door lock, and the base is fixed with suction cup, safe and reliable.

8. With special noise treatment, noise of the whole machine is lower than 52db (A).

9. It is a necessary equipment for sample separation in small hospitals and beauty salons.


Technical Parameters for 2-4B

Model No.

2-4B

Maximum Rotation Speed

4000rpm(100-4000rpm) Increment:10rpm

Drive Motor

DC Brushless Motor

Time Setting Range

1-99 min Increment: 1 min

Speed Accuracy

±20r/min

Max Relative Centrifugal Force

1880×g(10-1880*g) Increment:10*g

Rotor Capacity

8*15ml or12*10ml

Outline Dimensions

(L*W*H)

300mm×260mm×210mm

Net Weight

7.5kgs

Gross Weight

8kgs



Applicable Rotors For 2-4B

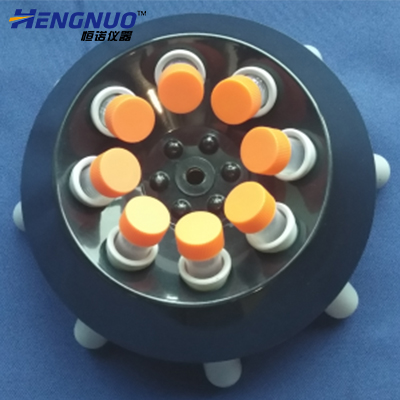

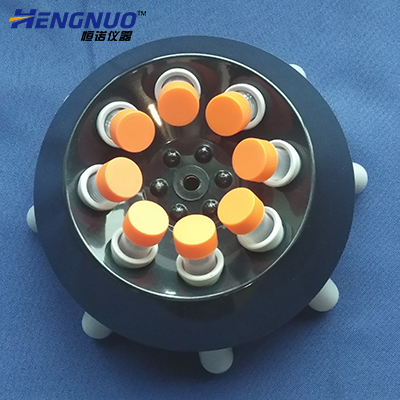

#1 Angle Rotor







Single Tube Capacity: 15ml

Total Centrifugal Capacity: 8*15ml

Max Rotation Speed: 4000rpm

Max Relative Centrifugal Force: 1880*g

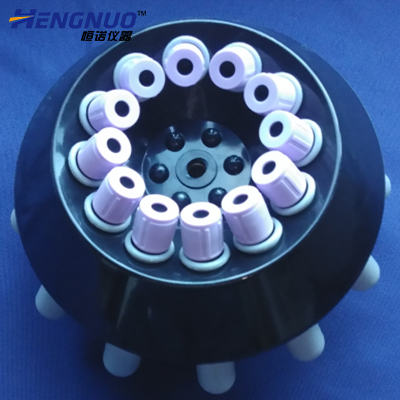

#2 Angle Rotor



Single Tube Capacity: 10ml

Total Centrifugal Capacity: 12*10ml

Max Rotation Speed: 4000rpm

Max Relative Centrifugal Force: 1880*g
