Airflow Sieving Machine/Air Jet Sieve / Horizontal Airflow Sieve

  • Product Name:Airflow Sieving Machine/Air Jet Sieve / Horizontal Airflow Sieve
  • Model No.:SY18-65/SY30-100/SY50-130
  • Brand:TENCAN
  • Applications:The machine is available in the industries such as metallurgy, mining, pharmacy, food, chemical, metal powder and nonmetal etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Airflow Sieving Machine / Air jet sieve / Horizontal Airflow Sieve


Working principle

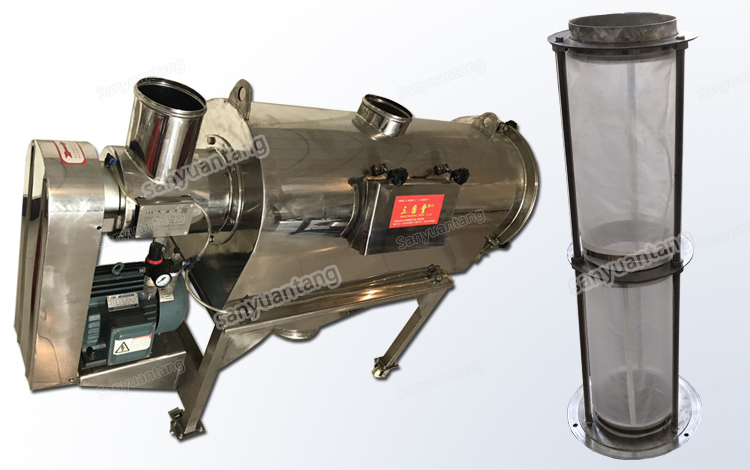

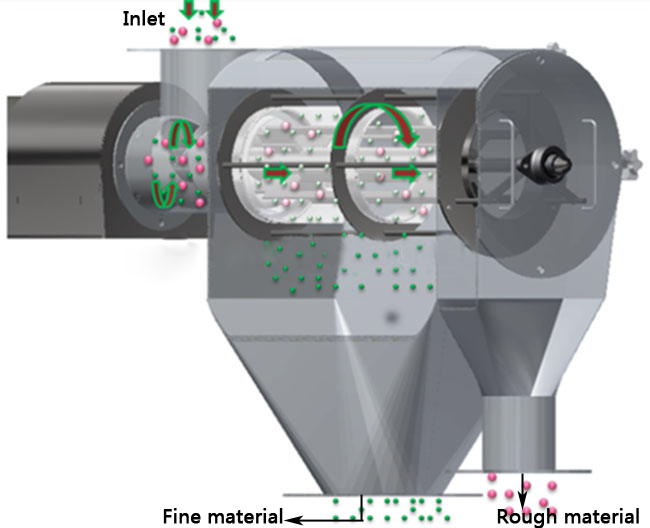

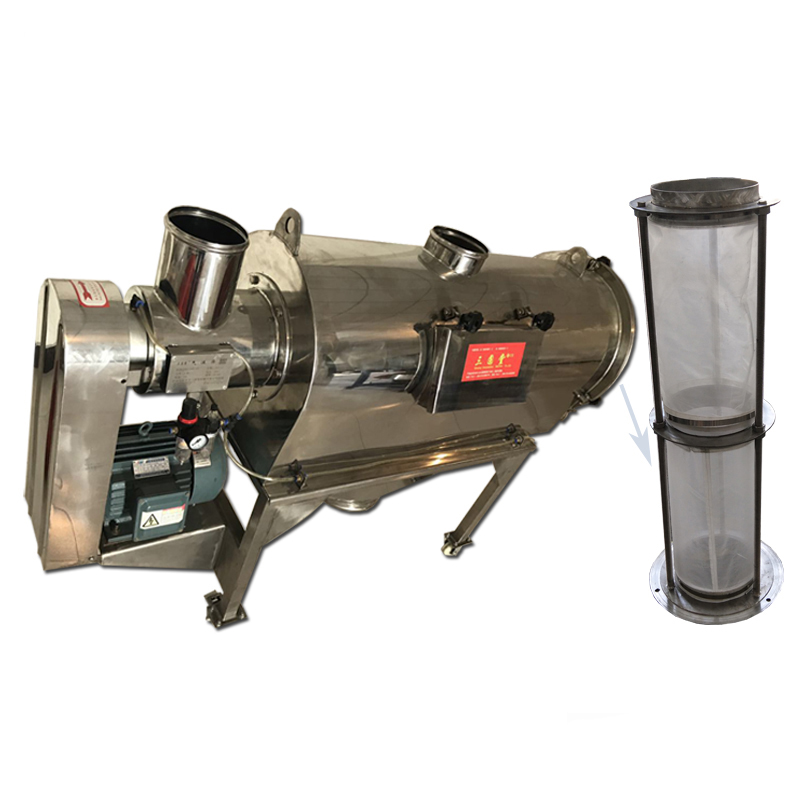

The screen holder is placed inside the machine. Bulk materials mixed with airflow and atomization pass the screw conveyor device, enter the screen holder. The undersized materials are sprayed through the screen cloth and discharged from the outlet under the action of centrifugal force and the cyclone propelling power, which caused by the blade inside the net tube. The oversize material, which can not cross the screen cloth, is discharged from the rough material outlet along the inside surface of the tube.



Application

Airflow sieving machine is widely used in the industries such as metallurgy, mining, pharmacy, food, chemical, metal powder and nonmetal etc.

More technical parameter of China centrifugal screen.



 Technical Parameters

Model

Material

Screen cage size mm

(diameter*length)

Screen material

Application

SY 18-65

Q235A Carbon steel

180mm*650mm

 Stainless steel or

Nylon screen

500mesh below

SUS Stainless steel

180mm*650mm

SY 30-100

Q235A Carbon steel

300mm*1000mm

500mesh below

SUS Stainless steel

300mm*1000mm

SY 50-130

Q235A Carbon steel

500mm*1300mm

500mesh below

SUS Stainless steel

500mm*1300mm
