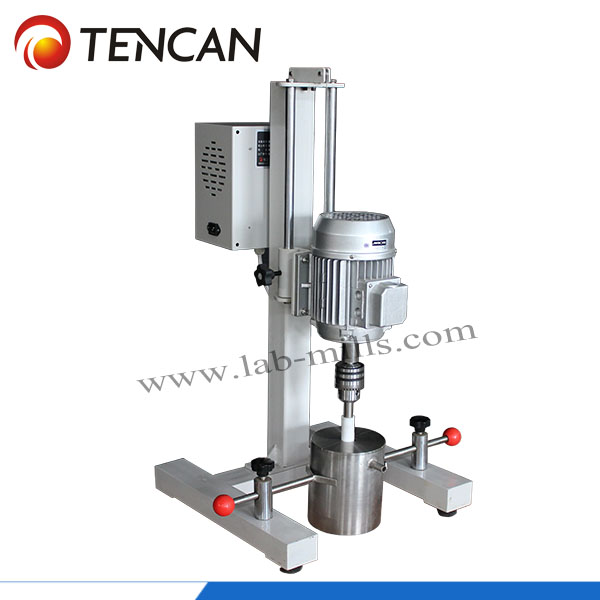

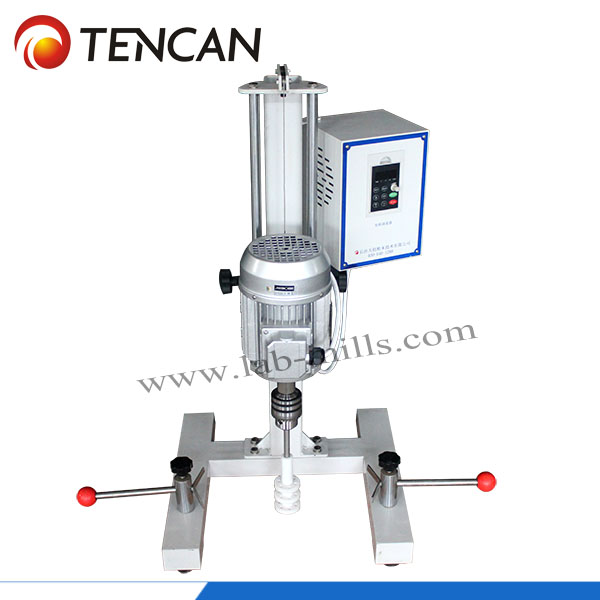

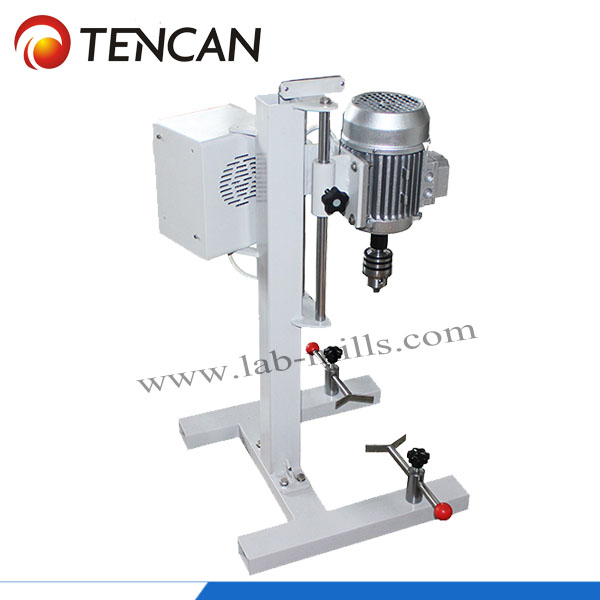

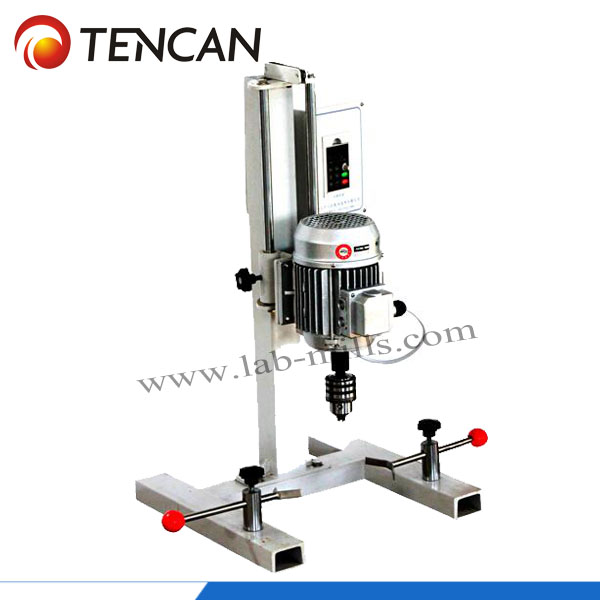

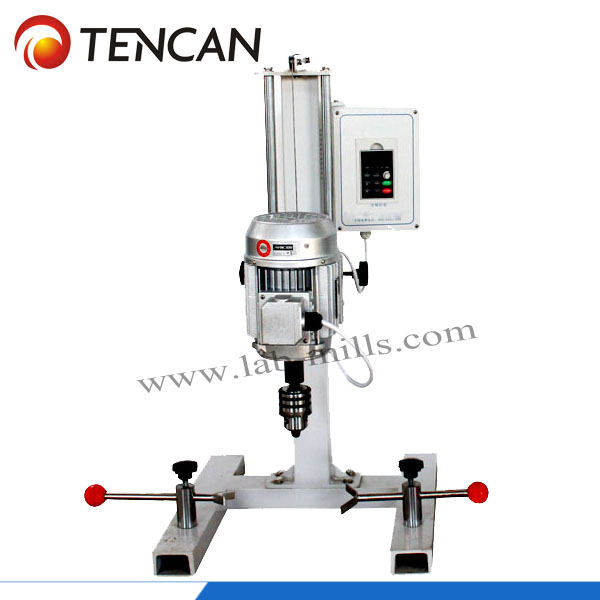

Lab Sand Mill

On a sand mill, a central bar agitates the media balls and sample materials in the mill jar, causing them to have a high-speed action. The materials will be crushed, ground, dispersed and emulsified by heavy shear, impact and rolling.

1.Simple structure and easy operation.

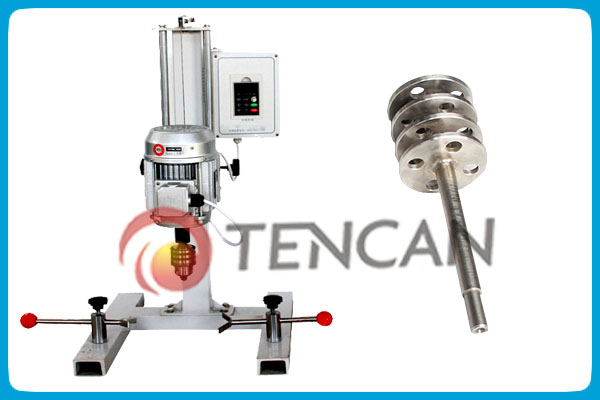

2.Easy to change the chuck on the central bar.
3.The mill bowl with water cooling jacket to do the grind and cooling at the same time.
4.Disperser installed on the central bar to disperse the material.
5.Grinder at different speed according to the requirement.

Parameter of Lab Sand Mill
Capacity of mill pot:	0.5L, 1L, 2L, 3L, 5L, 10L
Liner of mill pot:	Stainless steel, alumina, zirconia etc.
Stirred speed:	1400, 2800, 3500 rpm or adjustable speed
Mill media:	Alumina, zirconia etc. (≤Φ10mm)
Motor power:	120-1500W
Output granularity:	Minimum granularity can be reached to 1μm

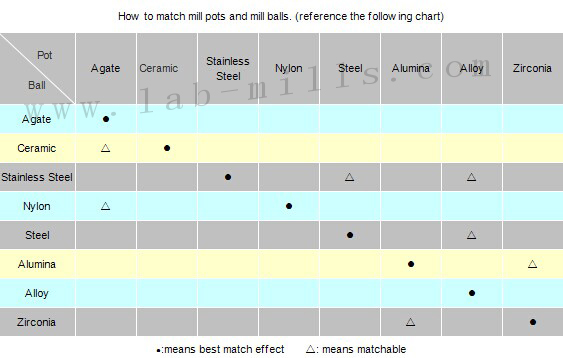

 Mill Jars and Mill Balls

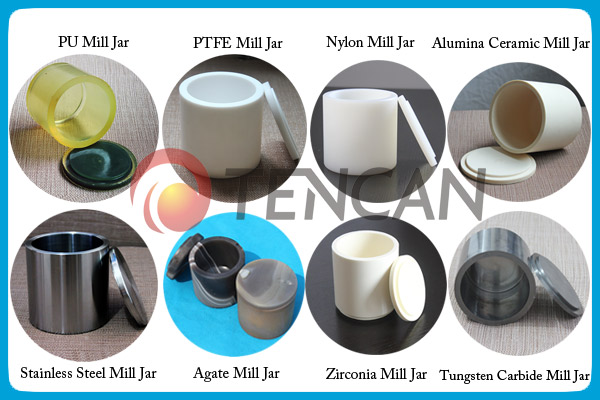

We provide all kinds of mill pots in any matched size, which can be made of agate, alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

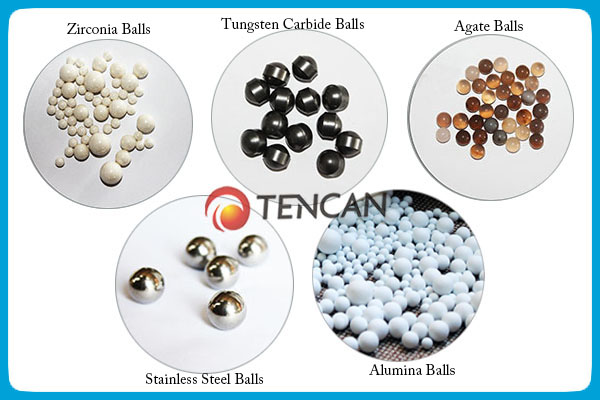

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
