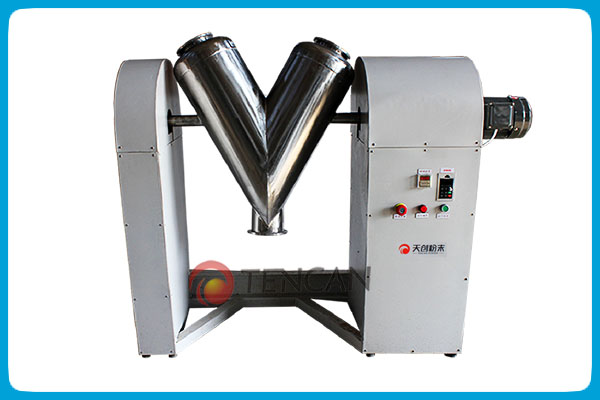

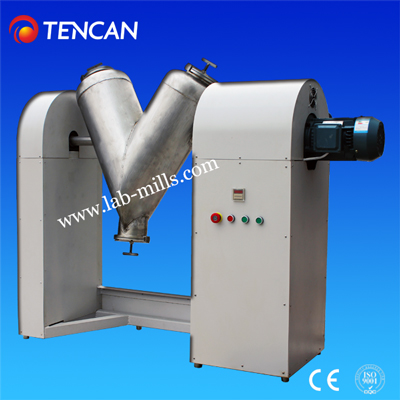

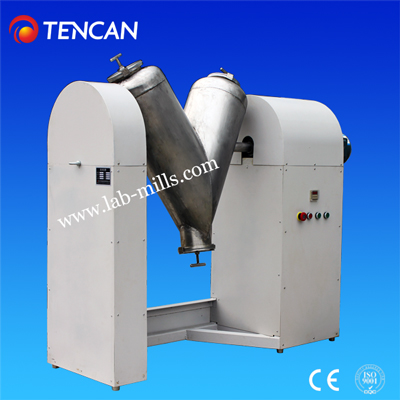

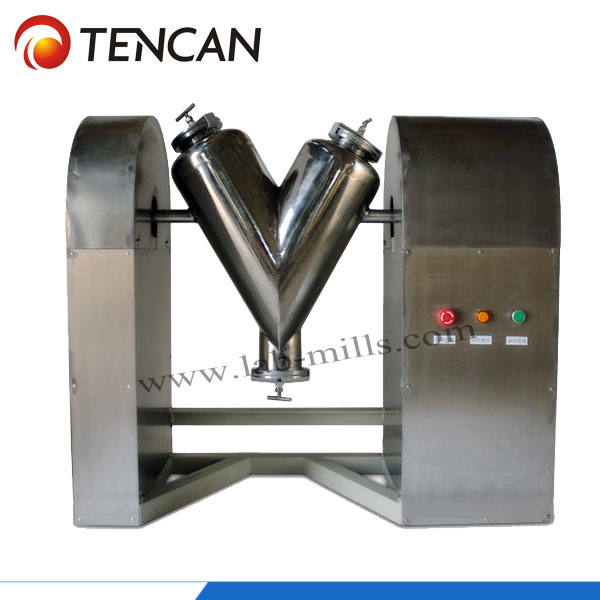

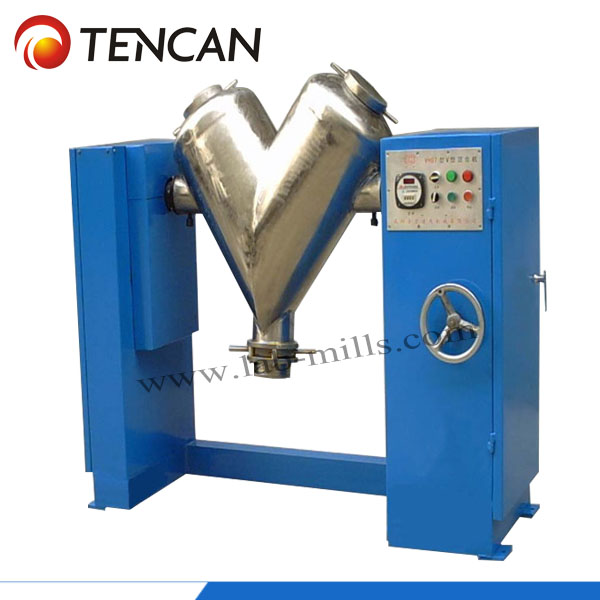

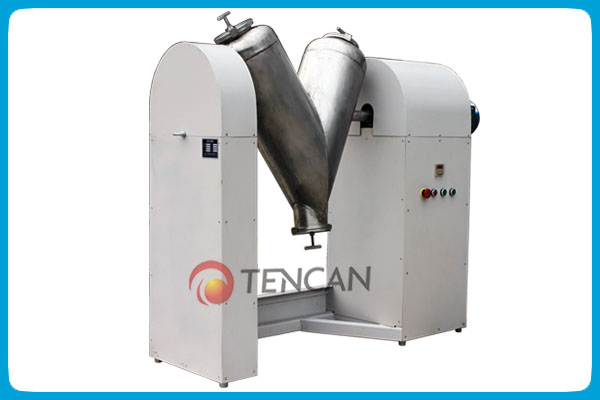

Lab V-Type Mixer

Model No.:V-20
Brand:TENCAN
Applications:V-type mixer is applied to industries of pharmacy, food, chemical engineering, metallurgy, electron, which need to mix two or more kinds of dry powder and particles. With such a special structure of V-type mixing tank, materials inside are turning around repeatedly to achieve uniform mixing. The machine has many features such as no dead angle, high speed, short mixing time, uniform mixing.

Share With:

(※ Click this button to inquiry)

Overview
Working Principle
Feature
Technical Parameter
Accessory

Overview
V-type mixer machine is suitable for pharmacy,food,chemical, metallurgy,electronics and other industries, used for mixing the dry granule materials. The machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users’ demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water.

Parameters of V-type Mixer Machine
Model No.	Rotation Speed (r/min)±2	Fix Speed (r/min)±2	Motor (KW)	Grade of Motor	Power Supply	Capacity (L)	Dimension (MM)	Reference Weight (KG)
V-5	10-50	50	0.37-B5	4	single-prase 220V	2.5	1060410890	78
V-10	10-50	50	0.37-B5			5	1060410890	82
V-20	8-34	34	0.75-B5			10	1360480980	139
V-50	8-34	34	1.5-B5			25	16805101270	200
V-100	8-34	34	2.2-B5		three-phrase 380V	50	15704751500	280
V-200	5-24	24	3-B5			100	19807701680	379
V-300	5-20	20	4-B5			150	20008001800	—
V-400	4-12	12	5.5-B5			200	230010002000	—
V-500	4-12	12	7.5-B5			250	312018502130	—
