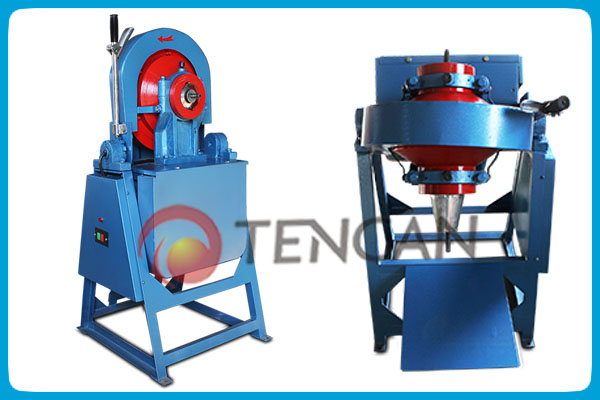

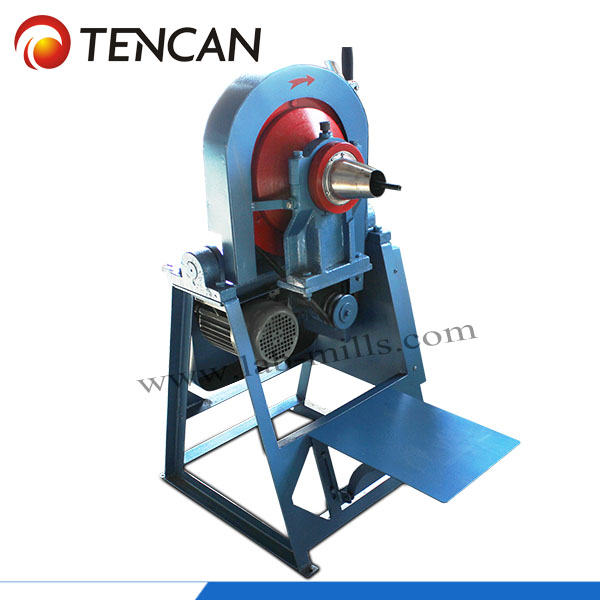

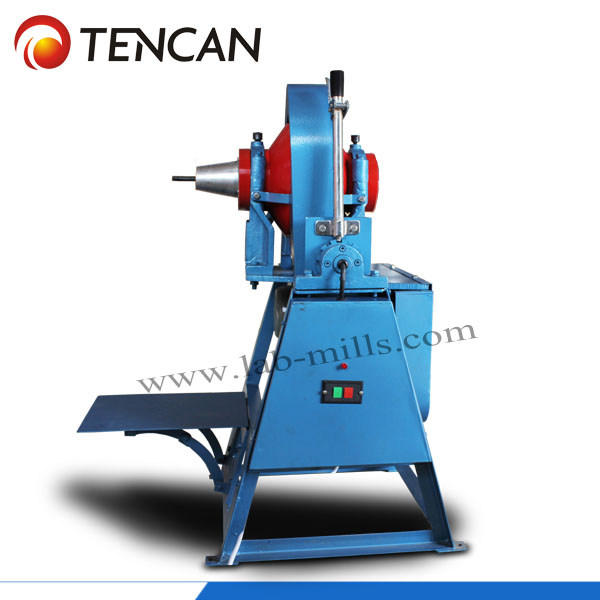

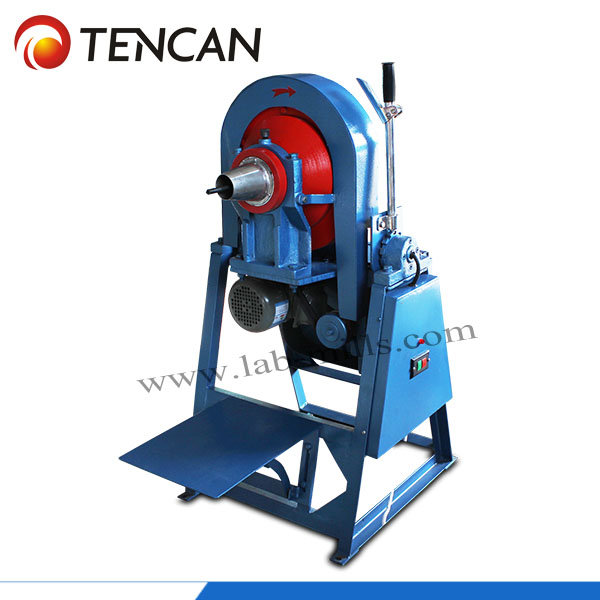

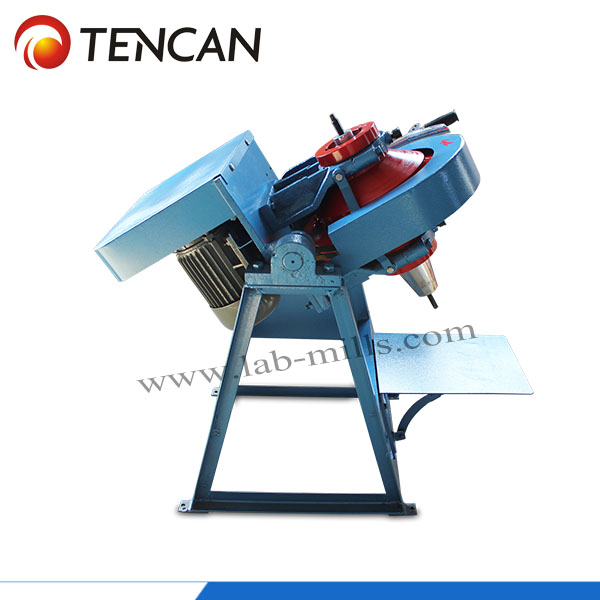

Lab Rod Mill

  • Model No.:XMBΦ160×200
  • Brand:TENCAN
  • Applications:Lab rod mill is applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, building materials, chemical, light, coal, water conservancy, electric power, agricultural and geological industries.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Laboratory Rod Mill is a lab grinding equipment for wet or dry grinding of ore. It is applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, building material, chemical, light, coal, water conservancy, electric power, agricultural and geological industries. The mill medium is stainless steel bar for uniform granularity with high efficiency.



1.Replaced the bar with stainless steel balls so the machine can be used as lab ball mill.
2.Large capacity.
3.Uniform granularity when bar grinding.
4.Fine grinding for wet or dry materials.
5.Menu display on LCD screen.
6.Optional set for grinding time.
7.Simple electric control device for the input or out-put materials.
Parameter of Lab Rod Mill
Model XMBΦ160×200 XMBΦ210×240 XMBΦ240×300
Size of cylinder(mm)
(diameter×length)
160×200 210×240 240×300
Capacity(l) 4.05 7.5 13.59
Total volume(g) 350-800 550-1000 1100-5000
Feed size(mm) -2 -2 -3
Out-put granularity(mm) -0.074 -0.074 -0.074
Rotating speed(rpm) 120 110 96
Motor Power(kw) 0.25 0.55 0.75
rotating speed(rpm) 1400 1390 1390
Material of media steel rod Diameter (mm) 16 20 16 20 16 20
length(mm) 185 225 286
quality(pcs) 10 10 21 14 29 14
steel ball Diameter (mm) 20 25 30 20 25 30 20 25 30
quality(pcs) 100 26 5 136 52 29 290 115 37
Dimension(mm) 1055×650 ×1180 1055×650 ×1180 1055×650×1180
Weight(kg) 175 210 226
