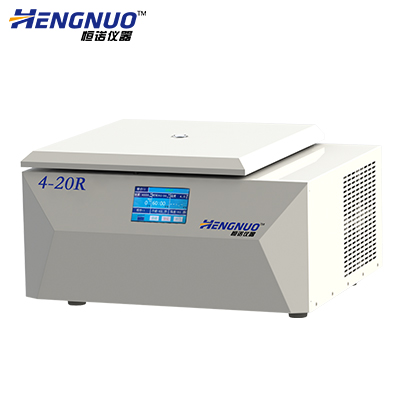

High and Low Speed Universal Centrifuge 4-20N/4-20R

  • Product Name:High and Low Speed Universal Centrifuge
  • Model No.:4-20N/4-20R
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Product Introduction

1. High and low speed universal centrifuge is equipped with a variety of rotors and tube racks, which has centrifugation with large capacity and high speed in multiple utilization.

2. Using New type composite material for angle rotor, the instrument has advantages of super light, high strength, slow heat conduction, strong corrosion resistance, fast speed up and down.

3. Microcomputer control, AC variable frequency motor drive, stable and quiet operation.

4. Large LCD displays parameters such as speed, centrifugal force, temperature and time in real time, and you can change parameters at any time during operation without shutdown.

5. 10 gears for speed acceleration and deceleration control, free stop time of 9 gears can be up to more than 540s, which meets requirements of special separated articles

6. It is displayed in second when the countdown time is less than one minute.

7. Electronic door lock, all-steel inner cavity protection cover, protection set for over speed and over temperature, ensure safety of people and instrument.

8. Suitable for separating and purifying of radioimmunity, biochemistry, bio-pharmaceuticals, and blood products.








1. High and low speed universal centrifuge is equipped with a variety of rotors and tube racks, which has centrifugation with large capacity and high speed in multiple utilization.

2. Using New type composite material for angle rotor, the instrument has advantages of super light, high strength, slow heat conduction, strong corrosion resistance, fast speed up and down.

3. Microcomputer control, AC variable frequency motor drive, stable and quiet operation.

4. Large LCD displays parameters such as speed, centrifugal force, temperature and time in real time, and you can change parameters at any time during operation without shutdown.

5. 10 gears for speed acceleration and deceleration control, free stop time of 9 gears can be up to more than 540s, which meets requirements of special separated articles

6. It is displayed in second when the countdown time is less than one minute.

7. Electronic door lock, all-steel inner cavity protection cover, protection set for over speed and over temperature, ensure safety of people and instrument.

8. Suitable for separating and purifying of radioimmunity, biochemistry, bio-pharmaceuticals, and blood products.


Technical Parameters of High and Low Speed Universal Centrifuge 4-20N/4-20R

Model No.

4-20NNormal Temperature

4-20RRefrigerated

Max Rotation Speed

21000rpm

Max Relative Centrifugal Force

29200×g

Max Capacity

4×750ml

Timing Range

1min99min59s

Total Noise

< 65dBA

Total Power

800W

1500W

Diameter of Centrifugal Cavity

4200mm

420mm

Compressor Unit

/

Fluorine free refrigeration of imported compressor unit

Temperature Setting Range

/

-20℃40℃

Temperature Accuracy

/

±1.0℃

Power Supply

AC 220±22V 50Hz 10A

AC 220±22V 50Hz 16A

Outline Dimensions

(L*W*H)

545×468×350(mm)

640×73430(mm)

Net Weight

50kg

95kg

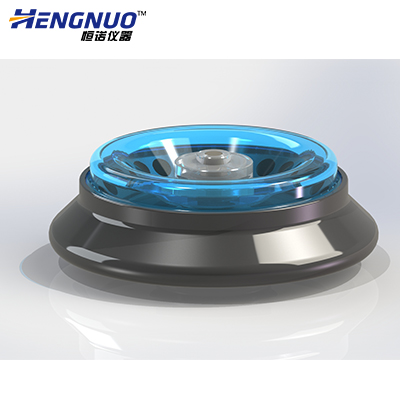

 Applicable Rotors for 4-20N/4-20R

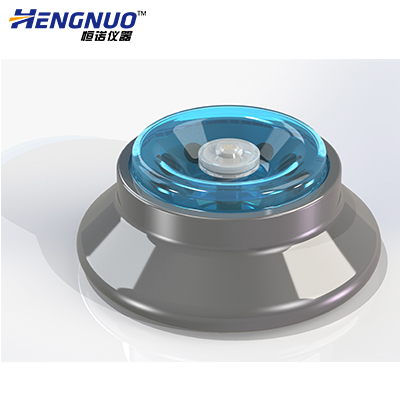

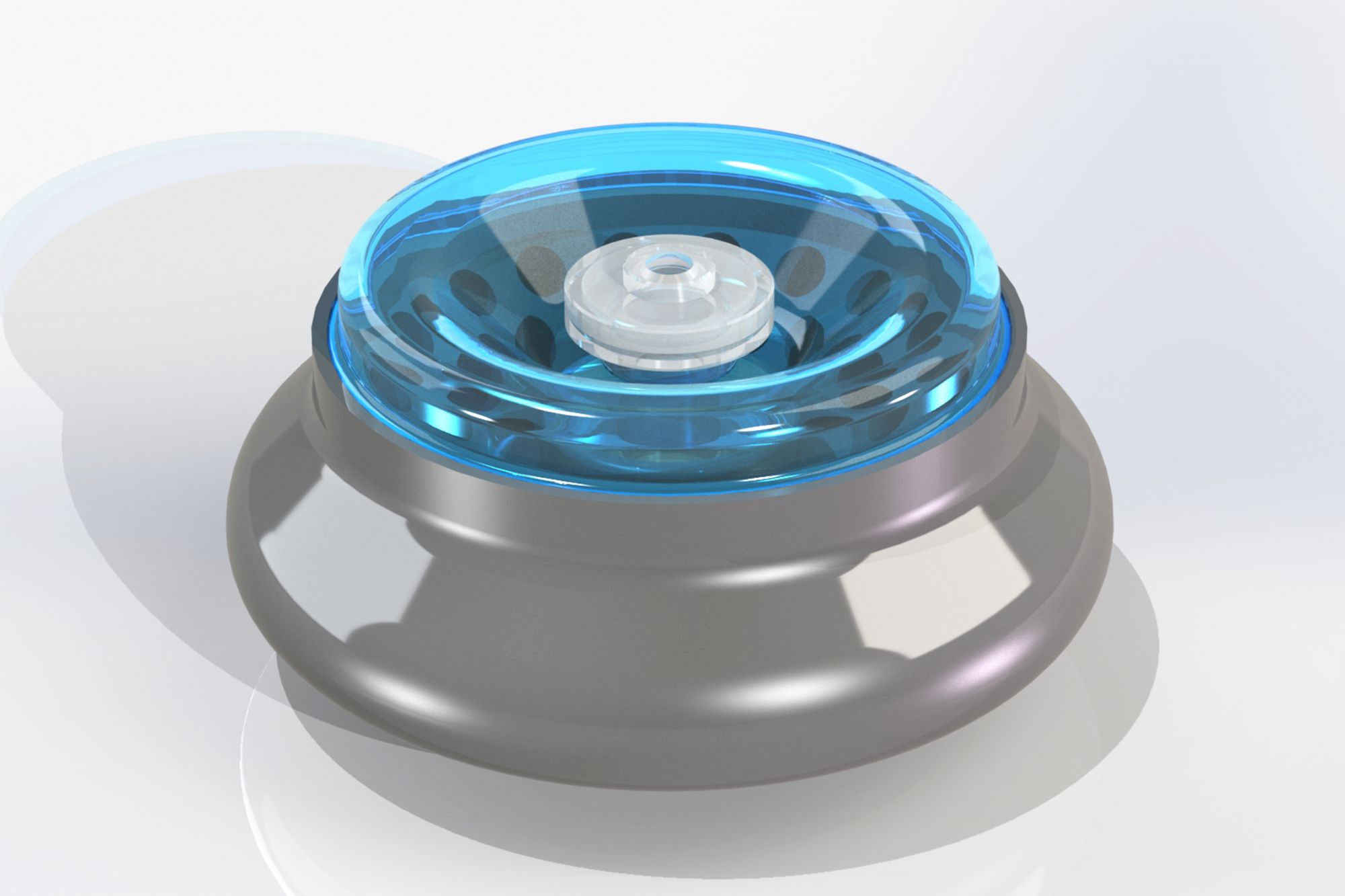

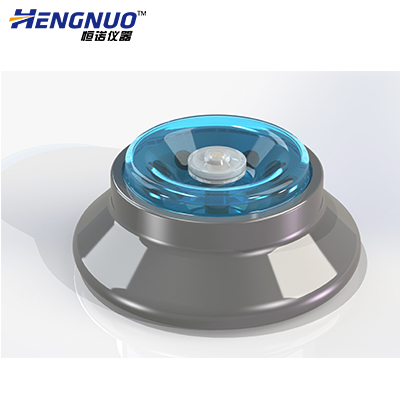

#1 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 12*1.5ml

Max speed: 21000rpm

Max relative centrifugal force:29200*g



#2 Angle Rotor

Single tube capacity:5ml

Total capacity: 10*5ml

Max capacity:16500rpm

Max relative centrifugal force:18365*g





#3 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 24*1.5ml

Max speed: 16500rpm

Max. RCF: 24890*g





#4 Angle Rotor

Single tube capacity: 10ml

Total capacity: 12*10ml

Max speed: 15000rpm

Max. RCF: 23120*g

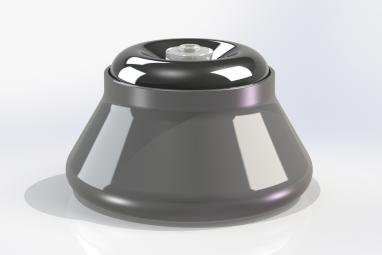

#5 Angle Rotor

Single tube capacity: 15ml

Total capacity: 12*15ml

Max speed: 12000rpm

Max. RCF: 15455*g



#6 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 36*1.5ml

Max speed: 15000rpm

Max. RCF: 20753*g




#7 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max speed: 12000rpm

Max. RCF: 15805*g



#8 Angle Rotor

Single tube capacity: 50ml cone

Total capacity: 6*50ml cone

Max speed: 11000rpm

Max. RCF: 13274*g






#9 Angle Rotor

Single tube capacity: 100ml

Total capacity: 4*100ml

Max speed: 11000rpm

Max. RCF: 13000*g

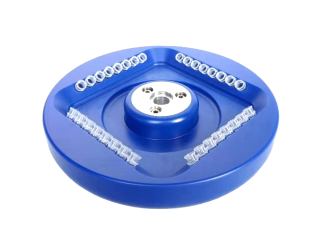

#10 PCR Rotor

Single tube capacity: 0.2ml PCR tube

Total capacity: 4*8*0.2ml PCR tube

Max speed: 15000rpm

Max. RCF: 17357*g



#11 Angle Rotor

Single tube capacity: 0.25-1ml blood capillary

Total capacity: 24*(0.25-1ml)

Max speed: 12000rpm

Max. RCF: 10142*g



#12 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 48*1.5ml

Max speed: 12000rpm

Max. RCF: 14890*g





#13 Angle Rotor

Single tube capacity: 250ml

Total capacity: 4*250ml

Max speed: 10000rpm

Max. RCF: 13000*g (Only 4-20R)

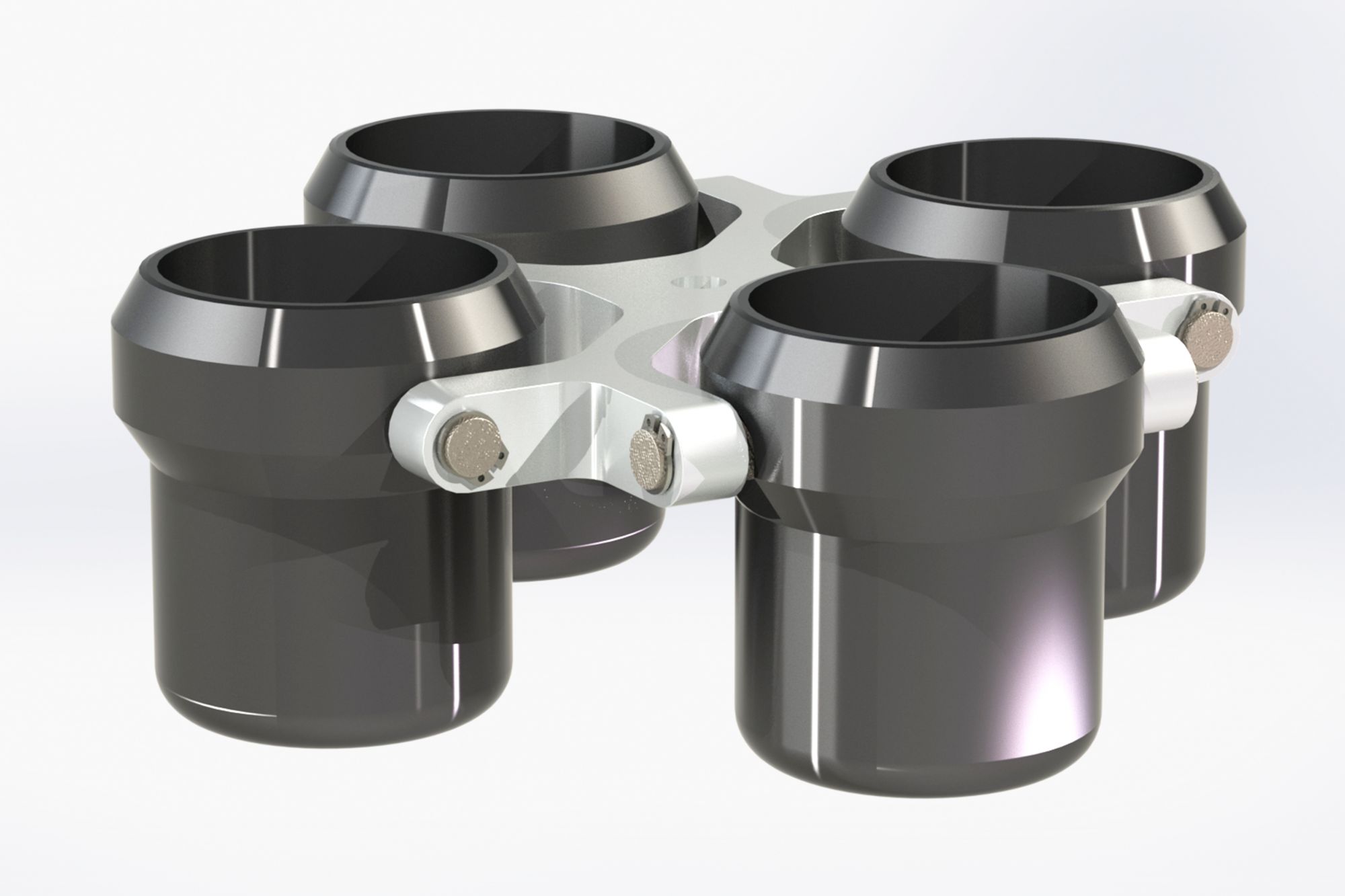

#14 Horizontal Rotor

Single tube capacity:750ml

Total capacity: 4*750ml

Max speed: 4000rpm

Max. RCF: 3580*g





#15 Enzyme plate rotor



Single tube capacity: 96/384

hole plate

Total capacity: 4*2*96 hole plate

Max speed: 4000rpm

Max. RCF: 3550*g





#16 Horizontal Rotor

Single tube capacity: 500ml

Total capacity: 4*500ml

Max speed: 4000rpm

Max. RCF: 3580*g



#17 Horizontal Rotor

Single tube capacity: 5ml/7ml

Total capacity: 96*5ml

Max. Speed: 4000rpm

Max. RCF: 3500*g





#18 Horizontal uncap Rotor

Single tube capacity:2ml/5ml/7ml

Blood collection tube

Total capacity: 96*5ml

Max speed: 4000rpm

Max. RCF: 3580*g

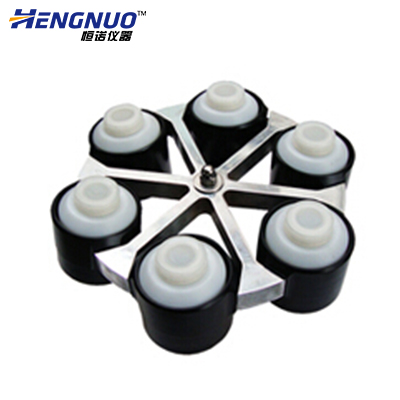

#19 Horizontal Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max speed: 4000rpm

Max. RCF: 3500*g





#20 Horizontal Rotor

Single tube capacity: 250ml

Total capacity: 4*250ml

Max speed: 4000rpm

Max. RCF: 3500*g





#21 Horizontal Rotor

Single tube capacity: 10ml/15ml

Total capacity: 32*10ml/15ml

Max speed: 4000rpm

Max. RCF: 2810*g



#22 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 8*50ml/100ml

Max speed: 4000rpm

Max. RCF: 2810*g





#23 Horizontal Rotor

Single tube capacity: 5ml/7ml

Total capacity: 48/64/72*5ml

Max speed: 4000rpm

Max. RCF: 2810*g

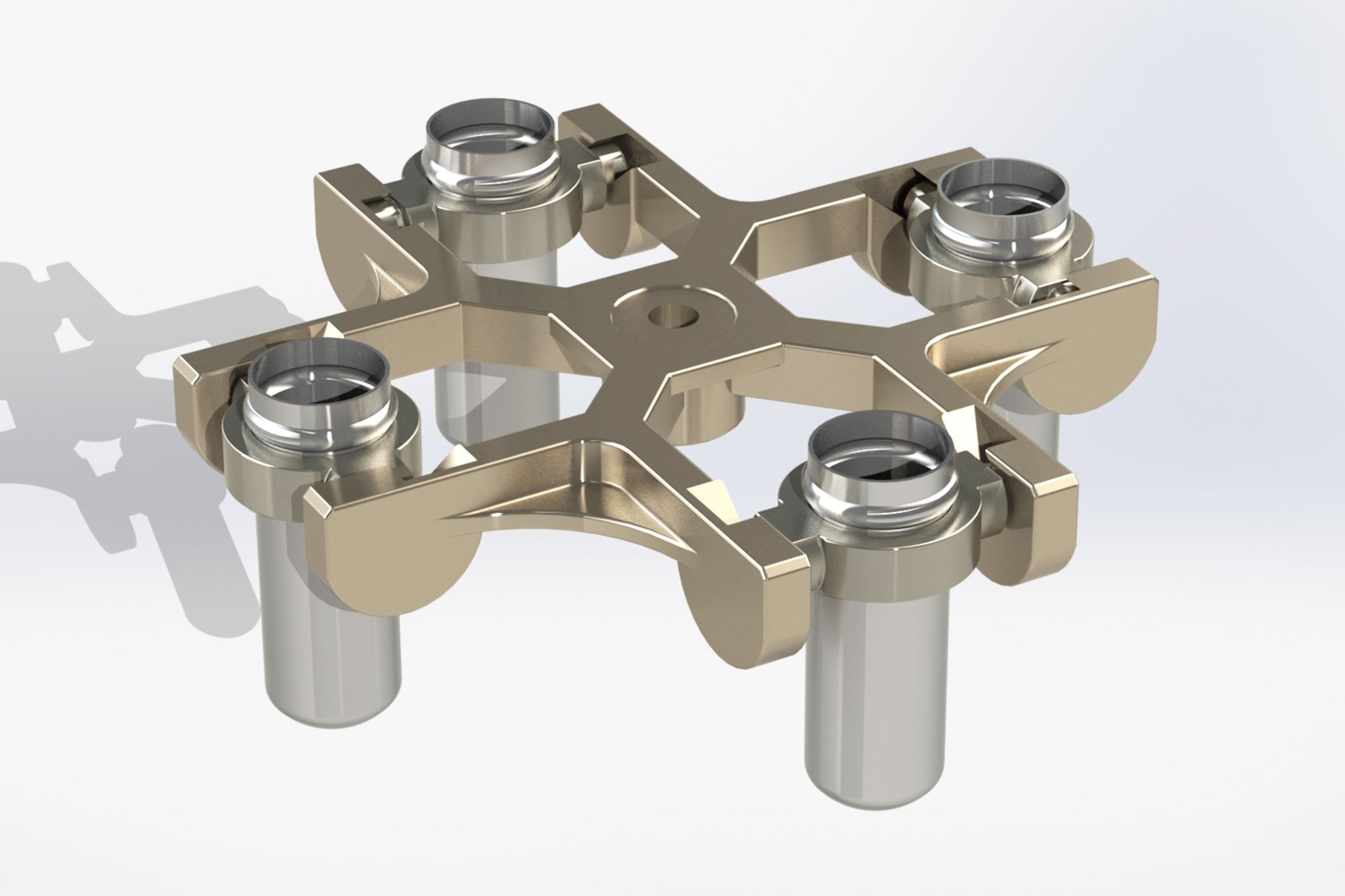

#24 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 4*50ml/100ml

Max speed: 5000rpm

Max. RCF: 4390*g





#25 Enzyme plate rotor

Single capacity: 96/384 hole plate

Total capacity: 2*2*96 hole plate

Max speed: 4000rpm

Max. RCF: 2300*g

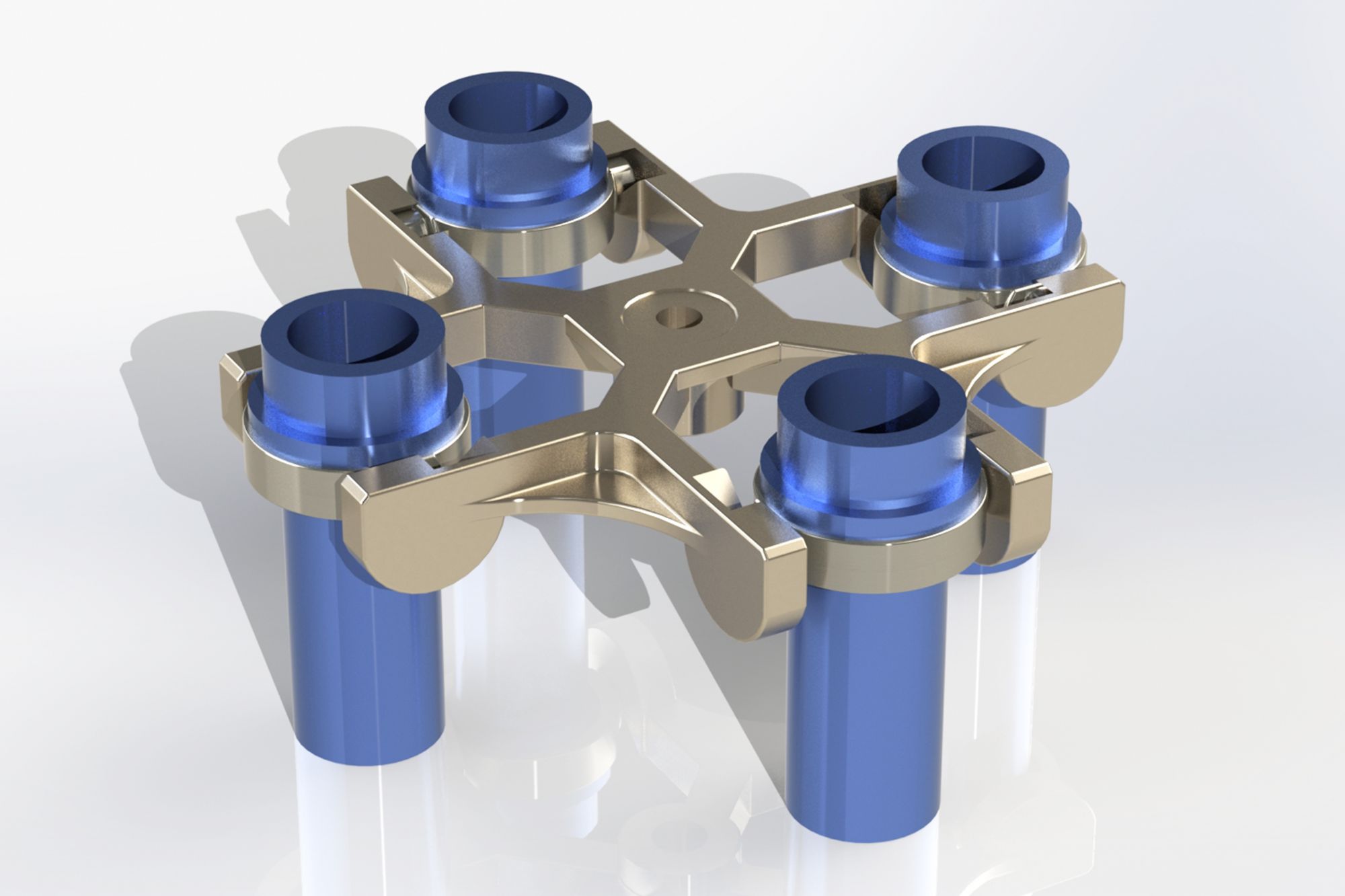

#26 PRP Rotor

Single tube capacity: 50ml injector

Total capacity: 4*50ml

10ml/20ml Adapter optional

Max speed: 5000rpm

Max. RCF: 4390*g



#27 Uncap Rotor

Single tube capacity: 2ml/5ml/7ml

Blood collection tube

(only 2ml uncap)

Total capacity: 48*5ml

Max speed: 4000rpm

Max. RCF: 3500*g
