Liner Roll Ball Mill

  • Model No.:QM-50L
  • Brand:TENCAN
  • Applications:This machine is widely applied to the industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

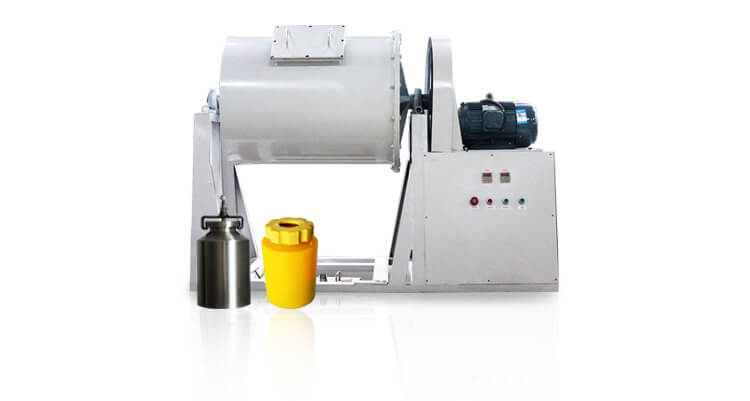

Light roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground into micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.




When roll mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.




Feature

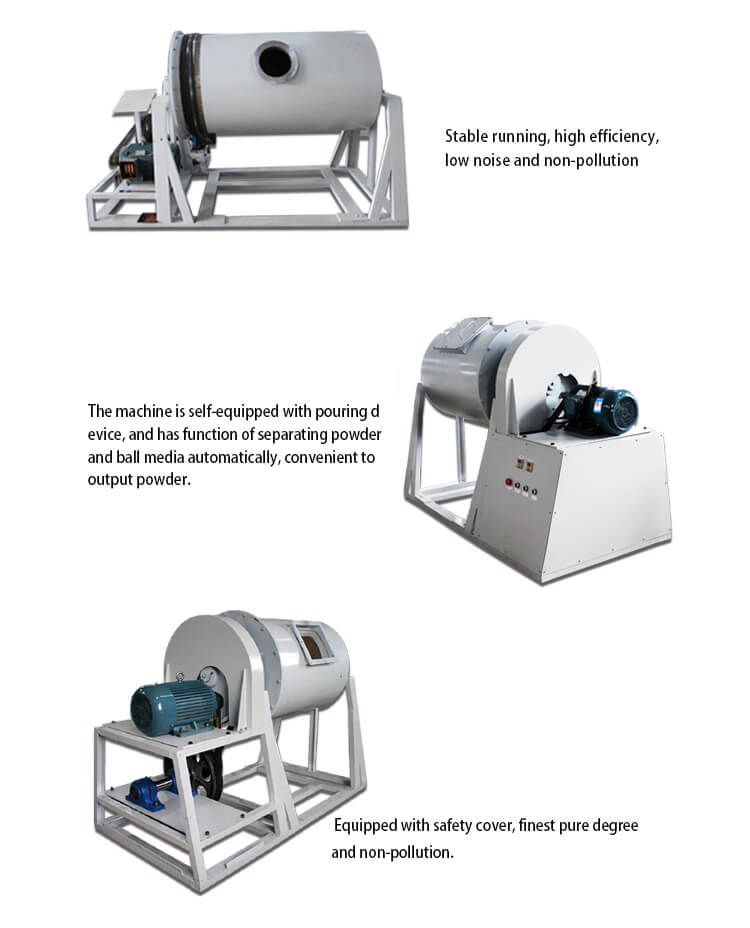

1. Stable running, high efficiency, low noise and non-pollution
2. All kinds of hard materials can be ground with dry or wet grinding method; the machine is suitable for rough and fine grinding or can be also applied to mixing materials.
3. The machine is self-equipped with pouring device, and has function of separating powder and ball media automatically, convenient to output powder.
4. Equipped with safety cover, finest pure degree and non-pollution.
5. Anti-abrasion, high efficiency of grinding.

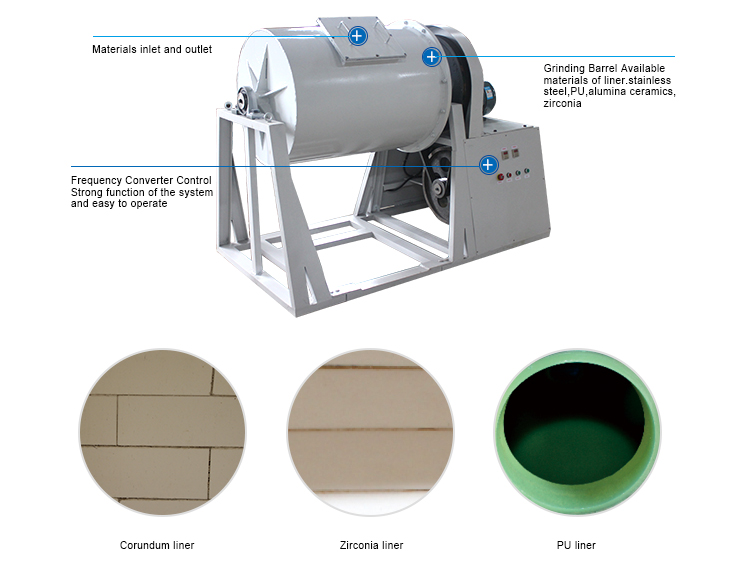

6. A variety of liner jars in different materials can be selected such as alloyed steel, stainless steel, abrasion-resisting polyurethane, corundum ceramic, zirconia, and etc. Models of 20-2000L volume are available for customers’ needs

Application Cases of Planetary Ball Mill


Application Cases of Planetary Ball Mill

Main Parameters of Linner Roll Ball Mill
Model No. Volume
(L)
Rotate Speed
(rpm)
Material Capacity
(L)
Power Supply Available Jars Feed Size
(mm)
Output Granularity
(mesh)
Adjustable Mode of Rotate Speed
QM-30L 30 20~60rpm 10.5 0.75KW/220V Carbon Steel,
Stainless Steel,
Nylon Liner,
Alumina Ceramic Linner,
PU(polyurethane) Linner,
PTFE Linner.
≤10 ≥300 Frequency adjuster
or Fixed setting for buyer's options
QM-50L 50 20~50rpm 17.5 1.5KW/220V ≤10 ≥300
QM-100L 100 20~45rpm 35 2.2KW/380V ≤20 ≥300
QM-200L 200 20~40rpm 70 4KW/380V ≤20 ≥300
QM-300L 300 20~38rpm 105 5.5KW/380V ≤20 ≥300
QM-500L 500 20~36rpm 175 7.5KW/380V ≤20 ≥300
QM-1000L 1000 20~34rpm 350 11KW/380V ≤30 ≥300
QM-2000L 2000 20~34rpm 700 22KW/380V ≤30 ≥300
Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.


Suggestions for Matching Solution About Mill Jars & Materials


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Suggestions for Matching Solution About Grinding Medium & Materials
