Small Low Speed Centrifuge 2-4N (Normal Temperature)

  • Product Name:Small Low Speed Centrifuge
  • Model No.:2-4N
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

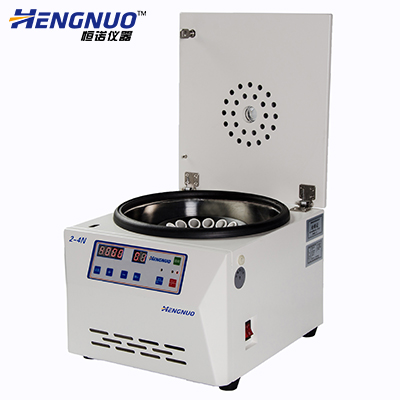

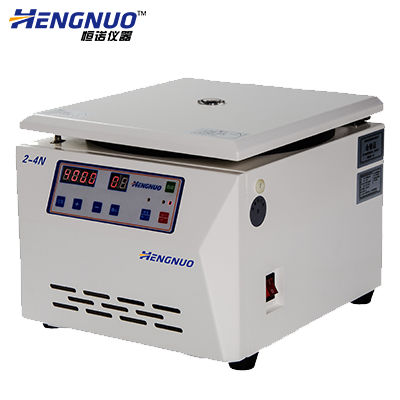

 Small Low Speed Centrifuge

Model No. 2-4N (Normal Temperature)

Product Introduction

1. Fully steel structure, stainless steel centrifugal cavity.

2.Microcomputer controlled, DC brushless motor drive, stable operation and quiet.

3. Digital tube / LCD screen display at buyers option.

4. Special shock absorber with automatic balance function.

5. Electronic door lock for enhancing security

6. Fault self-diagnosis system, which detects faults such as over speed and lost speed.
It
has functions of balance protection
and door cover protection, improving safety of the instrument

7. It can be equipped with 10ml / 15ml / 20ml / 50ml low-speed angle rotors, It is a necessary
experimental instrument for hospitals
and research institutes at all levels.



 Small Low Speed Centrifuge

Model No. 2-4N (Normal Temperature)



Product Features

1. Fully steel structure, stainless steel centrifugal cavity.

2. Microcomputer controlled, DC brushless motor drive, stable operation and quiet.

3. Digital tube / LCD screen display at buyers option.

4. Special shock absorber with automatic balance function.

5. Electronic door lock for enhancing security

6. Fault self-diagnosis system, which detects faults such as over speed and lost speed. It has functions of balance protection

and door cover protection, improving safety of the instrument

7. It can be equipped with 10ml / 15ml / 20ml / 50ml low-speed angle rotors, It is a necessary experimental instrument for hospitals

and research institutes at all levels.


Technical Parameters of 2-4N

Model No.

2-4N (Normal Temperature)

Max Rotation Speed

4000rpm

Power Supply

AC 220V±22V,50/60Hz,5A

Max Relative Centrifugal Force

2250×g

Total Power

100W

Maximum Capacity

6×50 ml

Total Noise

< 62dB(A)

Time Setting Range

1min~99min



Diameter of Centrifugal Cavity

280mm

Speed Accuracy

±20r/min

Dimensions (L*W*H)

380×320×270 (mm)



Net Weight

16kgs



Packing Dimensions

(L*W*H)

450×390×330 (mm)

 Applicable Rotors for 2-4N

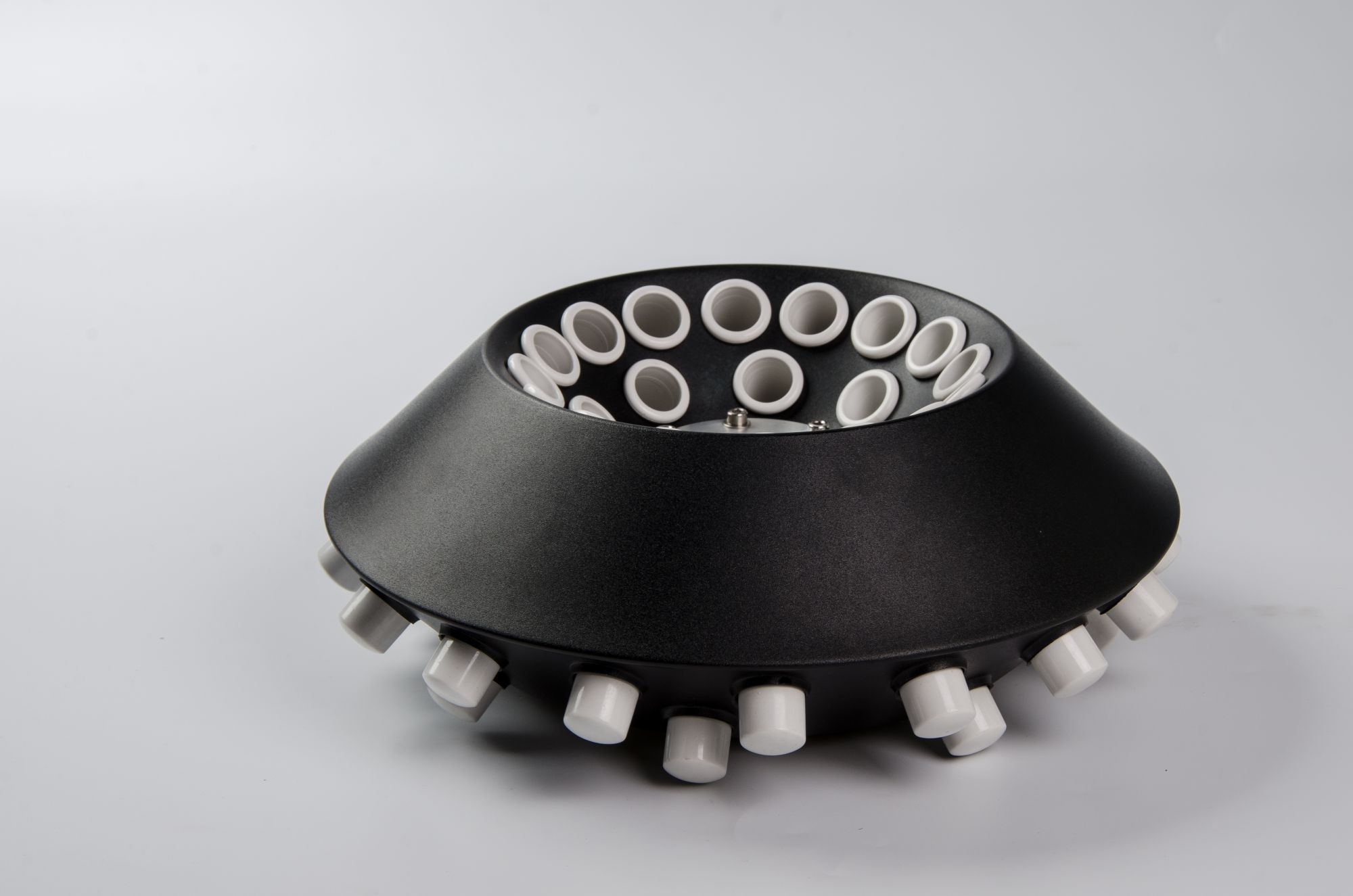

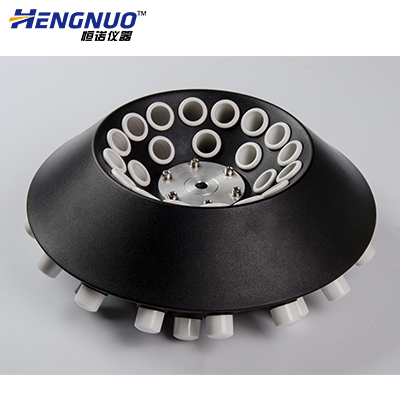

#1 Angle Rotor

Single Tube Capacity:10ml

Total Capacity: 24X10ml

Max speed: 4000rpm

Max Relative Centrifugal Force: 2250*g

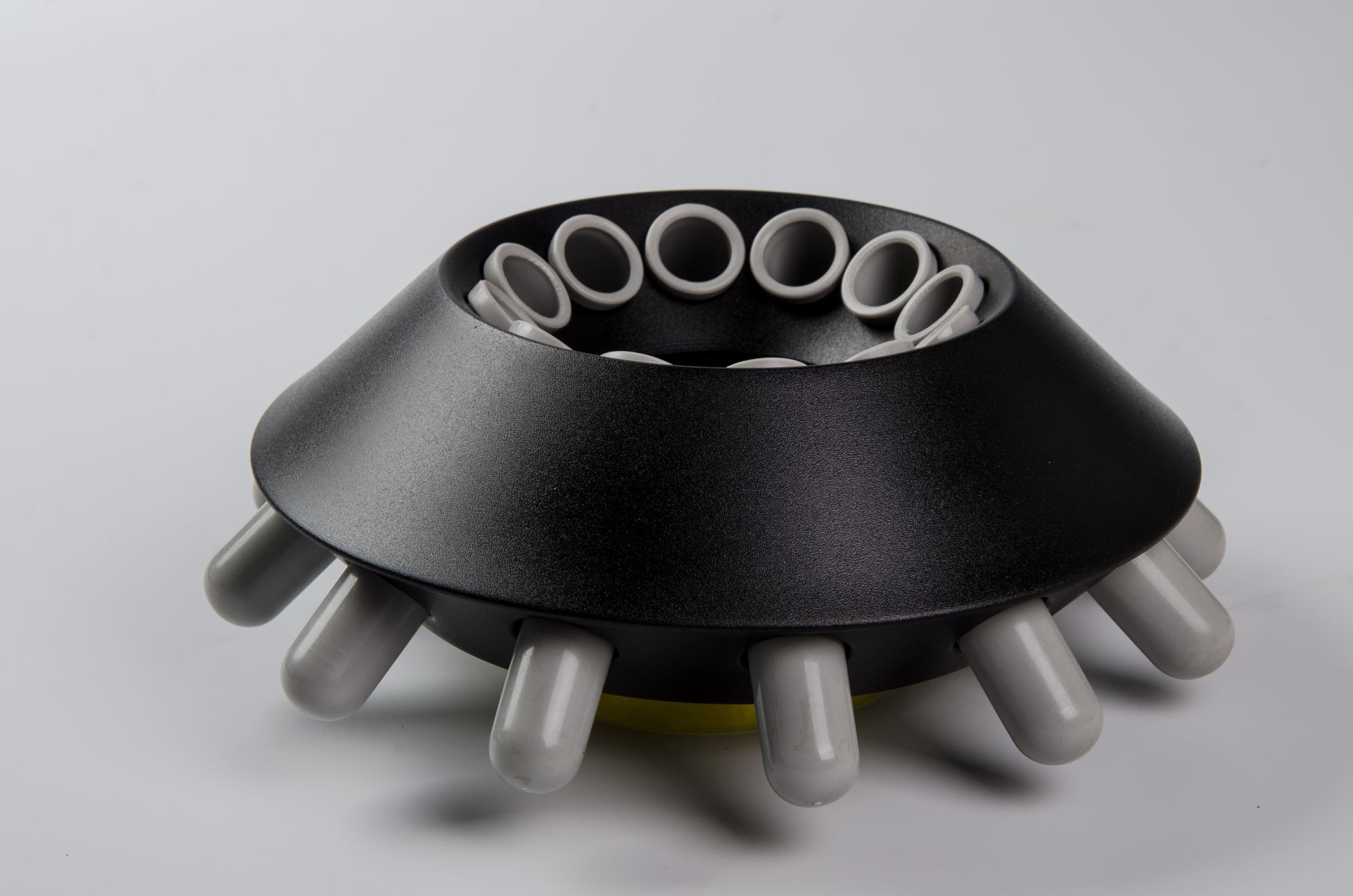

#2 Angle Rotor

Single tube capacity:10ml/15ml

Total capacity:12*(10ml/15ml)

Max speed:4000rpm

Max Relative Centrifugal Force: 2250*g

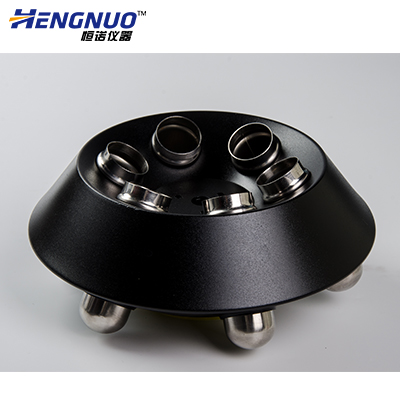

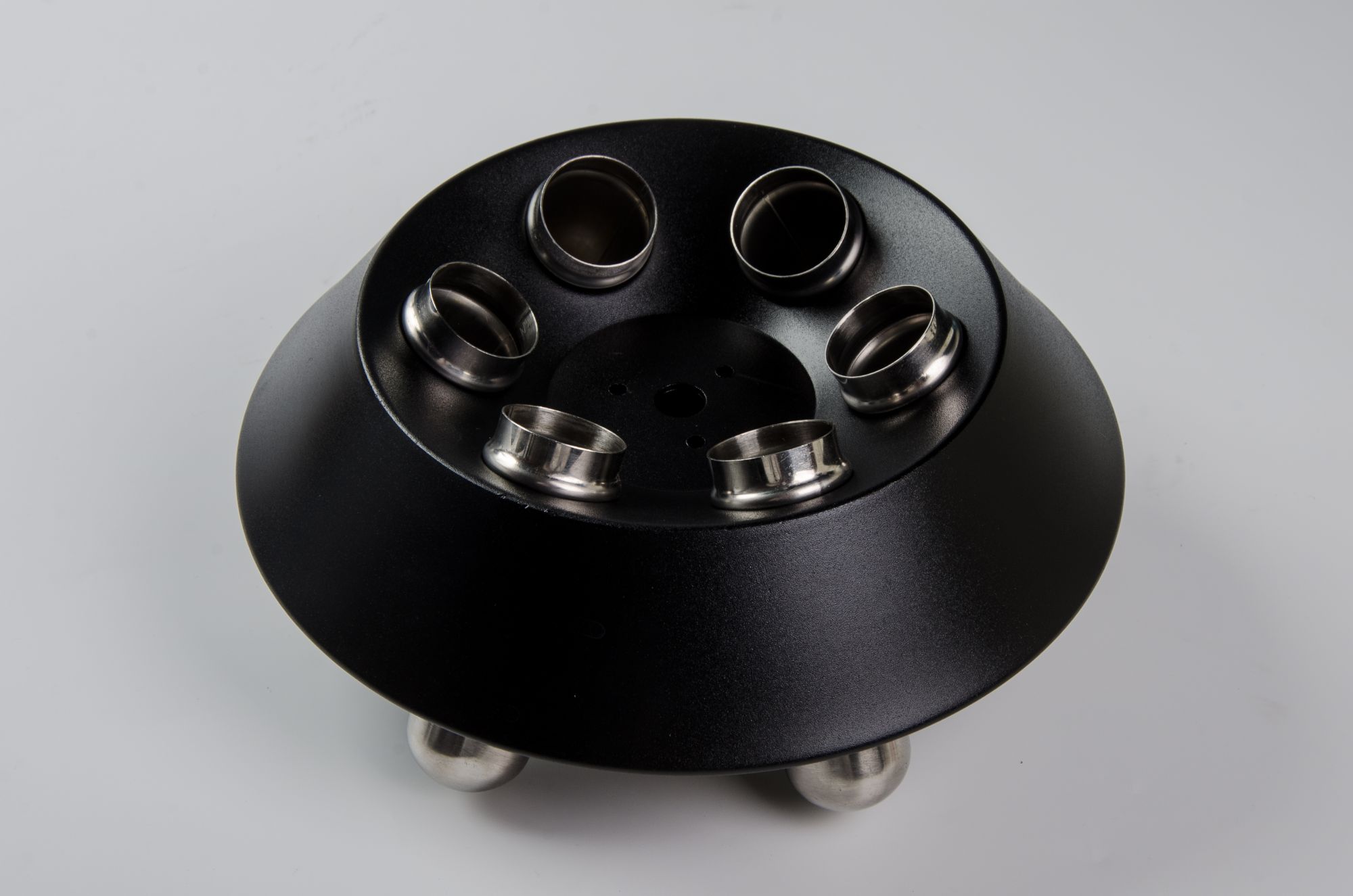

#3 Angle Rotor

Single tube capacity:50ml

Total capacity:6×50ml

Max speed:4000rpm

Max Relative Centrifugal Force: 2250*g





#4 Angle Rotor

Single tube capacity:20ml

Total capacity:12×20ml

Max speed:4000rpm

Max Relative Centrifugal Force: 2250*g

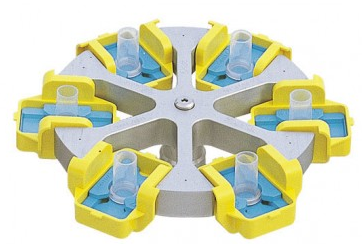

#5 Cell Smear Rotor

Rotor Capacity: 6 Cards

Max speed:4000rpm

Max Relative Centrifugal Force: 2170*g

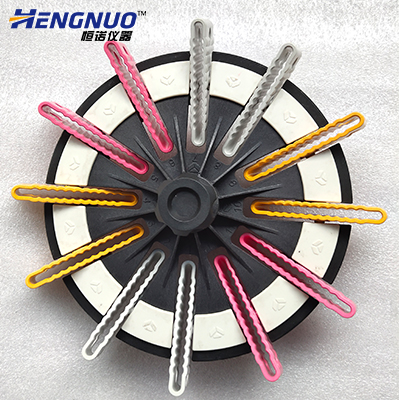

#6 Blood type rotor

Rotor capacity: 12/24 cards

Microcolumn gel number

Max speed:3000rpm

Max Relative Centrifugal Force: 870*g
