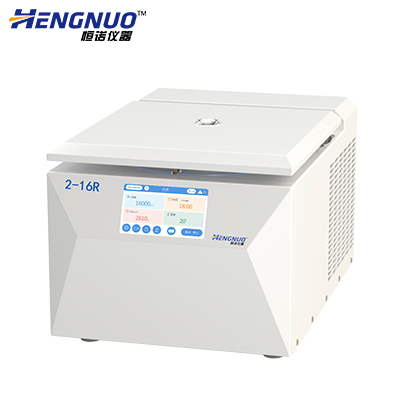

Bench-top High Speed Refrigerated Centrifuge 2-16R

  • Product Name::Bench-top High Speed Refrigerated Centrifuge
  • Model No.:2-16R
  • Brand:HENGNUO
  • Application Fields:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Product Introduction of Bench-top High Speed Refrigerated Centrifuge

1.2-16R Bench-top high speed refrigerated centrifuge is widely used in molecular biology, molecular chemistry and PCR laboratories. It can be equipped with a variety of capacity rotors at high cost performance ratio.
2.All rotors are made of new composite material, which has advantages of super light, high strength, slow heat conduction, strong corrosion resistance, fast speed up and down.
3.AC variable frequency motor drive, stable and quiet operation, no maintenance is required
4.Large screen color display, beautiful appearance, touch screen control, simple and convenient to operate.
5.15 gear positions for speed up and down control, countdown less than one minute is displayed in unit of second, which meets the user's special requirements of speed down.
6.It is adopted with electronic door lock, stainless steel inner cavity prevents rust, double layers in steel structure ensure to protect user's operation safety.
7.When the program is not running, parameters can be modified randomly without shutdown.
8.Equipped with over speed, over temperature, unbalanced and door cover protection, which ensure personal and instrument safety.
9.Adopted importing high efficiency refrigeration unit, it has advantages of environmental protection, temperature control accuracy, fast refrigerating.
10.Machine cover has speed measuring hole, which is convenient to observe and monitor rotor speed and running condition.
11.Original foaming, good heat preservation effect, higher temperature control accuracy and fast refrigeration speed
12.Unique temperature control and motor control switch, you can switch randomly between normal and freezing temperature.





Product Introduction:

1. 2-16R Bench-top high speed refrigerated centrifuge is widely used in molecular biology, molecular chemistry and PCR laboratories. It can be equipped with a variety of capacity rotors at high cost performance ratio.

2. All rotors are made of new composite material, which has advantages of super light, high strength, slow heat conduction, strong corrosion resistance, fast speed up and down.

3. AC variable frequency motor drive, stable and quiet operation, no maintenance is required

4. Large screen color display, beautiful appearance, touch screen control, simple and convenient to operate.

5. 15 gear positions for speed up and down control, countdown less than one minute is displayed in unit of second, which meets the user's special requirements of speed down.

6. It is adopted with electronic door lock, stainless steel inner cavity prevents rust, double layers in steel structure ensure to protect user's operation safety.

7. When the program is not running, parameters can be modified randomly without shutdown.

8. Equipped with over speed, over temperature, unbalanced and door cover protection, which ensure personal and instrument safety.

9. Adopted importing high efficiency refrigeration unit, it has advantages of environmental protection, temperature control accuracy, fast refrigerating.

10. Machine cover has speed measuring hole, which is convenient to observe and monitor rotor speed and running condition.

11. Original foaming, good heat preservation effect, higher temperature control accuracy and fast refrigeration speed

12. Unique temperature control and motor control switch, you can switch randomly between normal and freezing temperature.





Model No.

2-16R (Refrigerated)

Max Rotation Speed

18500rpm

Power Supply

AC 220±22V 50Hz 10A

Max Relative Centrifugal Force

25250×g

Total Power

1200W

Max Capacity

6×50ml

Timing Range

0-99min59s

Temperature setting Range

-20℃~40℃



Motor



AC Variable Frequency Motor

Temperature Accuracy

±1.0℃

Outline Dimensions

(L*W*H)

610×450×340(mm)

Minimum Acceleration / Deceleration Time

20sec/25sec

Packing Dimensions

(L*W*H)

670×510×380(mm)

Speed Accuracy

±20r/min

Net Weight

75kgs

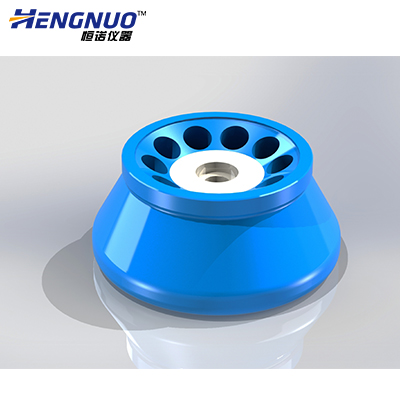

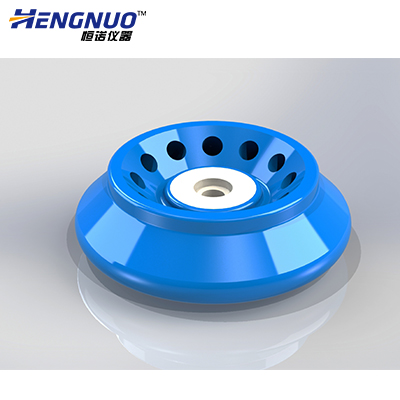

Applicable Rotors for 2-16R




#1 Angle Rotor

Single tube capacity:1.5ml

Total capacity: 12*1.5ml

Max speed: 16000rpm

Max relative centrifugal force: 22000*g





#2 Angle Rotor

Single tube capacity: 5ml

Total capacity: 10*5ml

Max speed: 15000rpm

Max relative centrifugal force: 15300*g



#3 Angle Rotor

Single tube capacity:1.5ml

Total capacity: 24*1.5ml

Max speed: 14000rpm

Max relative centrifugal force: 18575*g



#4 Angle Rotor

Single tube capacity: 10ml

Total capacity: 12*10ml

Max speed: 13000rpm

Max relative centrifugal force: 17370*g



#5 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max speed: 12000rpm

Max relative centrifugal force: 15805*g




 Technical Parameters for 2-16R

Model No.

2-16R (Refrigerated)

Max Rotation Speed

18500rpm

Power Supply

AC 220±22V 50Hz 10A

Max Relative Centrifugal Force

25250×g

Total Power

1200W

Max Capacity

6×50ml

Timing Range

0-99min59s

Temperature setting Range

-20℃40℃



Motor



AC Variable Frequency Motor

Temperature Accuracy

±1.0℃

Outline Dimensions

(L*W*H)

6145340(mm)

Minimum Acceleration / Deceleration Time

20sec/25sec

Packing Dimensions

(L*W*H)

670×51380(mm)

Speed Accuracy

±20r/min

Net Weight

75kgs



Applicable Rotors for 2-16R





#1 Angle Rotor

Single tube capacity:1.5ml

Total capacity: 12*1.5ml

Max speed: 16000rpm

Max relative centrifugal force: 22000*g





#2 Angle Rotor

Single tube capacity: 5ml

Total capacity: 10*5ml

Max speed: 15000rpm

Max relative centrifugal force: 15300*g



  #3 Angle Rotor

Single tube capacity:1.5ml

Total capacity: 24*1.5ml

Max speed: 14000rpm

Max relative centrifugal force: 18575*g



#4 Angle Rotor

Single tube capacity: 10ml

Total capacity: 12*10ml

Max speed: 13000rpm

Max relative centrifugal force: 17370*g




#5 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max speed: 12000rpm

Max relative centrifugal force: 15805*g
