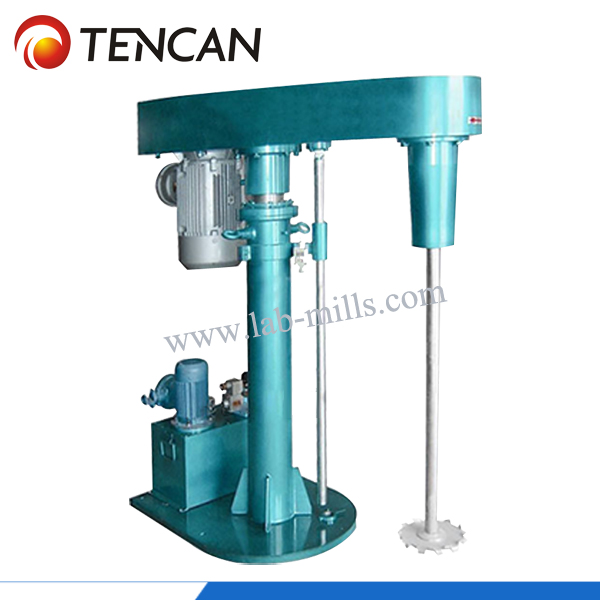

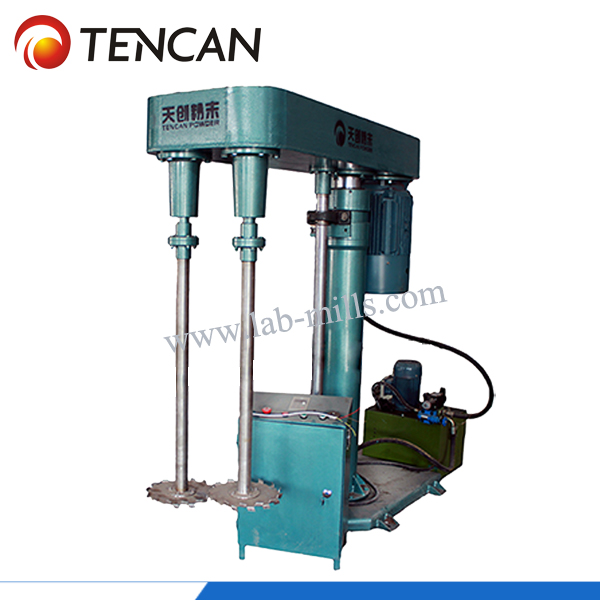

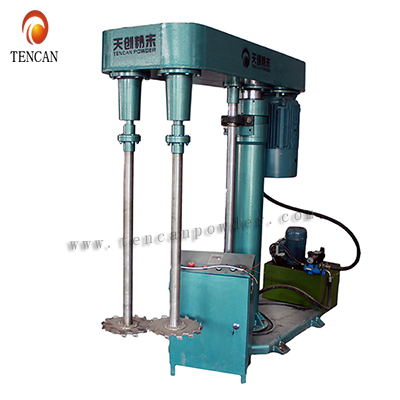

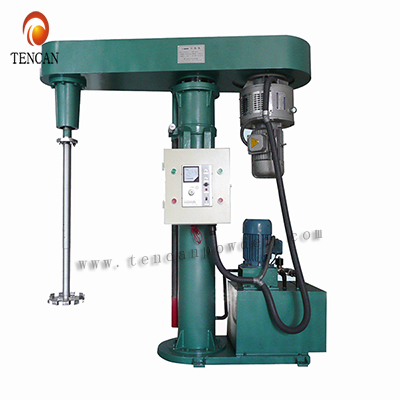

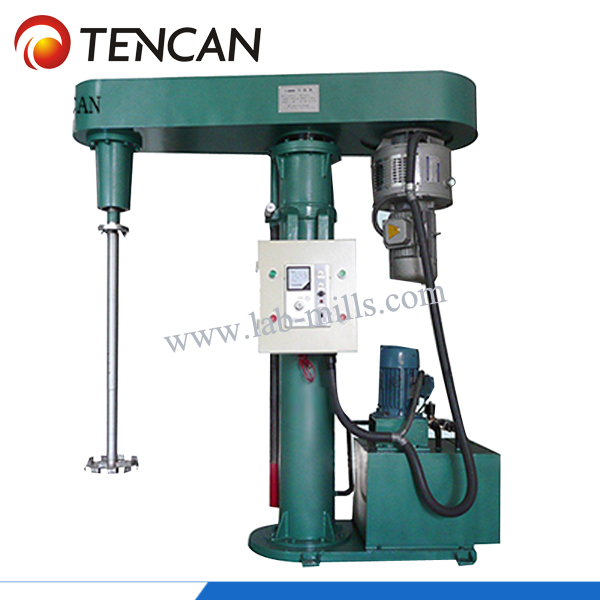

Large Disperser

  • Type:Large Disperser
  • Model Number:FS-5.5
  • Brand:TENCAN
  • Applications:large dispersing machine for liquid, mixing solids dispersion, dissolution, and is widely used paints, dyes, inks, paints, cosmetics, resins, adhesives, emulsions, pharmaceutical, oil, and other areas of liquid and liquid - phase materials for powder high-speed stirring, dissolved and dispersed.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

Working Principle
Bringing out strong impact and friction between the material and dispersion disc through the high-speed operation of the dispersion, then reaching the emulsified, dissolved, uniform mixing and dispersing  functions quickly. Dispersing mixer for producing paint, printing Inks, asphalt, cosmetic, food and so on.


Features
1. High energy utilization, and can get a very high power density, so saving energy.
2. Product size is easy to be adjusted,ensure the final degree of fineness by adjusting the residence time of material in the barrel.
3. Small vibration, low noise.
Technical Parameter
Model Power(kw) Maximum Rotaing
Speed(rpm)
Diameter of Dispersion
Plate(mm)
Lift up and down
Distance(mm)
FS-5.5 5.5 1400 100-200 700
FS-7.5 7.5 1400 200-300 900
FS-11 11 1400 200-300 900
FS-15 15 1400 200-300 900
FS-18.5 18.5 1250 300-400 1200
FS-22 22 1250 300-400 1200
FS-37 37 1250 300-400 1200
FS-45 45 1250 400-500 1500
FS-55 55 1250 400-500 1500
Moter
Power(kw)
Speed of
Spindle(rpm)
Diameter of
Dispersion Plate(mm)
Range of Vertical
Stroke(mm)
Cylinder Volume(L)
45-55 100-1400 200-1000 700-1500 100-500
