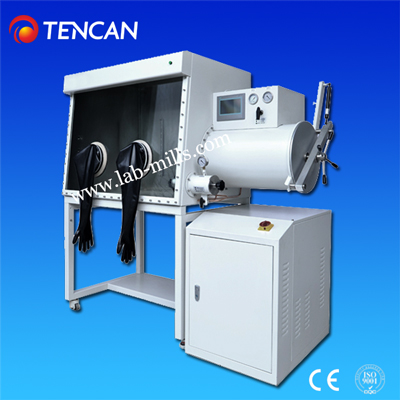

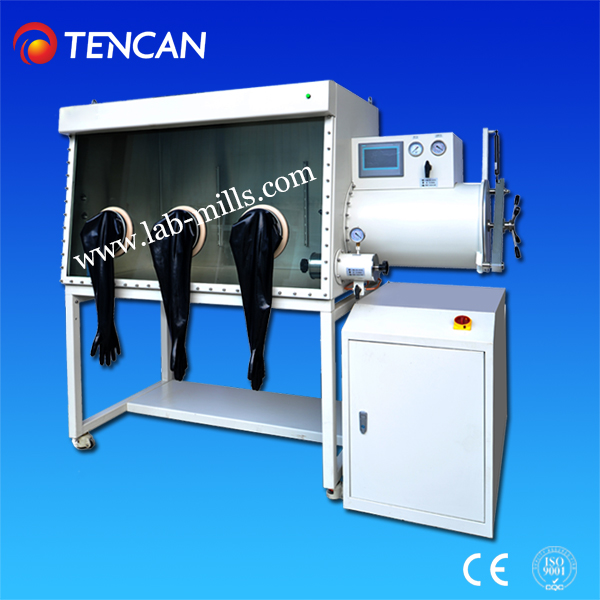

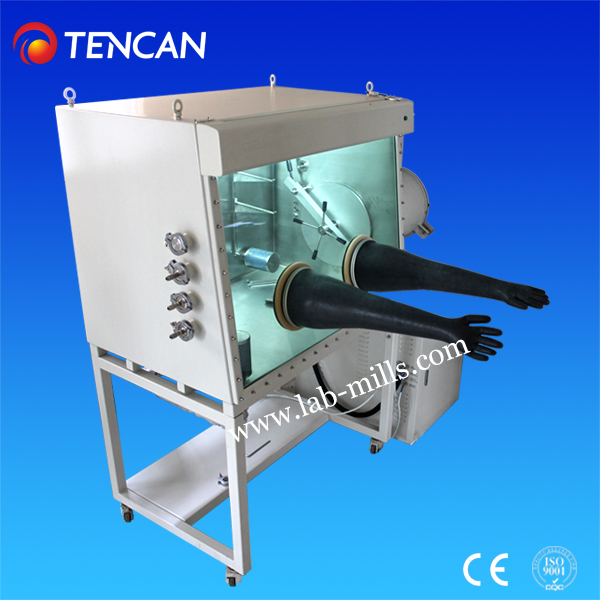

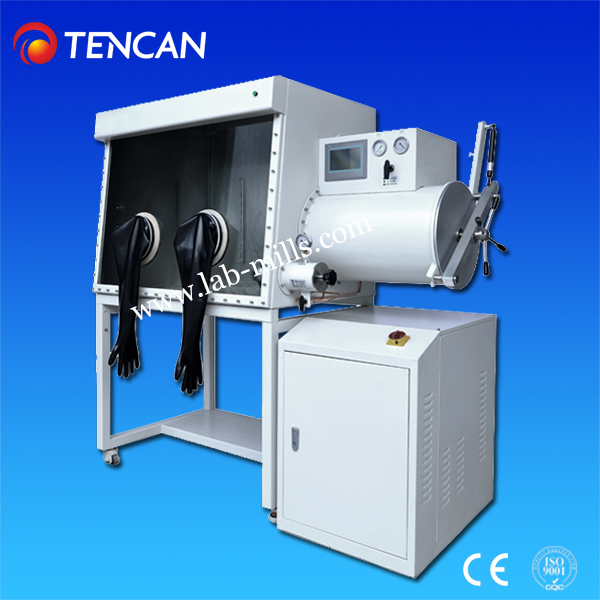

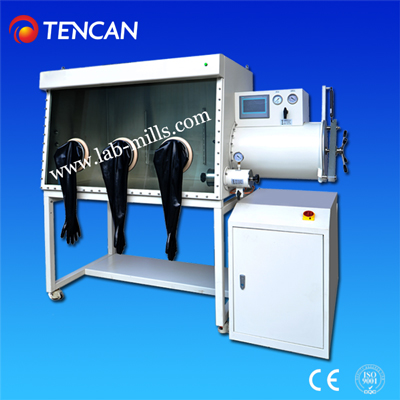

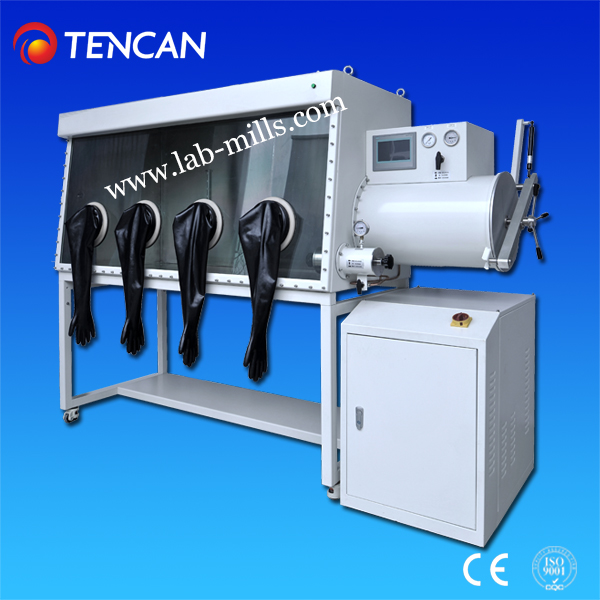

Glove Box with Purification System

  • Model No.:GBP800S-3
  • Brand:TENCAN
  • Applications:Anhydrous, anaerobic and clean, ultra-clean work environment; R&D and production of lithium-ion battery and battery materials; Semiconductor, nano materials, film preparation, catalyst agent, super capacitor, special lamps, laser welding, TIG welding, resistance welding.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

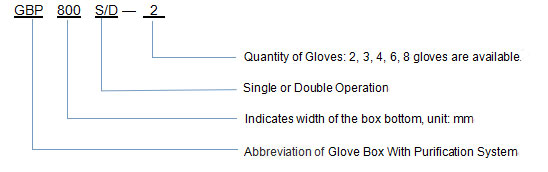

Instructions of Model No. Of Glove Box With Purification System


Quantity of Gloves: 2, 3, 4, 6, 8 gloves are available.
S/D: D indicates double-side operation,S indicates single operation
800: 800 indicates width of the box bottom, unit: mm
GBP: GBP is abbreviation of Glove Box With Purification System


Specifications of Standard Model of Purification Glove Box
No. Model No. Box Dimensions Total Dimensions Operating Sides Numbers of Gloves Options
1 GBP800S-2 1200*800*930mm 1915*830*1830mm Single 2 Single or double purification columns
2 GBP1000S-4 1200*1000*930mm 1915*1060*1830mm Single 4 Single or double purification columns
3 GBP1000D-4 1200*1000*930mm 1915*1060*1830mm Double 4 Single or double purification columns
4 GBP1200S-2 1200*1200*930mm 1915*1260*1830mm Single 2 Single or double purification columns
5 GBP1200D-4 1200*1200*930mm 1915*1260*1830mm Double 4 Single or double purification columns

6 GBP800S-3 1500*800*930mm 2215*1060*1830mm Single 3 Single or double purification columns
7 GBP1000S-3 1500*1000*930mm 2215*1060*1830mm Single 3 Single or double purification columns
8 GBP1000D-6 1500*1000*930mm 2215*1060*1830mm Double 6 Single or double purification columns
9 GBP1200S-3 1500*1200*930mm 2215*1260*1830mm Single 3 Single or double purification columns
10 GBP1200D-6 1500*1200*930mm 2215*1260*1830mm Double 6 Single or double purification columns

11 GBP800S-4 1900*800*930mm 2615*1060*1830mm Single 4 Single or double purification columns
12 GBP1000S-4 1900*1000*930mm 2615*1060*1830mm Single 4 Single or double purification columns
13 GBP1000D-8 1900*1000*930mm 2615*1060*1830mm Double 8 Single or double purification columns
14 GBP1200S-4 1900*1200*930mm 2615*1260*1830mm Single 4 Single or double purification columns
15 GBP1200D-8 1900*1200*930mm 2615*1260*1830mm Double 8 Single or double purification columns
Notes:
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2、Ar、He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements
Glove box and gas purification system forms a sealed environment, filled with inert gas or nitrogen to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water and oxygen contents are below 1ppm)




TECHNICAL INDEX OF TENCAN GLOVE BOX WITH PURIFICATION SYSTEM
Gas pressure withstand by the box body  -3000Pa -+3000Pa
Cabinet water content in the standard condition (Note: The standard condition is one atmospheric pressure, constant temperature of 20 degrees)  <1ppm
Cabinet oxygen content in the standard condition (The standard condition is one atmospheric pressure, constant temperature of 20 degrees ) <1ppm
Leakage rate <0.05vol%/h

FUNCTIONS OF TENCAN GLOVE BOX WITH PURIFICATION SYSTEM
NAME DESCRIPTION
Automatic control Controlled and monitored automatically by the program control unit.
Box body manual/auto gas replacement Before initial use, cabinet air shall be "replaced" with inert gas or nitrogen, which can be easily achieved by using auto gas replacement function of the cabinet provided by the system, gas replacement can also be achieved manually.
Transition cabinet manual/auto replacement  When material was placed in a box, the transition cabinet of the gas needs to be replaced. You may automatic gas exchange function provided by the airlock system; you may also achieve gas replacement manually.
Gas purification control After setting up the work status and results, the system purification procedures set to “Auto”, the system will automatically maintain the atmosphere condition of the cabinets, then the system will automatically complete the work; you may also choose to manual control.
Pedal air-pressure control Use the foot controller-through inflation or exhaust system, to control gas pressure in the cabinets.
Reduction of purification system Purification materials restore is done automatically by the system, we only need to set the conditions of system restore. Open “restore”, the system will automatically complete the restoration work, the whole process does not need to monitor.
On-line operating condition detection The control system provides users with the operating condition detection function of the component of the equipment. Such function can be used to observe operating condition of the component and inspect fault source of each function and component.
System parameter setting System settings function, users can set the system parameters to achieve the desired working conditions and feature set.
Data logging function The system provides operating parameter record of the equipment, this record can be traced back to monitor production or experiment.
Control of gas reserve function When the temporary cutting of control-gas supply, or cutting off control-gas source for some time, the control-gas reserve will protect the equipment continue working.
Standby function of cycle gas cooled Purification system provides a heat exchange for cooling the circulating gas, can be used alone by injecting the coolant to control the temperature of the circulating gas.
Multi-level safety system The control system sets up a variety of security features, include multilevel security tips, alarm and disable function, to protect the safety of operating personnel and equipment.
Protection function when purification cycle blocked When the circulation system is blocked, the control system prompts alerts, and take the initiative to adjust the speed of air, in order to protect the motor, though this function can also check out system cycle blocked, pipeline poor, filter control dust obstruction, and other issues.

OPTIONAL FUNCTIONS OF GLOVE BOX WITH PURIFICATION SYSTEM

Data recording and printing; Remote service functions; System temperature control function
