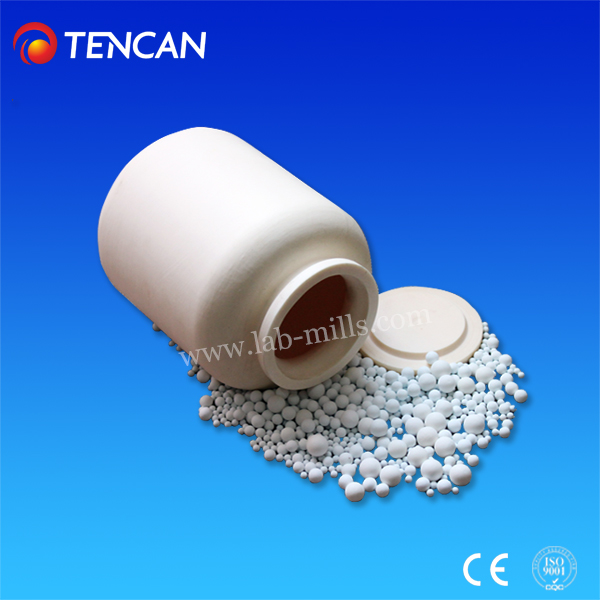

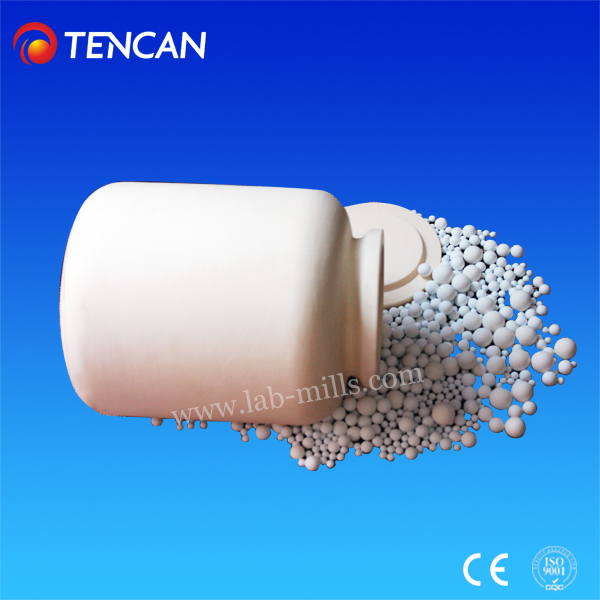

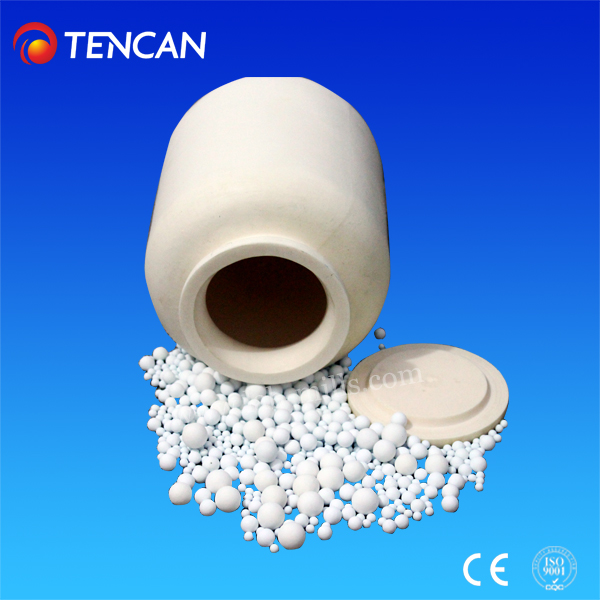

Corundum Roll Mill Jar (Alumina Mill Jar)

  • Brand:TENCAN
  • Applications: Corundum is often mainly used for grinding advanced materials in high hardness
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Arc Straight alumina ceramic crucibles’ basic functions:
Name: straight alumina crucibles
Chemical Composition Al2O3 ≥ 99
  R2O ≤ 0.2
  Fe2O3 ≤ 0.1
  SiO2 ≤ 0.2
Volume density (g/cm2) ≥ 3.80
Apparent porosity (%) <1
Bending strength (Mpa)> 350
Compressive strength (Mpa)> 12000
Dielectric constant Σ (1MHz) 2
The highest operation temperature (°C) 1800
Best roast container for making powder TV, rare earth materials, precious metals, and roasting high, medium and low ceramic capacitors, NTC, PTC piezoelectric ceramic and lithium cobalt oxide, lithium manganese oxide powder.







 High temperature resistance, corrosion resistance, high strength and so on
Parameters of Corundum Roll mill jar
Specification Outer Diameter(mm) Height(mm)
500ml 106 140
1000ml 140 160
1500ml 146 176
2000ml 146 201
3000ml 180 230
4000ml 185 260
10L 230 350
 Mill Balls

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
