PTFE Planetary Mill Jar

  • Brand:TENCAN
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

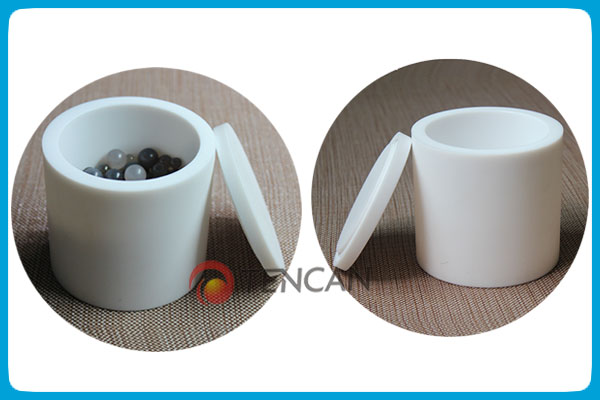

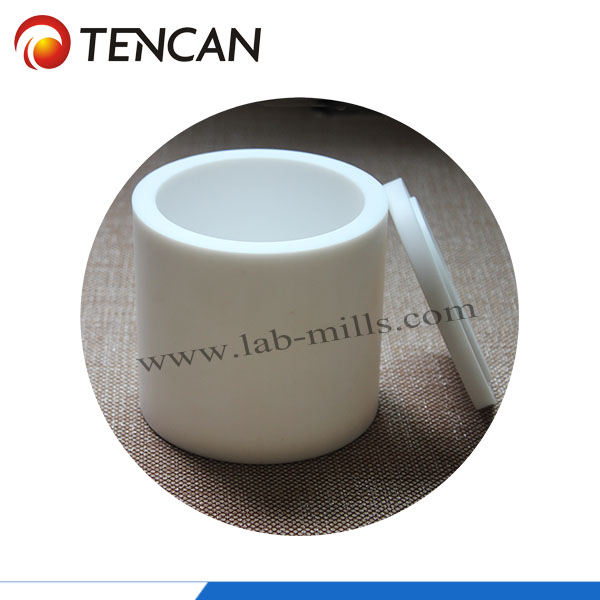

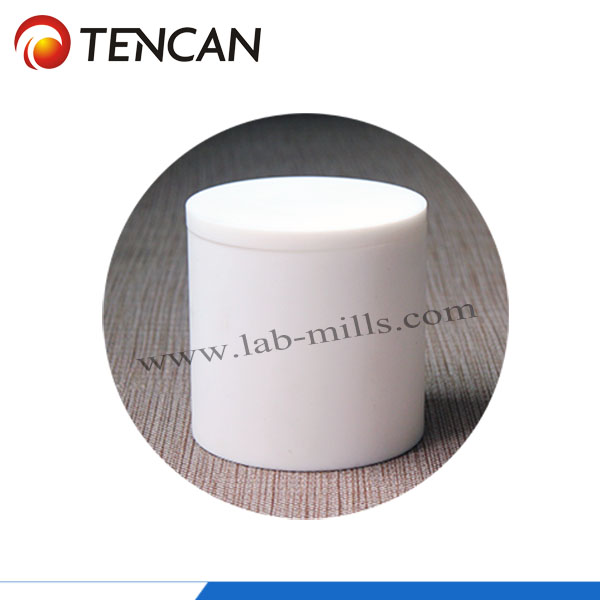

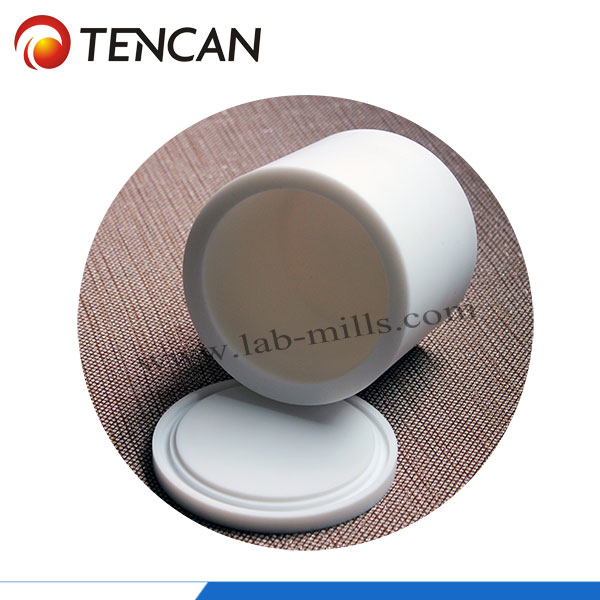

Polytetrafluoroethylene (Teflon or PTFE), commonly named as “Plastic King", is a kind of high molecular compound by the polymerization of ethylene tetrafluoroethylene. It has an excellent features such as chemical stability, corrosion resistance, sealing, high viscosity and lubrication, electric resistance and good anti-aging endurance insulation.Tencan PTFE mill jar is designed professionally, and is made from high quality PTFE material by integrated forming process.





1. High temperature resistance: its max working temperature can be reached to 250°C.
2. Low temperature resistance: It has good mechanical toughness, even under condition of -196°C, its expansion rate can be also kept within 5%.
3. Corrosion resistance: For most chemicals and solvents, PTFE mill jar has features of corrosion resistance and inert as well as acid and alkali resistance.
4. Climate resistance: aging resistance and long durability.
5. High lubrication: The lowest friction coefficient among all solid materials.
6. No adhesion: The smallest surface adhesion of the solid materials. It does not adhere to any material.
7. No harmful for people health
Parameters of PTFE Mill Jar
Model External Diameter
(mm)
Inner Diameter (mm) Height (mm)
25ml 63 31 65
50ml 63 43 59
100ml 68 48 76
250ml 88 68 98
500ml 108 88 115
1L 133 109 142
1.5L 133 109 178
2L 158 134 172
2.5L 158 134 202
3L 158 138 210
4L 178 158 226
5L 218 190 217
10L 246 218 307
15L 273 243 372
20L 320 285 359
25L 320 285 424
Mill Balls

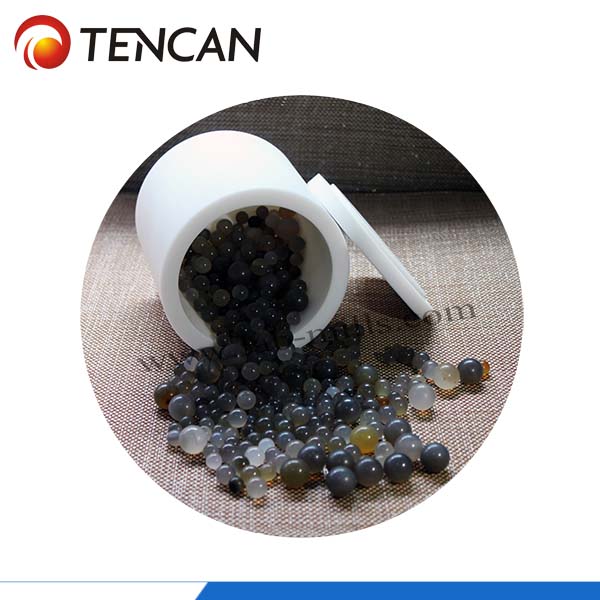

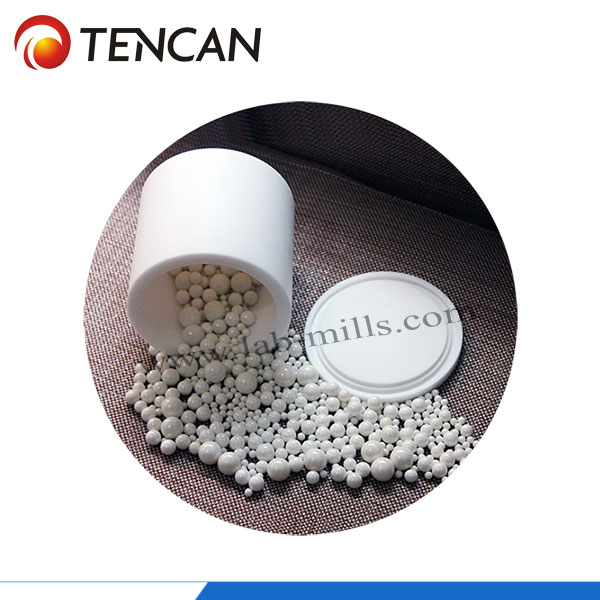

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
