Floor-standing Large Capacity Refrigerated Centrifuge 6-10R

  • Product Name:Floor-standing Large Capacity Refrigerated Centrifuge
  • Model No.:6-10R
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

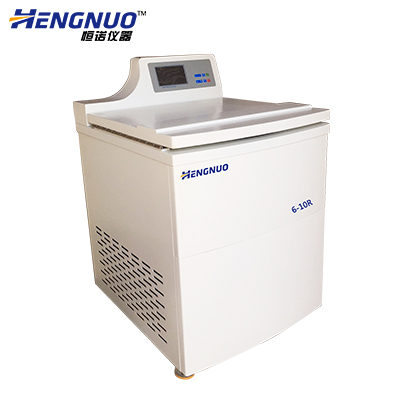

 Floor-standing Large Capacity Refrigerated Centrifuge

6-10R (Refrigerated)

Product Introduction

1. Excellent performance: microcomputer control, AC variable frequency

motor drive, no carbon powder pollution, extending service life, low noise and small vibration;

2. Equipped with the latest super-light large-capacity rotors, improving efficiency greatly.

3. Easy operation: touch screen panel, digital display and programmable operation.

4. Best effects: the user can randomly set speed up and down time, automatically

calculate RCF value, dual heating and cooling temperature control, the centrifugal

 effect is optimal.

5. Safe and reliable: it is equipped with a variety of protections, such as over-speed,

over-temperature, imbalance, and self-locking of the door cover, ensuring safety

of human and machine.

6. Model 6-10R can be widely used in fields of biological engineering, genetic engineering,

bio-pharmaceuticals.




 Floor-standing Large Capacity Refrigerated Centrifuge 6-10R

Features

1. Excellent performance: microcomputer control, AC variable frequency

motor drive, no carbon powder pollution, extending service life, low noise and small vibration;

2. Equipped with the latest super-light large-capacity rotors, improving efficiency greatly.

3. Easy operation: touch screen panel, digital display and programmable operation.

4. Best effects: the user can randomly set speed up and down time, automatically

calculate RCF value, dual heating and cooling temperature control, the centrifugal

 effect is optimal.

5. Safe and reliable: it is equipped with a variety of protections, such as over-speed,

over-temperature, imbalance, and self-locking of the door cover, ensuring safety

of human and machine.

6. Model 6-10R can be widely used in fields of biological engineering, genetic engineering,

bio-pharmaceuticals.


Technical Parameters of 6-10R

Model

6-10 R (Refrigerated)

Max Speed

10000rpm

Power Supply

AC 220±22V 50Hz 30A

Max Relative Centrifugal Force



18300×g

Total Power

4500W

Max Capacity

6×1000ml

Total Noise

< 65dBA

Timing Range

1min99min59sec

Diameter of Centrifugal Cavity

600mm

Temperature Setting Range

-20℃40℃

Outline Dimensions

(L*W*H)

830×721250(mm)

Temperature Accuracy

±1.0℃

Packing Dimensions

(L*W*H)

930×831350(mm)

Minimum Time for Acceleration/Deceleration

178s/178s

Net Weight

230kgs

Speed Accuracy

±20r/min

Gross Weight

300kgs

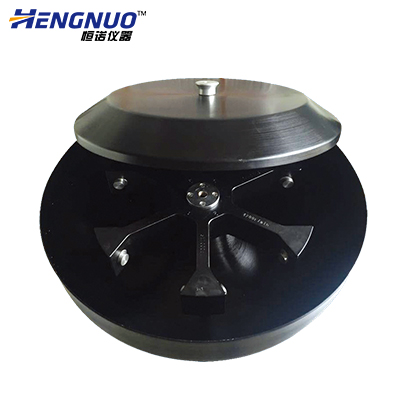

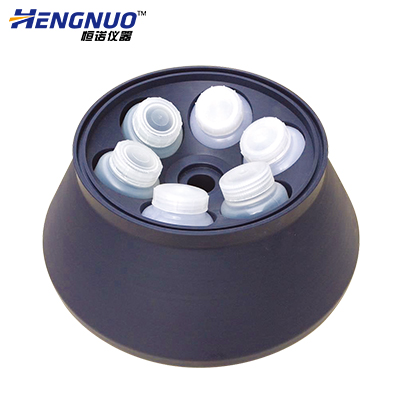

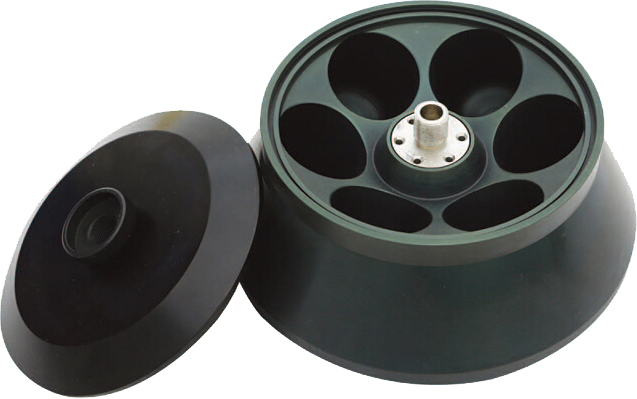

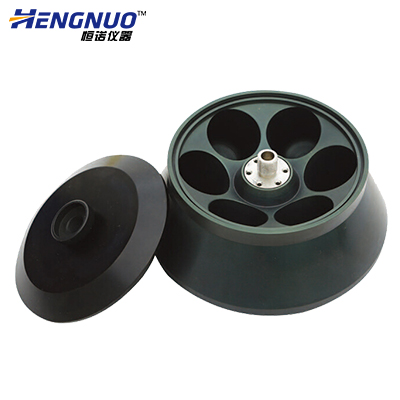

 Applicable Rotors for 6-10R



 #1 Angle Rotor

Single tube capacity: 1000ml

Total capacity: 6*1000ml

Max Speed: 8000rpm

Max RCF: 15000*g





 #2 Angle Rotor



Single tube capacity: 500ml

Total capacity: 6*500ml

Max speed: 8000rpm

Max RCF: 11680*g



#3 Angle Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max capacity: 1000rpm

Max RCF: 18500*g

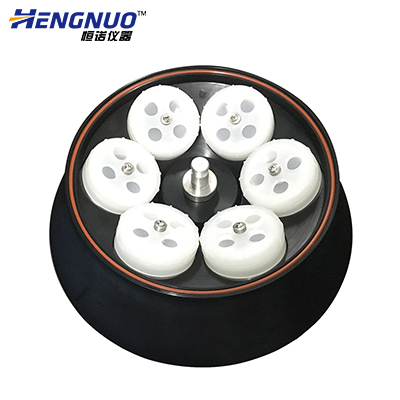

 #4 Angle Rotor

Single tube capacity: 1000ml

Total capacity: 6*1000ml

(Square cup / round cup)

Max speed: 4200rpm

Max RCF: 5100*g
