Bench-top Large-capacity Low-speed Centrifuge 4-5N/4-5R

  • Product Name:Bench-top Large-capacity Low-speed Centrifuge
  • Model No.:4-5N/4-5R
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

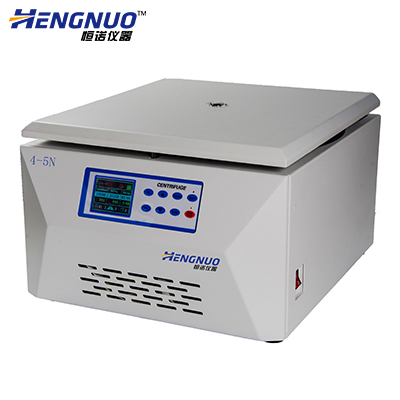

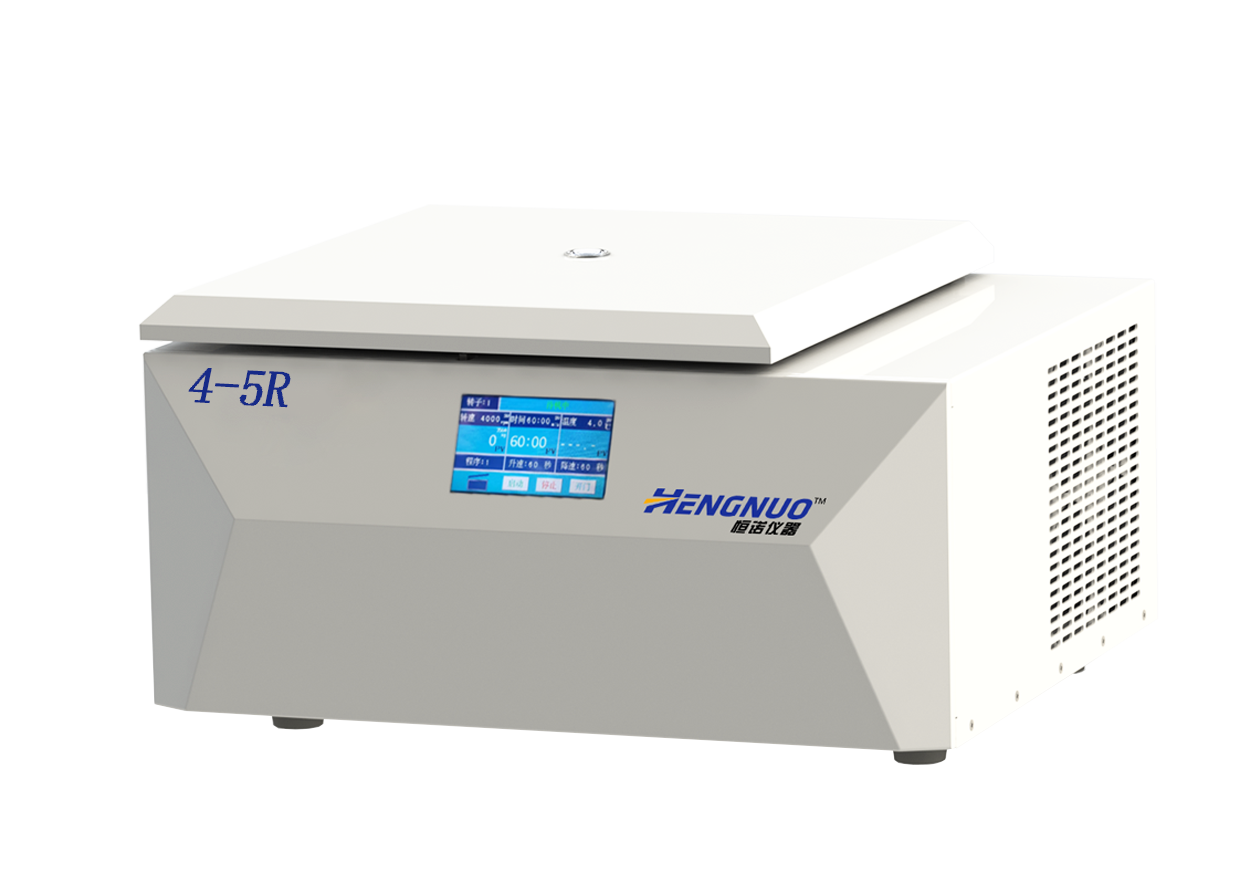

Bench-top Large capacity Low speed Centrifuge  4-5N/4-5R

Product Introduction



1. Bench-top large-capacity low-speed centrifuge is specially designed for clinical medical or cell culture laboratories, providing a variety of rotors, racks, and adapters.

2. Microcomputer control, maintenance-free variable frequency motor drive, preset speed, centrifugal force, temperature (refrigerator) and time

3. It can be equipped with different capacity rotors, max capacity can be upto750ml centrifuge bottles or 144 blood collection tubes.

4. Simultaneous display of centrifugal force and speed without switching, easy to record.

5. It starts timing Only reaching the set speed to ensure the centrifugal effects.

6. 4-5R refrigerated centrifuge is equipped with imported compressors unit, using environmentally friendly fluorine-free refrigerants.

7. Freezer has automatic pre-cooling function, which keeps constant temperature of centrifugal cavity and rotors under the static state.





Bench-top Large-capacity Low-speed Centrifuge

Features



1. Bench-top large-capacity low-speed centrifuge is specially designed for clinical medical or cell culture laboratories, providing a variety of rotors, racks, and adapters.

2. Microcomputer control, maintenance-free variable frequency motor drive, preset speed, centrifugal force, temperature (refrigerator) and time

3. It can be equipped with different capacity rotors, max capacity can be upto750ml centrifuge bottles or 144 blood collection tubes.

4. Simultaneous display of centrifugal force and speed without switching, easy to record.

5. It starts timing Only reaching the set speed to ensure the centrifugal effects.

6. 4-5R refrigerated centrifuge is equipped with imported compressors unit, using environmentally friendly fluorine-free refrigerants.

7. Freezer has automatic pre-cooling function, which keeps constant temperature of centrifugal cavity and rotors under the static state.


Technical Parameters of 4-5N/4-5R

Model No.

4-5N
Normal Temperature

4-5R
( Refrigerated

Max Rotation Speed

100-5500rpm

Max Relative Centrifugal Force

5010×g

Max Total Capacity

4*750ml or144*5ml Blood collection tube

Timing Range

1min99min

Total Noise

<65dBA

Total Power

800W

1500W

Diameter of Centrifugal Cavity

420mm

420mm

Temperature Setting Range

/

-20℃40℃

Temperature Accuracy

/

±1.0℃

Power Supply

AC 220±22V 50Hz 10A

AC 220±22V 50Hz 16A

Outline Dimensions

(L*W*H)

545×468×350(mm)

645×73425(mm)

Net Weight

50kgs

95kgs



Applicable Rotors For 4-5N/4-5R

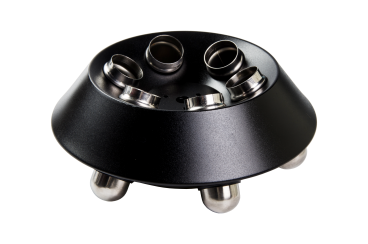

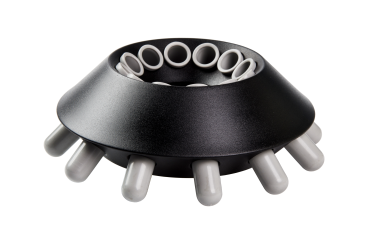

#1 Angle Rotor

Single tube capacity: 10ml/15ml

Total capacity: 12*(10ml/15ml)

Max speed: 5000rpm

Max relative centrifugal force: 5010*g



#2 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max capacity: 4000rpm

Max relative centrifugal force: 2250*g

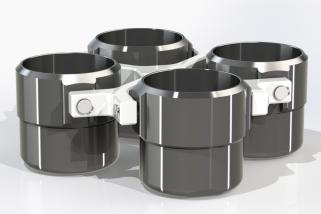

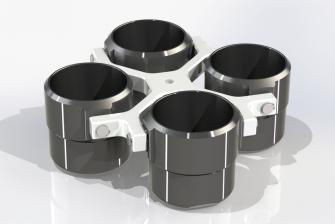

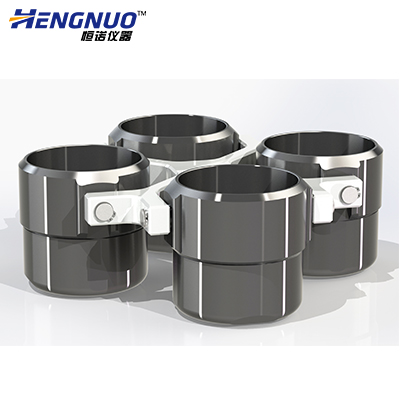

#3 Horizontal Rotor

Single tube capacity:750ml

Total capacity: 4*750ml

Max speed: 4000rpm

Max relative centrifugal force: 3580*g

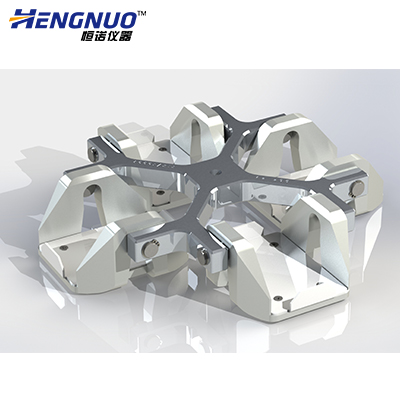

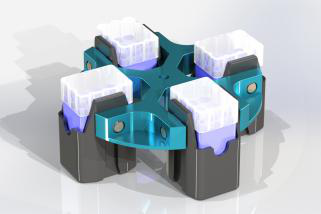

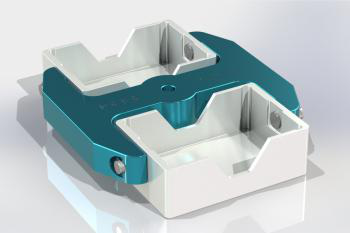

#4 Enzyme plate rotor

Single tube capacity: 96/386 hole plate

Total capacity: 4*2*96 hole plate

Max speed: 4000rpm

Max relative centrifugal force: 3550*g





#5 Horizontal Rotor

Single tube capacity: 500ml

Total capacity: 4*500ml

Max speed: 4000rpm

Max relative centrifugal force: 3580*g





#6 Horizontal Rotor

Single tube capacity: 5ml/7ml

Total capacity: 96*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g





#7 Horizontal Uncap Rotor

Single tube capacity: 2ml/5ml/7ml

Blood collection tube

Total capacity: 96*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3580*g

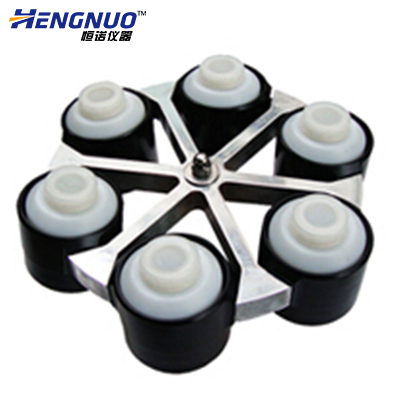

#8 Horizontal Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g





#9 Horizontal Rotor

Single tube capacity: 250ml

Total capacity: 4*250ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g





#10 Horizontal Rotor

Single tube capacity: 10ml/15ml

Total capacity: 32*(10ml/15ml)

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

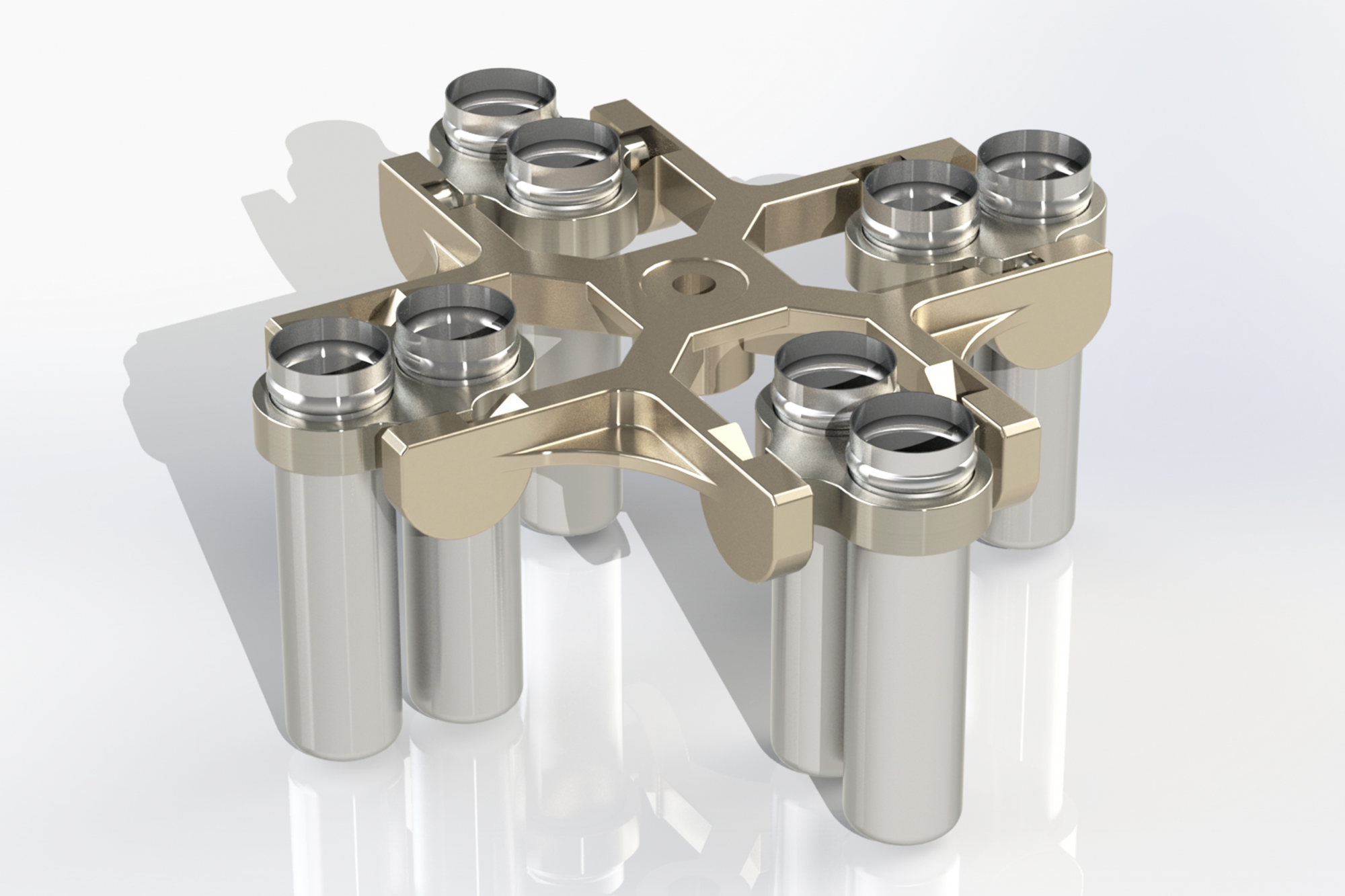

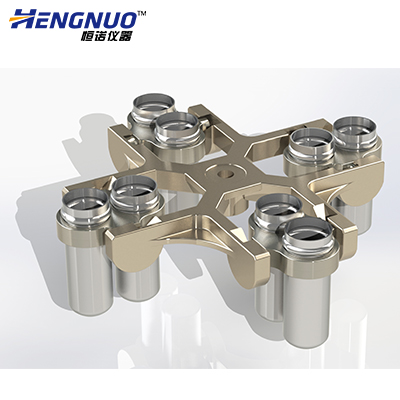

#11 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 8*(50ml/100ml)

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

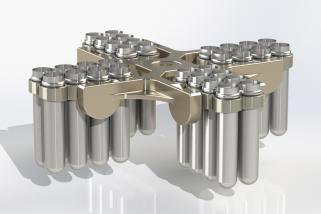

#12 Horizontal Rotor

Single tube capacity: 5ml/7ml

Total capacity: 48/64/72*5ml

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

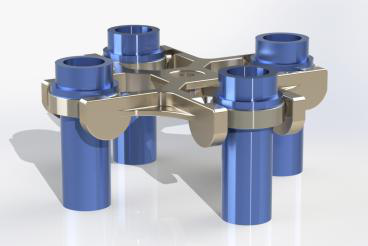

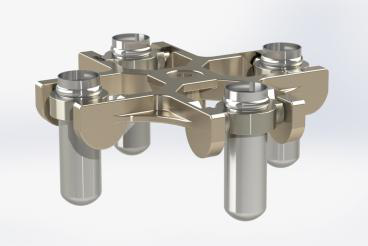

#13 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 4*50ml/100ml

Max speed: 5000rpm

Max relative centrifugal force: 4390*g



#14 Enzyme plate Rotor

Single tube capacity: 96/384 hole plate

Total capacity: 2*2*96 hole plate

Max speed: 4000rpm

Max relative centrifugal force: 2300*g



#15 PRP Rotor

Single tube capacity: 50ml injector

Total: capacity: 4*50ml

10ml/20ml adapter for optional

Max speed: 5000rpm

Max relative centrifugal force: 4390*g



#16 Uncap Rotor

Single tube capacity: 2ml/5ml/7ml

Blood collection tube (only 2ml uncap)

Total capacity: 48*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g
