1. Small volume and compact structure design,saving laboratory space.
2. The rotor is made of new composite material, which is super light, high strength,
slow heat conduction, strong corrosion resistance and fast speed up and down.
3. All in steel structure and stainless steel centrifugal cavity.
4. AC variable frequency motor drive, stable operation.
5. Large LCD display
6. Real time display of time, speed and centrifugal force;
parameters can be changed at any time during operation without stop.
7. It is adopted with electronic door lock and fault self diagnosis system,
which detects over speed, speed loss and other faults, and has unbalanced
protection, door cover protection and other functions, improving safety of the instrument.
1.Small volume and compact structure design,saving laboratory space.
2. The rotor is made of new composite material, which is super light, high strength,
slow heat conduction, strong corrosion resistance and fast speed up and down.
3. All in steel structure and stainless steel centrifugal cavity.
4. AC variable frequency motor drive, stable operation.
5. Large LCD display
6. Real time display of time, speed and centrifugal force;
parameters can be changed at any time during operation without stop.
7. It is adopted with electronic door lock and fault self diagnosis system,
which detects over speed, speed loss and other faults, and has unbalanced
protection, door cover protection and other functions, improving safety of the instrument.
Model No. |

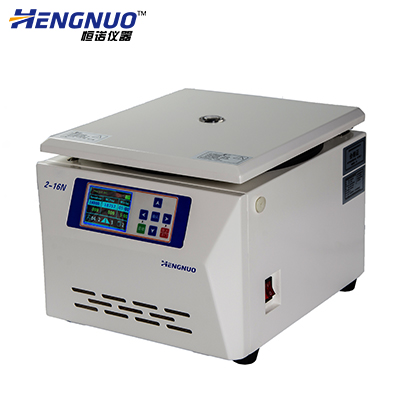

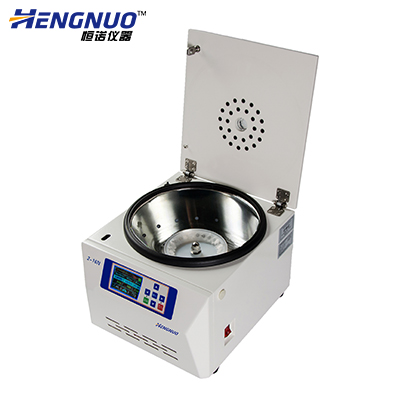

2-16N (Normal Temperature) |
Power Supply |
AC 220±22V 50Hz 10A |
Max Rotation Speed |
16000rpm |
Max Relative Centrifugal Force |
18800×g |
Max Capacity |
10×5ml |
Timing Range |
1min~99min |
Total Noise |
< 65dB(A) |
Total Power |
250W |
Outline Dimensions (L*W*H) |
380×320×270(mm) |
Packing Dimensions (L*W*H) |
450×390×330 (mm) |
Net Weight |
16kgs |
|
Single tube capacity:1.5ml Total Capacity: 12*1.5ml Max rotation speed: 16000rpm Max relative centrifugal force: 22000*g |

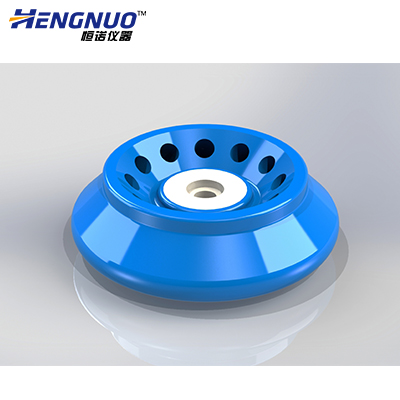

#2 Angle Rotor |
Single tube capacity: 5ml Total capacity: 10*5ml Max rotation speed: 15000rpm Max relative centrifugal force: 15300*g |
|
Single tube capacity: 1.5ml Total capacity:24*1.5ml Max rotation speed: 14000rpm Max relative centrifugal force: 18575*g |

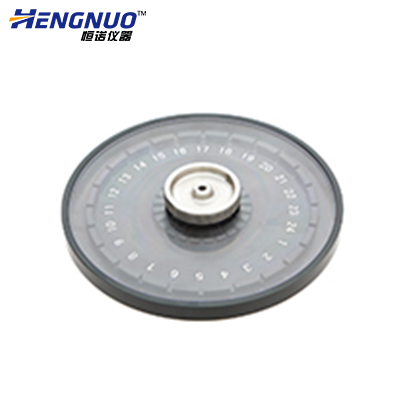

#4 Capillary Rotor |
Single tube capacity: 0.25-1ml capillary tube Total capacity: 24*(0.25-1ml) Max rotation speed:12000rpm Max relative centrifugal force: 14800*g |
|
Single tube capacity:1.5ml Total Capacity: 12*1.5ml Max rotation speed: 16000rpm Max relative centrifugal force: 22000*g |
#2 Angle Rotor |
Single tube capacity: 5ml Total capacity: 10*5ml Max rotation speed: 15000rpm Max relative centrifugal force: 15300*g |

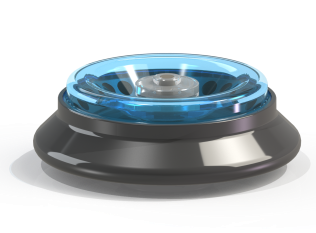

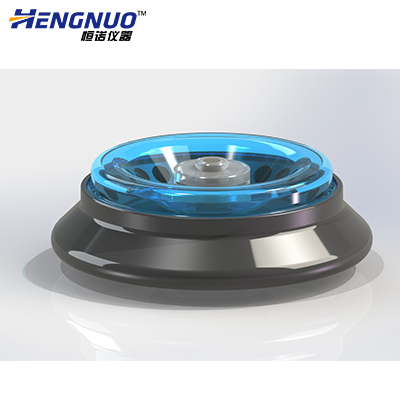

#3 Angle Rotor |
Single tube capacity: 1.5ml Total capacity:24*1.5ml Max rotation speed: 14000rpm Max relative centrifugal force: 18575*g |
#4 Capillary Rotor |
Single tube capacity: 0.25-1ml capillary tube Total capacity: 24*(0.25-1ml) Max rotation speed:12000rpm Max relative centrifugal force: 14800*g |
