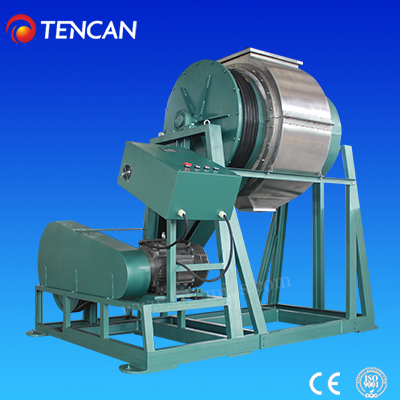

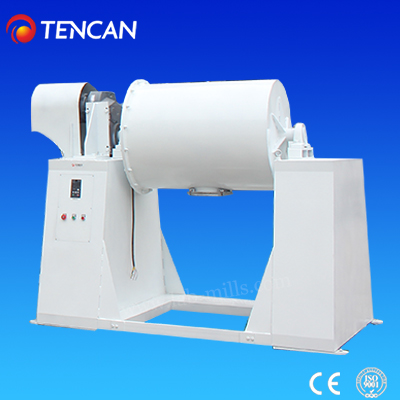

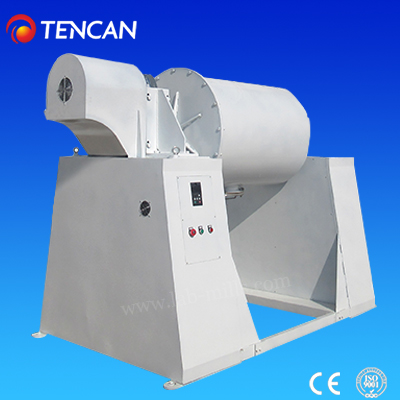

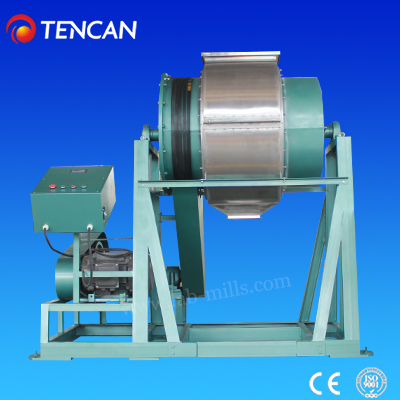

Large Roll Ball Mill

  • Type No.:QM-500L
  • Brand:TENCAN
  • Applications: It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

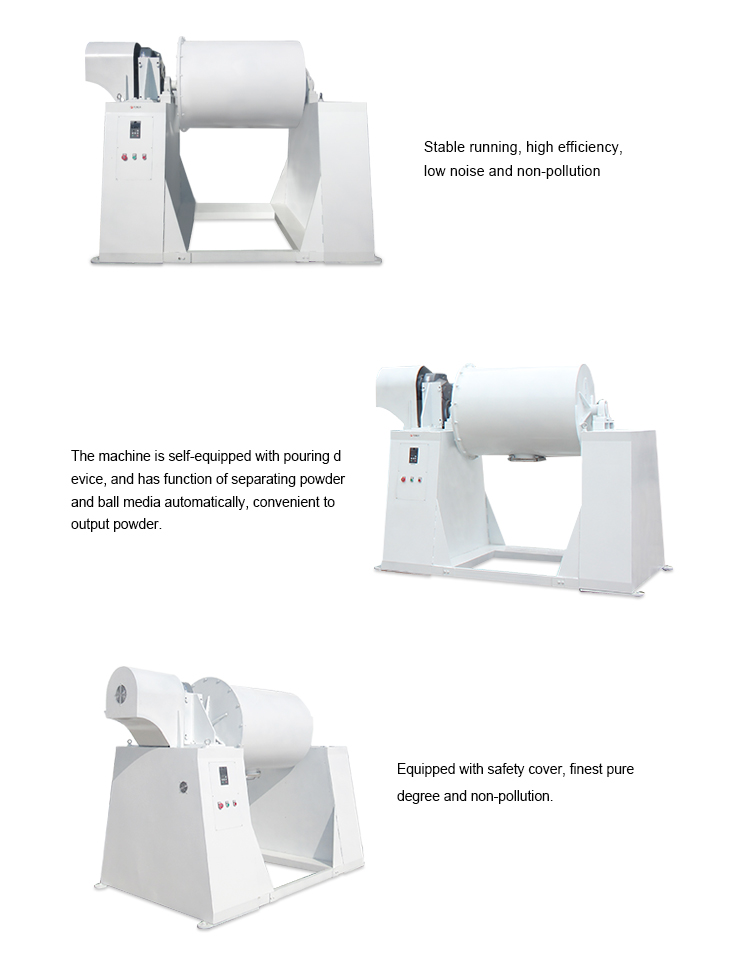

Large roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc.

Working Principle
When ball mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.

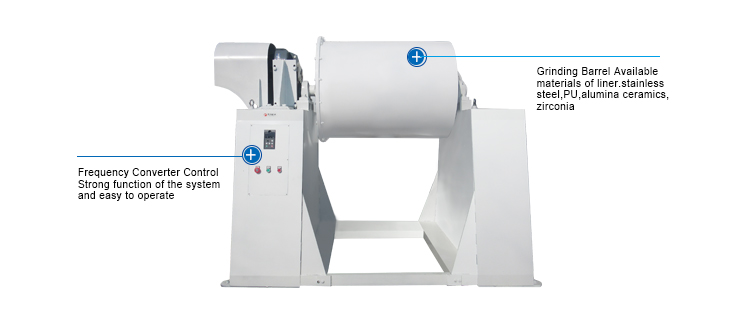

Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground to micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.
The machine is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Application Cases of Planetary Ball Mill

Application Cases of Planetary Ball Mill
Main Parameters of Large Roll Ball Mill
Model No. Volume
Rotate Speed Range
Material Capacity
Power Supply Available Jars Feed Size
Output Granularity
Adjustable Mode of Rotate Speed
QM-100L 100 20~45rpm 35 2.2KW/380V Carbon Steel,
Stainless Steel,
Nylon Liner,
Alumina Ceramic Liner,
PU(polyurethane) Linner,
PTFE Liner.
≤20 ≥300 Frequency adjuster
or Fixed setting for buyer's options
QM-200L 200 20~40rpm 70 4KW/380V ≤20 ≥300
QM-300L 300 20~38rpm 105 5.5KW/380V ≤20 ≥300
QM-500L 500 20~36rpm 175 7.5KW/380V ≤20 ≥300
QM-1000L 1000 20~34rpm 350 11KW/380V ≤30 ≥300
QM-2000L 2000 20~34rpm 700 22KW/380V ≤30 ≥300
Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

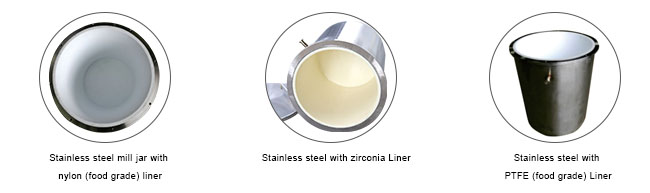

Suggestions for Matching Solution About Mill Jars & Materials

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Suggestions for Matching Solution About Grinding Medium & Materials
