Floor-standing Large Capacity Refrigerated Centrifuge 6-6R

  • Product Name:Floor-standing Large Capacity Refrigerated Centrifuge
  • Model No.:6-6R
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Floor-standing Large Capacity Refrigerated Centrifuge 6-6R

 Introduction

1. Microcomputer control. You can preset: work program, centrifugal force, rotation speed,

centrifugal temperature, centrifugal time, and rotor model, which can be displayed on LCD screen synchronously.

2. Adopting ultra-light and super-strength composite material rotor which has advantages of slow heat conduction,
strong corrosion resistance, fast speed up and down, It greatly
saves time for end-users and is the preferred model for high-speed centrifuge users.

3. You can set acceleration and deceleration time within the allowed range based on requirements.

4. AC variable frequency motor drive, smooth and quiet operation, no maintenance is required.

5. Press keyboard to set working parameters. It can be equipped with self-adjusting balanced rotor.

rotor head is out of balance,it will display error code, the machine shall alarm and stop automatically.

It does not need to keep balance if weight of blood bag is within 3-50g.

6. 10 gears of acceleration and deceleration control, free stopping time of the 9th gear can be up to more than 540s,
it counts in second when the counter time is less than one minute for meeting special requirements of speed deceleration of some users.

7. 10 freely programmable working program settings for option and freely call to improve work efficiency.

8. Electronic door lock, 304 stainless steel inner cavity to prevent rust, three-layer steel structure to protect user’s safety.

9. Imported compressor unit, dual heating and cooling temperature control, and unique heat dissipation system ensure best cooling and heating effect of the instrument.

10. Parameters can be changed randomly during non-program running.

11. The instrument is equipped with a variety of protections such as over-speed, over-temperature, imbalance and self-locking of the door cover, ensuring safety of human and machine.

12. Dedicated horizontal square cup rotor for blood station 6*1000ml, 6*400ml penta blood bags can be separated at one time; 24*100ml blood platelet transfer bags.
This machine is dedicated to be used for biological pharmacy, biological products, blood stations.




 Floor-standing Large Capacity Refrigerated Centrifuge 6-6R

Product Features

1. Microcomputer control. You can preset: work program, centrifugal force, rotation speed, centrifugal temperature, centrifugal time, and rotor model, which can be displayed on LCD screen synchronously.

2. Adopting ultra-light and super-strength composite material rotor which has advantages

of slow heat conduction, strong corrosion resistance, fast speed up and down, It greatly

saves time for end-users and is the preferred model for high-speed centrifuge users.

3. You can set acceleration and deceleration time within the allowed range based on requirements.

4. AC variable frequency motor drive, smooth and quiet operation, no maintenance is required.

5. Press keyboard to set working parameters. It can be equipped with self-adjusting balanced rotor.

rotor head is out of balance,it will display error code, the machine shall alarm and stop automatically.

It does not need to keep balance if weight of blood bag is within 3-50g.

6. 10 gears of acceleration and deceleration control, free stopping time of the 9th gear can be up to more than 540s,
it counts in second when the counter time is less than one minute for meeting special requirements of speed deceleration of some users.

7. 10 freely programmable working program settings for option and freely call to improve work efficiency.

8. Electronic door lock, 304 stainless steel inner cavity to prevent rust, three-layer steel structure to protect user’s safety.

9. Imported compressor unit, dual heating and cooling temperature control, and unique heat dissipation system ensure best cooling and heating effect of the instrument.

10. Parameters can be changed randomly during non-program running.

11. The instrument is equipped with a variety of protections such as over-speed, over-temperature, imbalance and self-locking of the door cover, ensuring safety of human and machine.

12. Dedicated horizontal square cup rotor for blood station 6*1000ml, 6*400ml penta blood bags can be separated at one time; 24*100ml blood platelet transfer bags. This machine is dedicated to be used for biological pharmacy, biological products, blood stations.


Technical Parameters of Model No. 6-6R

Model No.

6-6R(Refrigerated)

Max Speed

6000rpm

Power supply

AC 220±22V 50Hz 30A



Max Relative Centrifugal Force

6680*g

Total power

4500W

Max Capacity

6*1000ml

Total noise

< 65dBA

Timing Range

1min99min59sec

Diameter of centrifugal cavity

600mm

Temperature Setting Range

-20℃40℃

Outline dimensions

(L*W*H)

825×725×965(mm)

Temperature Accuracy

±2.0℃

Packing dimensions

(L*W*H)

930×830×1070(mm)

Minimum Time for Acceleration/Deceleration

178s/178s

Net weight

256kgs

Speed Accuracy

±20r/min

 Gross weight

320kgs


Applicable Rotors For Model No. 6-6R

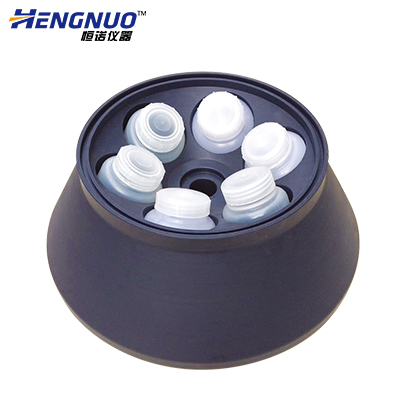

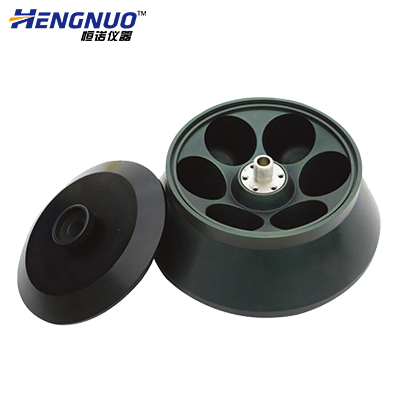

#1 Angle Rotor



Single tube capacity: 500ml

Total capacity: 6*500ml

Max Speed: 6000rpm

Max RCF: 6680*g





#2 Angle Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max speed: 6000rpm

Max RCF: 3650*g

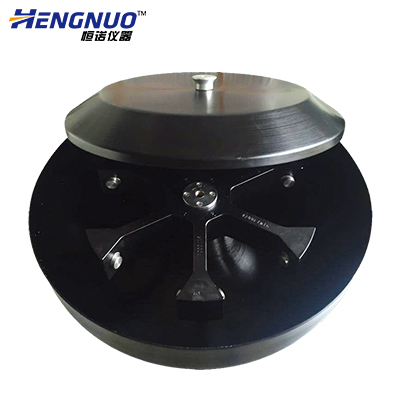

#3 Horizontal Rotor

Single tube capacity: 1000ml (Round cup)

Total capacity: 6*1000ml

Max speed: 4200rpm

Max RCF: 5100*g





#4 Horizontal Rotor

Single tube capacity: 1000ml (Square cup)

Total capacity: 6*1000ml

Max Speed: 4200rpm

Max RCF: 5100*g
