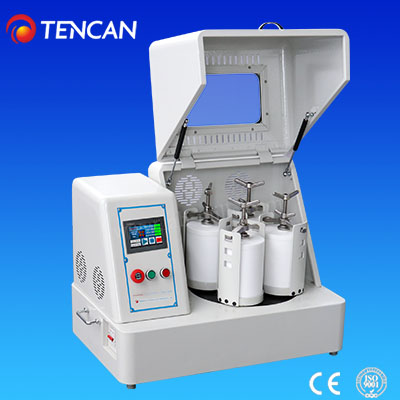

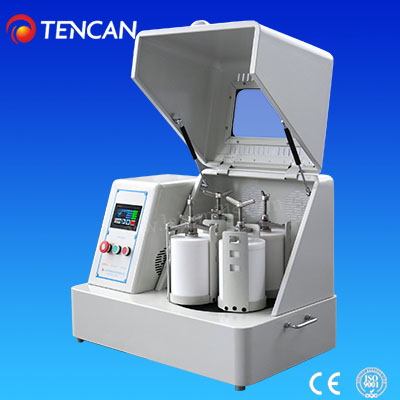

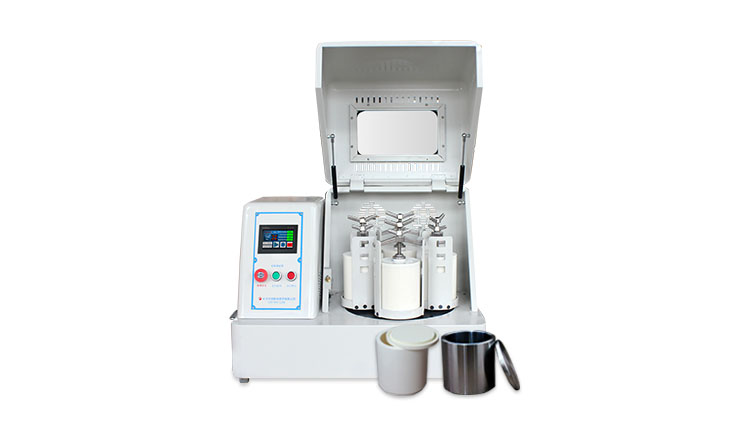

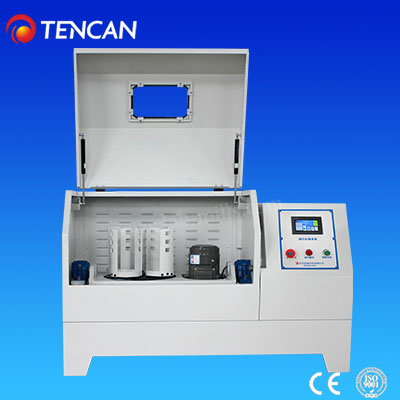

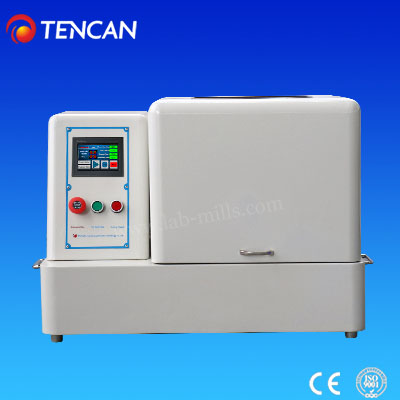

Micro-computerized Touch Screen Planetary Ball Mill

  • Model No. :XQM-1(T)
  • Brand:TENCAN
  • Applications:Microcomputer touch screen planetary ball mill applies to the production fields of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide catalyst, phosphors, rare earth polishing powder, glass powder electronics, fuel cells, zinc oxide varistors, piezoelectric ceramics, nano-materials, disc ceramic capacitors, MLCC, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, feed zinc oxide, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite products.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

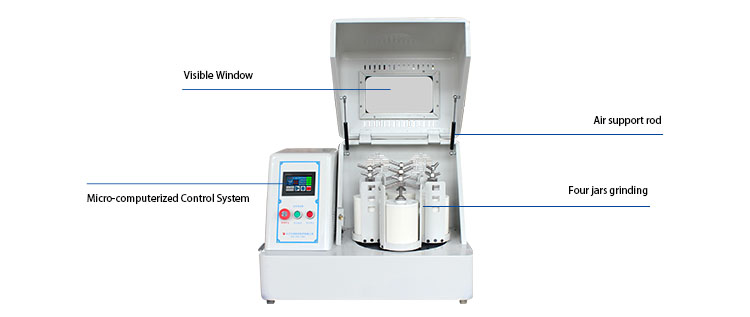

Micro-computer touch screen planetary ball mill composes of a normal planetary ball mill and the touch operation control system, which improves the equipment’s operating performance. This machine mainly satisfies the customers with the better quality and operation performance. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, environmental protection and other departments。







Planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground products can be as small as 0.1 mm.

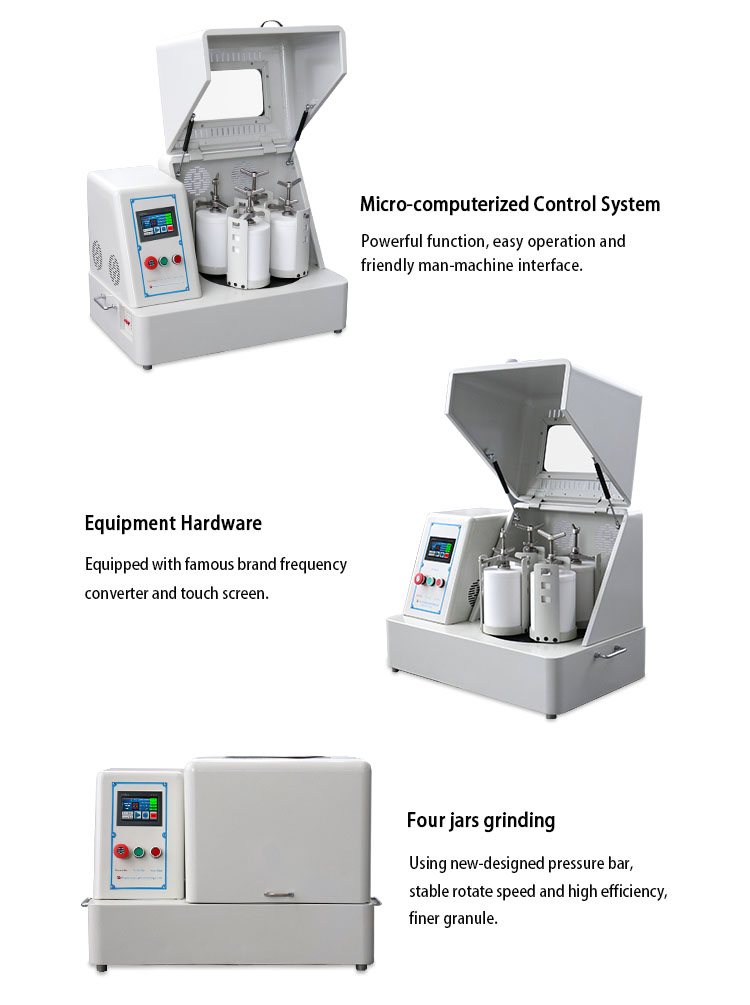

Features

1.Strong function of control system.
2.Provided with many functions such as the setting of password, freely programming, multiprogram storage and transfer, process monitoring and failure warning.
3.Visualized touching operation, simple and humanized design.

Application Cases of Planetary Ball Mill




Application Cases of Planetary Ball Mill

Technical Features of Horizontal Planetary Ball Mill
Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding jars working together
Maximum Loading Capacity 2/3 of the capacity of milling jar
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest granule reaches 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.

Main Parameters of Computerized Planetary Ball Mill
Model No. Power
(kw)
Voltage Dimension
(mm)
Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
XQM-2(T) 0.75 220V-50Hz 750*470*564 35-335 70-670 1-9999 1-999
XQM-4(T) 0.75 220V-50Hz 750*470*564 35-335 70-670 1-9999 1-999
XQM-6(T) 0.75 220V-50Hz 750*470*564 35-335 70-670 1-9999 1-999
XQM-8(T) 1.5 220V-50Hz 900*600*640 35-290 70-580 1-9999 1-999
XQM-10(T) 1.5 220V-50Hz 900*600*640 35-290 70-580 1-9999 1-999
XQM-12(T) 1.5 220V-50Hz 900*600*640 35-290 70-580 1-9999 1-999
XQM-20(T) 4 380V-50Hz 1200*750*920 25-215 50-430 1-9999 1-999
XQM-40(T) 5.5 380V-51Hz 1400*850*1160 20-195 40-390 1-9999 1-999
XQM-60(T) 7.5 380V-52Hz 1600*990*1250 27-174 40-260 1-9999 1-999
XQM-100(T) 11 380V-53Hz 1750*1140*1330 27-160 40-240 1-9999 1-999




Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.


Suggestions for Matching Solution About Mill Jars & Materials


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Suggestions for Matching Solution About Grinding Medium & Materials



Pictures of Accessories & Spare Parts
