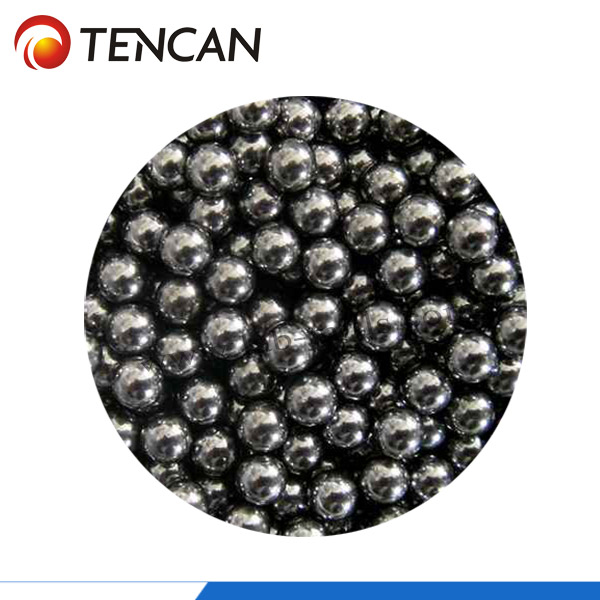

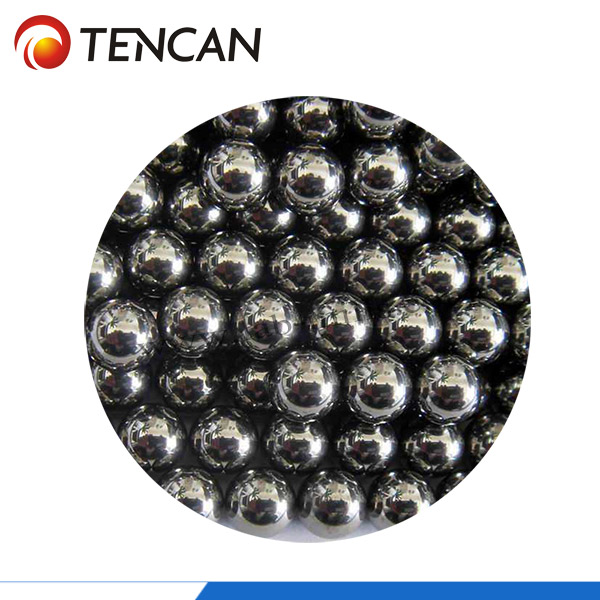

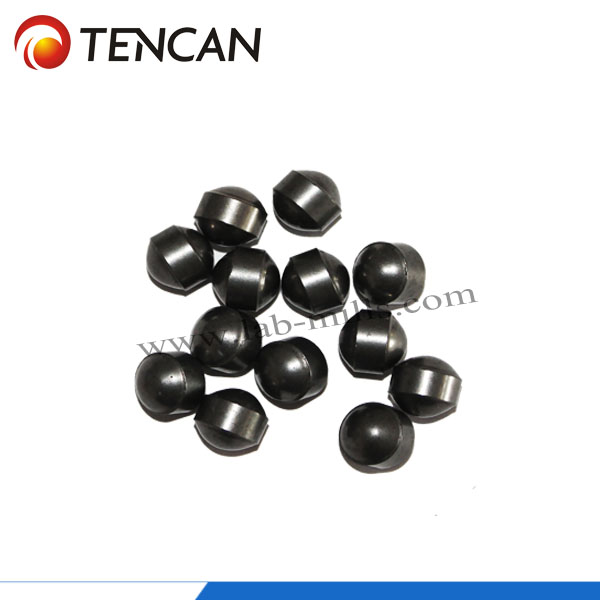

Tungsten Carbide Mill Ball

  • Brand:TENCAN
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Tungsten carbide mill ball is made of hard alloyed materials. It has advantages of high hardness, good abrasion resistance, anti-corrosion, anti-bending and adaptable to tough working environment.





1) Main ingredient of tungsten carbide ball is WC-CO, which owns high hardness and good abrasion resistance. Its toughness is better than YG6 alloy ball. There also are other good anti-impact and anti-vibration components.
2) High density: Its hardness reaches 15.1g/cm3, little porosity, extra abrasion resistance and anti-corrosion, ten times of life cycle than common tungsten steel ball.
3) High precision: less than 0.001mm tolerance. Smooth and shining surface without pocking mark, because it has been processed by strengthening treatment which is Tencan’s unique manufacturing technology.
4) Small lot production is acceptable.
Parameters of Tungsten Carbide Balls
Model No. Yg6 Yg6X Yg8 Yg10 Yg15
WC % 94 94 92 90 85
CO % 6 6 8 10 15
Density(g/cm3) 14.5-14.9 14.6-15 14.5-14.9 14.3-14.7 13.9-14.2
Hardness HRA 89.5 91 89.5 89.5 87
Abrasion resistance Hardness N/cm3 1380 1500 1600 2200 2100

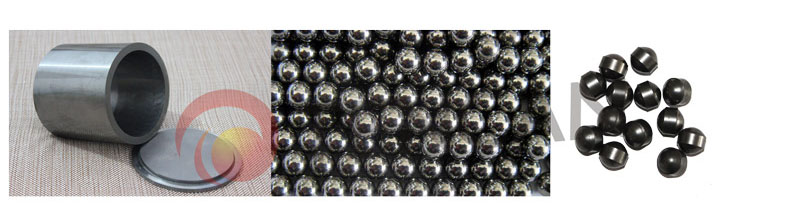

 Mill Pots

We provide all kinds of mill pots in any matched size, which can be made of agate, alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

Mill pots for planetary ball mills


Mill pots for roll ball mills
