Cryogenic Planetary Ball Mill

  • Model No.:XQM-1(C)
  • Brand:TENCAN
  • Applications:Cryogenic planetary ball mill is mainly applied to ultrafine grinding under condition of low-temperature requested by materials. Compared with the artificial injection of liquid nitrogen cooling, cold-air planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy consumed.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Overview

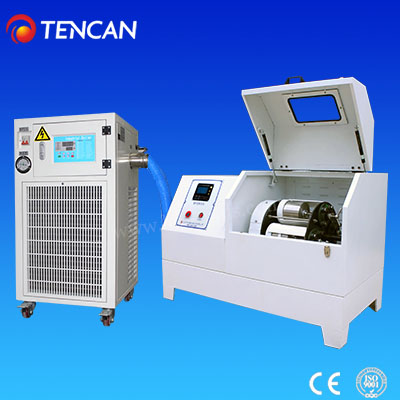

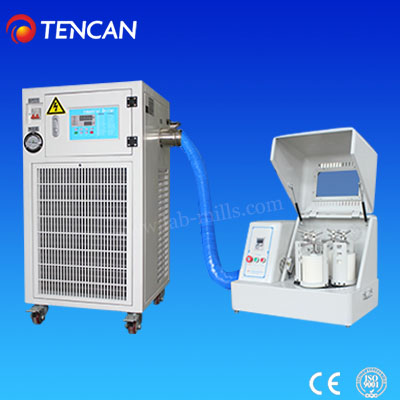

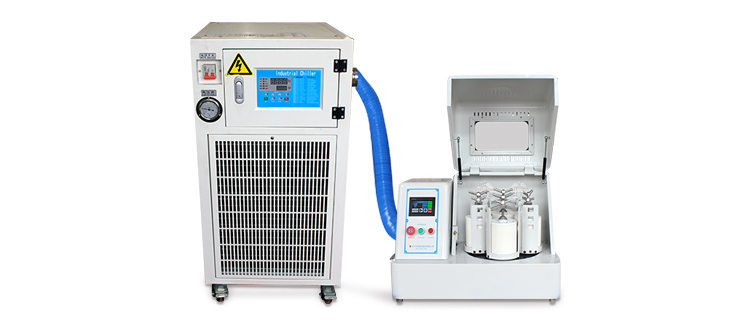

Cryogenic planetary ball mill is a combination of planetary mill and refrigeration equipment. Most materials will be heated during high-speed grinding due to friction or exothermic reaction, which may lead to changes in physical and chemical properties of materials and produce negative grinding effect. Low temperature planetary ball mill is mainly used in material grinding process which needs strict temperature control.

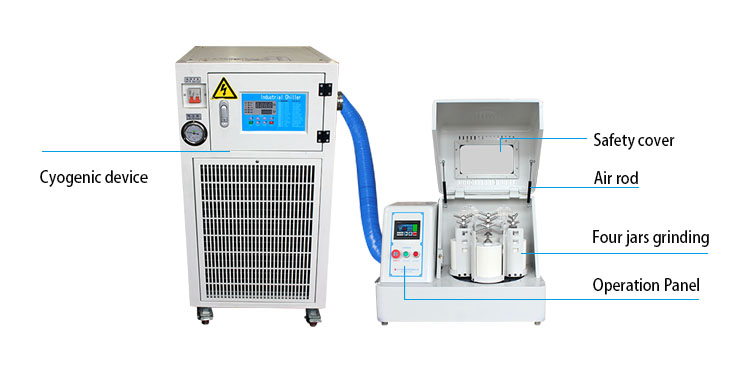

Cryogenic planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground powder can be as small as 0.1mm.






Features of Tencan Cryogenic Planetary Ball Mill

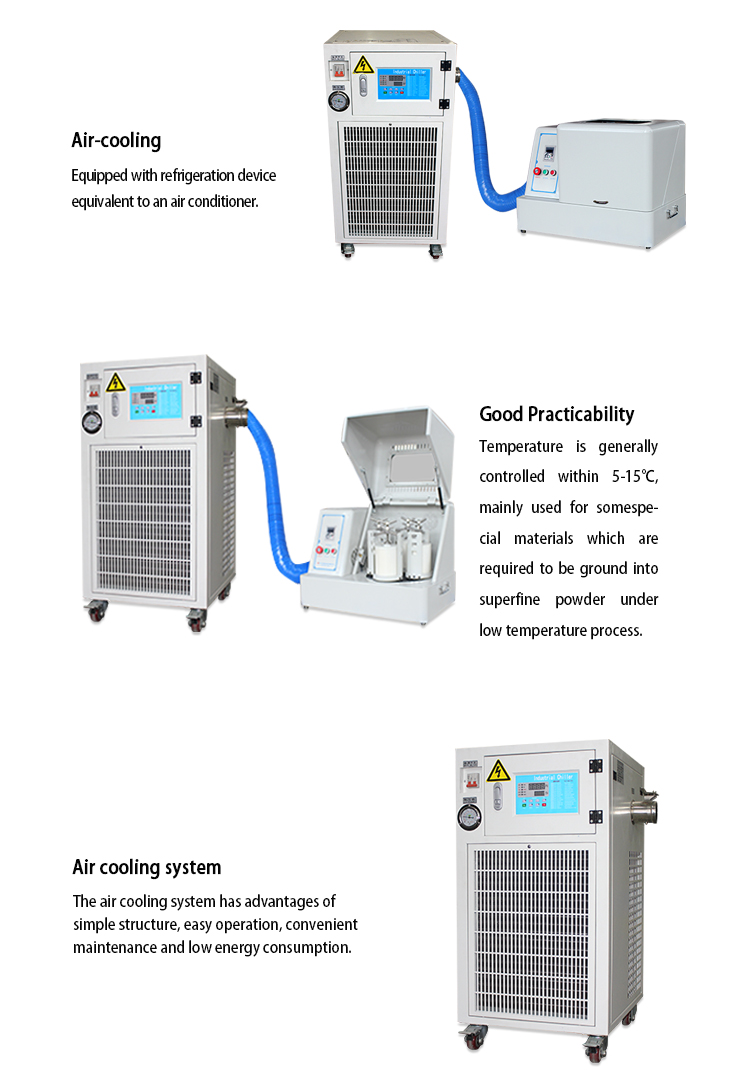

Cryogenic (Low-temperature control) planetary ball mill is a combination of planetary mill and air-cooling device. Air-conditioning compressed refrigeration principle is applied in the air-cooling device. The heat generated by grinding can be quickly removed by air cooling gas cycle. According to the difference of ambient temperature, temperature of ball-milling space can be controlled within 5-15℃. This kind of ball mill is mainly used for ultra-fine grinding under material requirements of low-temperature technology. The air-cooling device has advantages of simple structure, convenient operation, convenient maintenance and lower energy consumption.

1. Suitable for the materials requiring ultra-fine grinding under low temperature.
2. Simple structure.
3. Easy operation.
4. Convenient maintenance.
5. Low energy consumption.

Applications

Cryogenic planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for lots of production fields such as electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder, electronic glass, etc. Production of Powder, Fuel Cell, Zinc Oxide Varistor, Piezoelectric Ceramics, Nanomaterials, Wafer Ceramic Capacitance, MLCC, Thermistor (PTC, NTC), ZnO Varistor, Dielectric Ceramics, Alumina Ceramics, Zirconia Ceramics, Phosphor Powder, Zinc Oxide Powder, Cobalt Oxide Powder, Ni-Zn Ferrite, Mn-Zn Ferrite, etc.

Application Cases of Planetary Ball Mill
Application Cases of Planetary Ball Mill

Technical Data Sheet of Tencan Planetary Ball Mill

Drive Mode

Gear drive

Operation Mode

Two or four mill jars can be used for each grinding

Max Capacity for Materials

Less than 1/3 of each jar volume

Total max capacity: less than 1/3 of total jars volume

Feed Size

Soft and crispy materials ≤ 10mm

Other hard materials ≤ 3mm

Output Granularity

Smallest granularity can be achieved to 0.1μm

Rotation Speed Ratio

1:2

Max Continuous Operating Time

72 Hours

Materials of Available Mill Jars

304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU,
Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

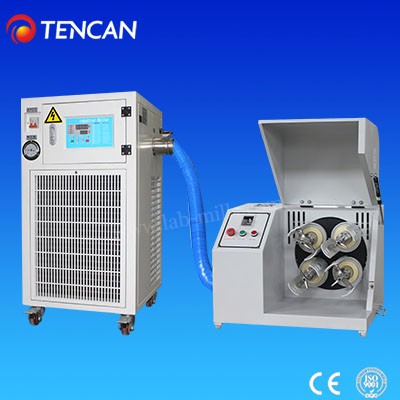

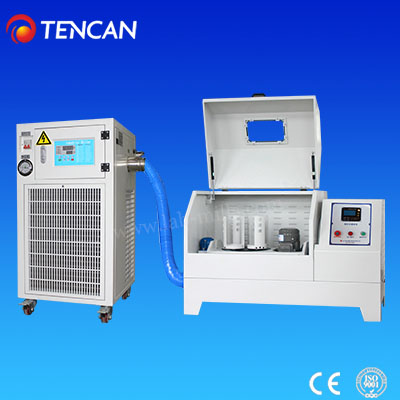

Remarks: Cryogenic planetary ball mill is combination of planetary ball mill plus air-cooling device, which can be equipped with vertical planetary ball mill, horizontal planetary ball mill, full-directional planetary ball mill.

Table 1 Technical Parameters For Cryogenic Planetary Ball Mill

Model No.

Voltage

Power

Rotation Speed

Noise

XQM-1(C)

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

XQM-2(C)

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

XQM-4(C)

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

XQM-6(C)

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

XQM-8(C)

220V-50Hz

1.5KW

70-580 rpm

Less than 60db

XQM-10(C)

220V-50Hz

1.5KW

70-580 rpm

Less than 60db

XQM-12(C)

220V-50Hz

1.5KW

70-580 rpm

Less than 60db

XQM-20(C)

380V-50Hz

4.0KW

50-430 rpm

Less than 65db

XQM-40(C)

380V-50Hz

5.5KW

40-390 rpm

Less than 68db

XQM-60(C)

380V-50Hz

7.5KW

40-260 rpm

Less than 68db

XQM-100(C)

380V-50Hz

11KW

40-260 rpm

Less than 68db


Table 2 Technical Parameters For Cryogenic Planetary Ball Mill

Model No.

Speed Control

Net Weight

Net Dimensions

XQM-1(C)

Frequency Control

93kgs

750*470*564mm

XQM-2(C)

Frequency Control

93kgs

750*470*564mm

XQM-4(C)

Frequency Control

93kgs

750*470*564mm

XQM-6(C)

Frequency Control

93kgs

750*470*564mm

XQM-8(C)

Frequency Control

150kgs

900*600*640mm

XQM-10(C)

Frequency Control

150kgs

900*600*640mm

XQM-12(C)

Frequency Control

150kgs

900*600*640mm

XQM-20(C)

Frequency Control

330kgs

1200*750*920mm

XQM-40(C)

Frequency Control

468kgs

1400*850*1160mm

XQM-60(C)

Frequency Control

900kgs

1600*990*1250mm

XQM-100(C)

Frequency Control

1250kgs

1750*1140*1330mm


Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.


Available Mill Jars & Specifications

Description of Mill Jars

Available Specifications

304 Stainless steel mill jar

From 50ml to 25L

Alumina ceramic (Corundum) mill jar

From 50ml to 10L

Zirconium mill jar

From 50ml to 5L

Nylon mill jar

From 50ml to 25L

Polyurethane mill jar

From 50ml to 1L

PTFE/Teflon mill jar

From 50ml to 10L

Agate mill jar

From 50ml to 2L

Tungsten carbide mill jar

From 50ml to 2L

316l Stainless steel mill jar

Customized

304 Stainless steel vacuum mill jar

Customized


Matching Solutions Recommendation for Materials & Mill Jars

Materials & Requests

Recommended Solutions

Soil materials and other materials which are not allowed with any impurity contamination

Agate mill jar

Metal or nonmetal which are not allowed with any impurity contamination

Zirconium mill jar

High hardness materials like diamond, tungsten carbide

Tungsten carbide mill jar

Strong add & alkali materials, or other materials under high temperature

PTFE mill jar

Iron ore materials or other materials with low impurity sensitivity

304 stainless steel mill jar

Pigment or materials with later processing under high temperature

Nylon mill jar

Aluminum materials like ceramic glaze

Corundum mill jar

Electronic materials like lithium battery

Polyurethane mill jar

Easily oxidized materials or some materials which need to be protected under special atmosphere



Vacuum mill jar



We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Available Mill Balls & Specifications

Descriptions

Available Specifications (Diameter Size)

304 Stainless steel mill balls

From 1mm to 30mm

316l Stainless steel mill balls

From 1mm to 30mm

Alumina mill balls

From 1mm-50mm

Zirconium mill balls

From 0.1mm to 30mm

Agate mill balls

From 1mm-30mm

Tungsten carbide mill balls

From 2mm to 20mm

Carbon steel mill balls

From 1mm to 30mm

Iron core PU mill balls

From 15mm-30mm


Matching Solutions Recommendation for Materials & Mill Balls

Grinding Balls

Hardness ( Mohs )

Characteristics

Tungsten Carbide Balls

≥9.0

Super wear-resistance, no impurity, anti-corrosion,

High temperature resistance

Zirconia Balls

≥9.0

Super wear-resistance, no impurity, anti-corrosion,

High temperature resistance, commonly used for medicine, food and other materials which can not be allowed with impurity.

Stainless Steel Balls

≥6.0

Wear-resistance, anti-corrosion, high temperature resistance, brings some impurity.

Agate Balls

≥7.0

Super wear-resistance, commonly used for medicine, food and other materials which can not be allowed with impurity, anti-corrosion, high temperature resistance

Alumina Balls

≥8.5

Wear-resistance, anti-corrosion, high temperature resistance, brings impurity



Pictures of Accessories & Spare Parts
