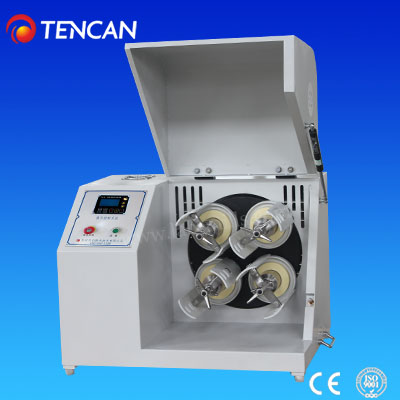

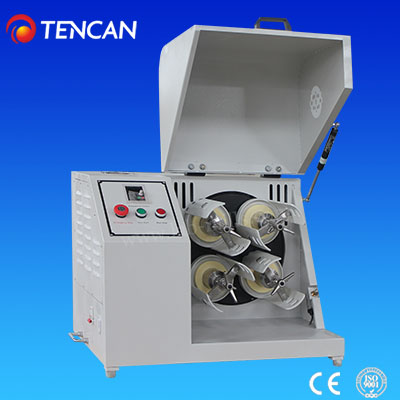

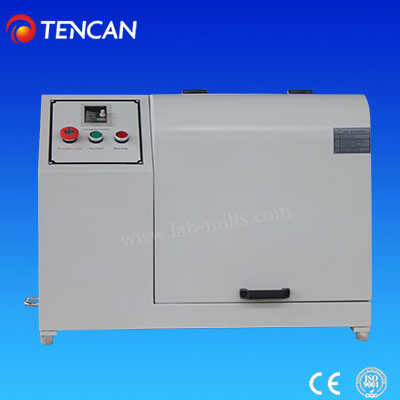

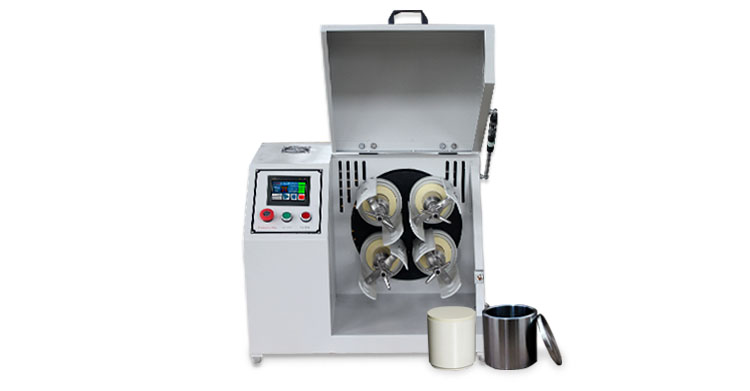

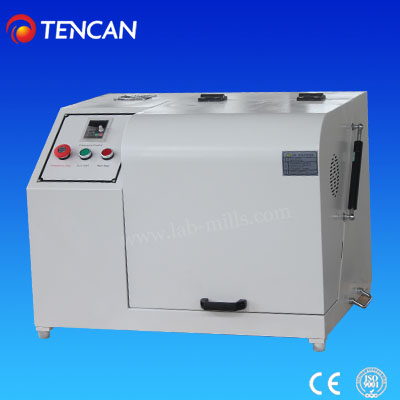

Laboratory Horizontal Planetary Ball Mill

  • Model No.:WXQM-0.4
  • Brand:TENCAN
  • Applications:WXQM series planetary ball mill is the requisite equipment for mixing, fine grinding, small sample preparing, new product development and small volume high-tech material production. The product has small volume, complete function, high efficiency and low noise.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
WXQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).











Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. A variety of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

Features
1. Easy operation.

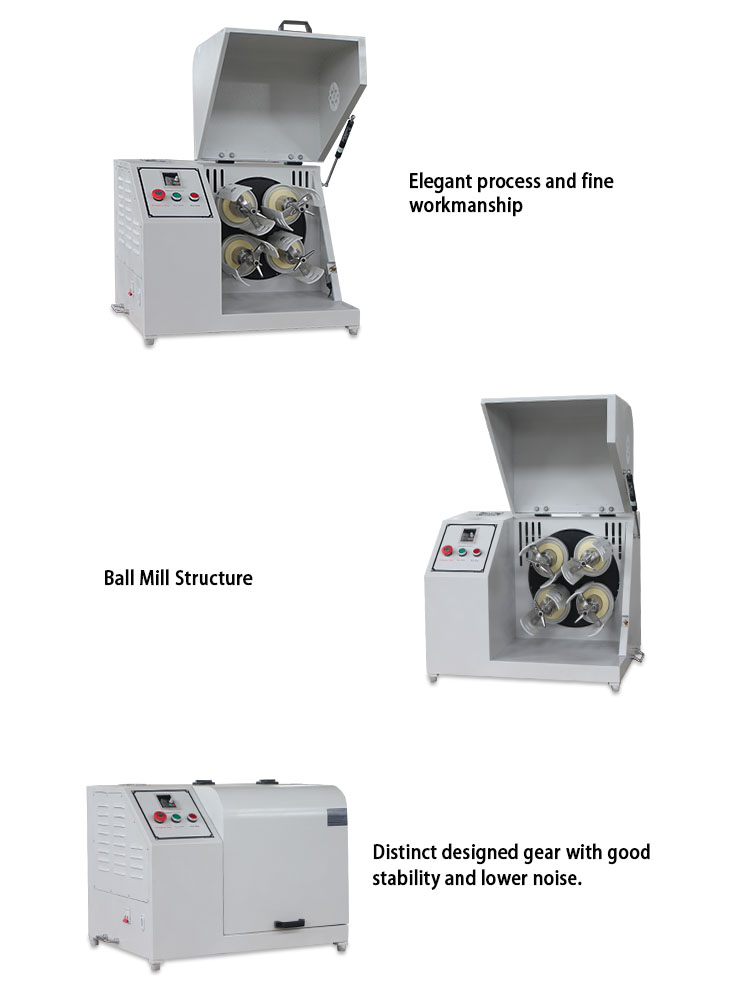

2. Unique gear with low noise.
3. Horizontal structure of the mill pot avoids materials sinking to the bottom.

Advantages of Laboratory Horizontal Planetary Ball Mill
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

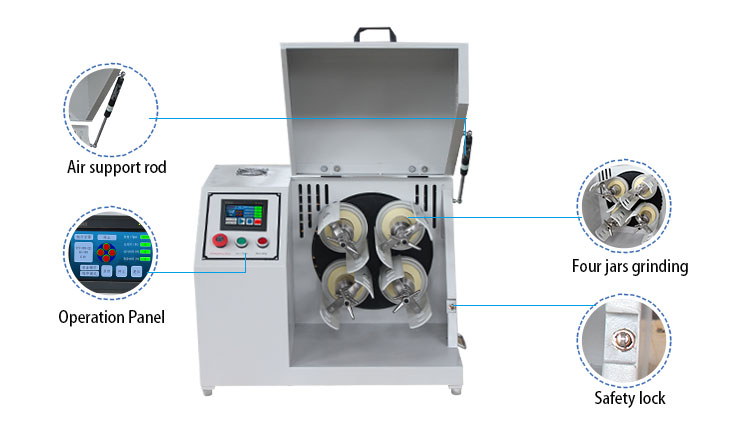

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Application Cases of Planetary Ball Mill

Application Cases of Planetary Ball Mill



Technical Features of Horizontal Planetary Ball Mill
Drive Mode Gear drive and belt drive
Operation Mode Two or four mill jars can be used for each grinding
Maximum Loading Capacity Less than 1/3 of each jar volume
Total max capacity: less than 1/3 of total jars volume
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest granule reaches to 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar 304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU,
Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

Table 1 Technical Parameters For Laboratory Horizontal Planetary Ball Mill

Model No.

Specifications

Matchable Sizes

 of Mill Jars

Matched Quantity

Matchable Sizes

of Vacuum Mill Jars

WXQM-0.4

0.4L

50ml, 100ml

4 pcs

50ml

WXQM-1

1.0L

50ml, 100ml, 250ml

4 pcs

50ml. 100ml

WXQM-2

2.0L

50ml-500ml

4 pcs

50ml, 100ml, 250ml

WXQM-4

4.0L

250ml-1000ml

4 pcs

50ml-500ml

WXQM-6

6.0L

1L-1.5L

4 pcs

50ml-750ml


Table 2 Technical Parameters For Laboratory Horizontal Planetary Ball Mill


Model No.

Voltage

Power

Rotation Speed

Noise

WXQM-0.4

220V-50Hz

0.75KW

70-670 rpm

Less than 58db

WXQM-1

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

WXQM-2

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

WXQM-4

220V-50Hz

0.75KW

70-670 rpm

Less than 60db

WXQM-6

220V-50Hz

0.75KW

70-670 rpm

Less than 60db


Table 3 Technical Parameters For Laboratory Horizontal Planetary Ball Mill

Model No.

Speed Control

Net Weight

Net Dimensions

WXQM-0.4

Frequency Control

86kgs

700*510*570mm

WXQM-1

Frequency Control

86kgs

700*510*570mm

WXQM-2

Frequency Control

86kgs

700*510*570mm

WXQM-4

Frequency Control

86kgs

700*510*570mm

WXQM-6

Frequency Control

86kgs

700*510*570mm








Matching Solutions Recommendation for Materials & Mill BallsMatching Solutions Recommendation for Materials & Mill Ballsommendation for Materials & Mill JarsMatching Solutions Recommendation for Materials & Mill Jars; SpecificationsAvailable Mill Jars & Specificationsleft;">Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.


Available Mill Jars & Specifications

Description of Mill Jars

Available Specifications

304 Stainless steel mill jar

From 50ml to 25L

Alumina ceramic (Corundum) mill jar

From 50ml to 10L

Zirconium mill jar

From 50ml to 5L

Nylon mill jar

From 50ml to 25L

Polyurethane mill jar

From 50ml to 1L

PTFE/Teflon mill jar

From 50ml to 10L

Agate mill jar

From 50ml to 2L

Tungsten carbide mill jar

From 50ml to 2L

316l Stainless steel mill jar

Customized

304 Stainless steel vacuum mill jar

Customized


Matching Solutions Recommendation for Materials & Mill Jars


Materials & Requests

Recommended Solutions

Soil materials and other materials which are not allowed with any impurity contamination

Agate mill jar

Metal or nonmetal which are not allowed with any impurity contamination

Zirconium mill jar

High hardness materials like diamond, tungsten carbide

Tungsten carbide mill jar

Strong add & alkali materials, or other materials under high temperature

PTFE mill jar

Iron ore materials or other materials with low impurity sensitivity

304 stainless steel mill jar

Pigment or materials with later processing under high temperature

Nylon mill jar

Aluminum materials like ceramic glaze

Corundum mill jar

Electronic materials like lithium battery

Polyurethane mill jar

Easily oxidized materials or some materials which need to be protected under special atmosphere



Vacuum mill jar



We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Available Mill Balls & Specifications

Descriptions

Available Specifications (Diameter Size)

304 Stainless steel mill balls

From 1mm to 30mm

316l Stainless steel mill balls

From 1mm to 30mm

Alumina mill balls

From 1mm-50mm

Zirconium mill balls

From 0.1mm to 30mm

Agate mill balls

From 1mm-30mm

Tungsten carbide mill balls

From 2mm to 20mm

Carbon steel mill balls

From 1mm to 30mm

Iron core PU mill balls

From 15mm-30mm


Matching Solutions Recommendation for Materials & Mill Balls

Grinding Balls

Hardness
( Mohs )

Characteristics

Tungsten Carbide Balls

≥9.0

Super wear-resistance, no impurity, anti-corrosion,

High temperature resistance

Zirconia Balls

≥9.0

Super wear-resistance, no impurity, anti-corrosion,

High temperature resistance, commonly used for medicine, food and other materials which can not be allowed with impurity.

Stainless Steel Balls

≥6.0

Wear-resistance, anti-corrosion, high temperature resistance, brings some impurity.

Agate Balls

≥7.0

Super wear-resistance, commonly used for medicine, food and other materials which can not be allowed with impurity, anti-corrosion, high temperature resistance

Alumina Balls

≥8.5

Wear-resistance, anti-corrosion, high temperature resistance, brings impurity



Pictures of Accessories & Spare Parts
