Transparent Glove Box

  • Model No.:GBT-10B
  • Brand:TENCAN
  • Applications:Vacuum glove box is widely used in chemistry, biology and biochemistry, especially in catalyst and metal organics.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

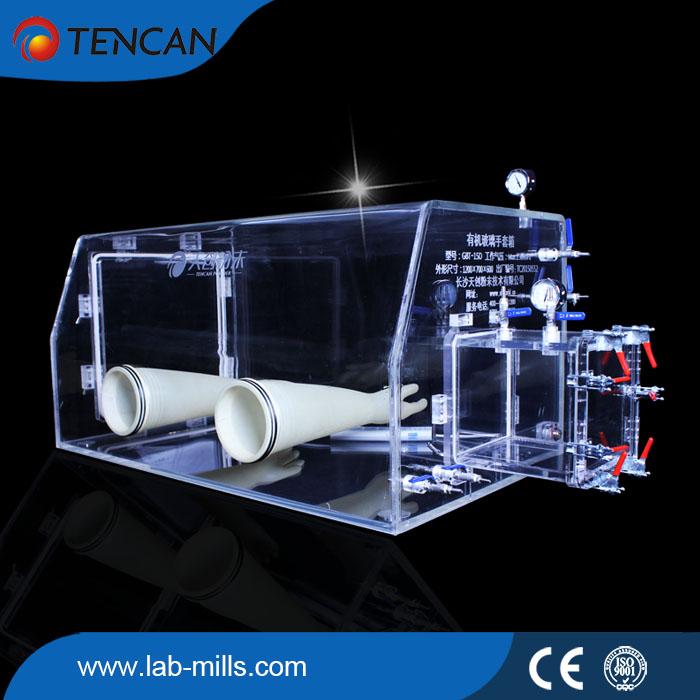

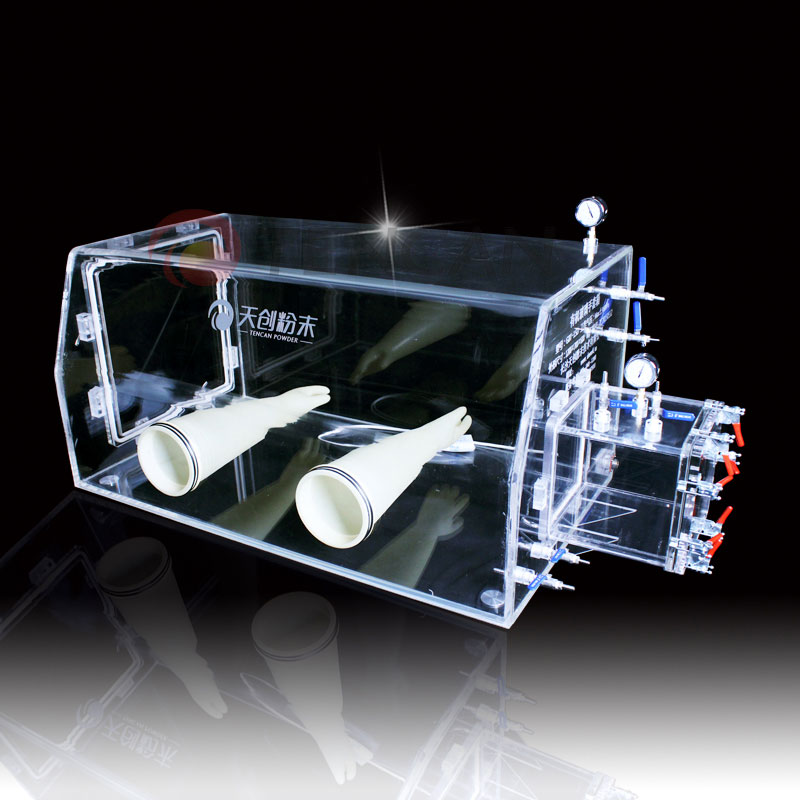

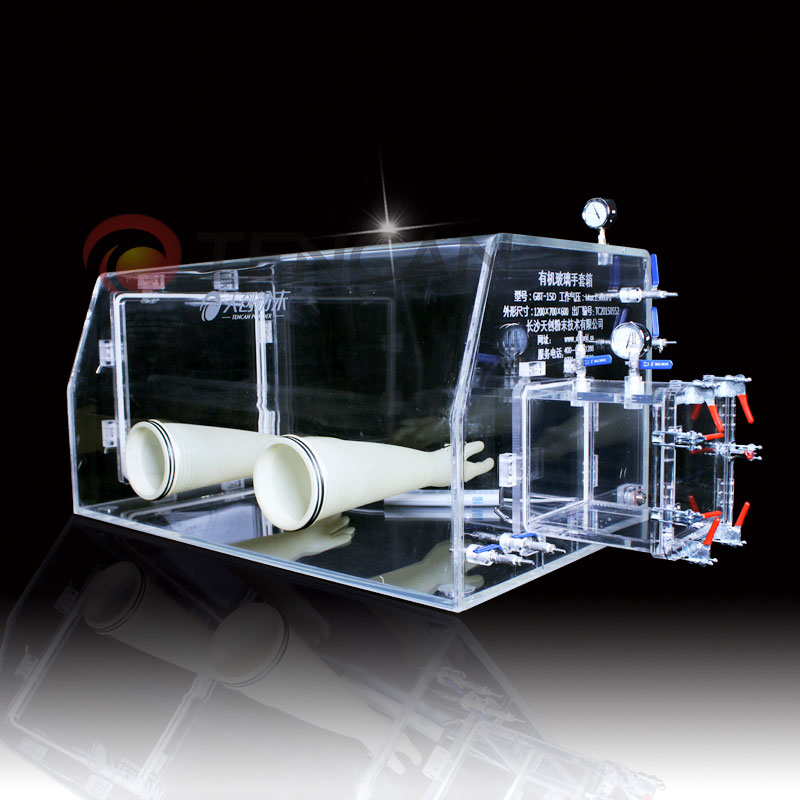

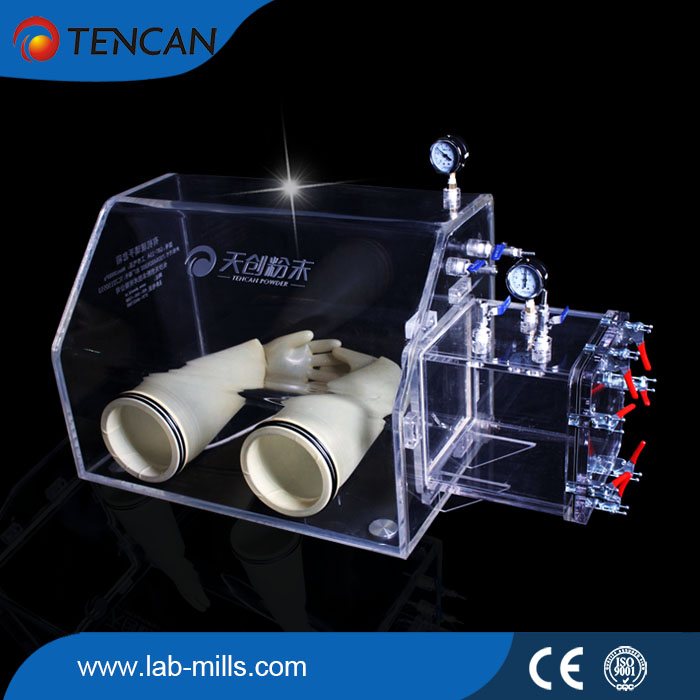

Transparent vacuum glove box is also called Inert gas operation box. In course of scientific experiment, some substances are easy to be oxidized and humidified. That makes reaction of test materials and pre-disposal of samples very difficult and influences experimental process and test result. Acrylic vacuum glove box solves all those problems effectively. Test sample can be input and output safely by the device and you may operate freely, make reaction and testing in anhydrous and anaerobic state in order to ensure experimental operation. It is mainly composed of main box, transit room and side door. If user has special requirement, it can also be customized and designed according to customer needs. There are 2 glove interfaces. In front of the main box, user can clearly view the box inner situation. There are two vacuum ball valves and one vacuum gauge on the right of the main box. And there are also two vacuum ball valves and one vacuum gauge on the transit room. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate the main box from connecting with the outdoor, making material putting in and taking out for lab easily.








Applications of Transparent Vacuum Glove Box
Some materials are very sensitive to water and oxygen when doing chemical experiment.So it is hard to finish the research. Although vacuum vessel can satisfy anaerobic and vacuum degree, it is not convenient for operating the procedure. Vacuum glove box solve the environment and operation problem.So it is widely used in chemistry, biology and biochemistry, especially in catalyst and metal organics.

Acrylic Vacuum Glove Box Warning
* When it is vacuum state, it is not allowed to opening transit room door and glove interface cover, not allowed to discharge the vacuum glove box to check and repair.
* Power: 220V, 50HZ, 1KW.
* It should be vacuum pump for glove interface first or vacuum pump glove interface together with main box. stop vacuum pump for main box first or stop vacuum pump for main box and glove interface together.
* The accessory to connect with vacuum tube should be fit and sealed tightly. It should not exceed 1 atmosphere when filling in inert gas.
1. Simple structure, easy and convenient to use, and light weight.
2. Stable form, highly transparent, resistance for chemical corrosion and climate change in normal situation.
3. Installed multihole socket for doing experiment easily and conveniently.
4. Good airtightness to shield and absorb in α-ray and β-ray to protect people from radiant hurt.
5. Inert gas replacement to keep the anaerobic and anhydrous environment for operation.
Main Parameters of Transparent Glove Box
No. Model No. Box Size
(mm)
Material Glass Thickness
(mm)
Size of Transition Cabinet
(mm)
Remarks
1 GBT-10A 740*450*500 Organic Glass
or Acrylic Glass
10 No Transition Cabinet Isolated from dust, no vacuum
2 GBT-15A 740*450*500 15 240*240*240 Slight vacuum can be pumped, water or oxygen removal system is for option.
3 GBT-30A 740*450*500 30 240*240*240 Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
4 GBT-10B 1000*500*500 10 No Transition Cabinet Isolated from dust, no vacuum
5 GBT-15B 1000*500*500 15 240*240*240 Slight vacuum can be pumped, water or oxygen removal system is for option.
6 GBT-30B 1000*500*500 30 240*240*240 Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
7 GBT-10C 1200*600*600 10 No Transition Cabinet Isolated from dust, no vacuum
8 GBT-15C 1200*600*600 15 240*240*240 Slight vacuum can be pumped, water or oxygen removal system is for option.
9 GBT-30C 1200*600*600 30 240*240*240 Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
10 GBT-10D 1200*800*700 10 No Transition Cabinet Isolated from dust, no vacuum
11 GBT-15D 1200*800*700 15 240*240*240 Slight vacuum can be pumped, water or oxygen removal system is for option.
12 GBT-30D 1200*800*700 30 240*240*240 Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
