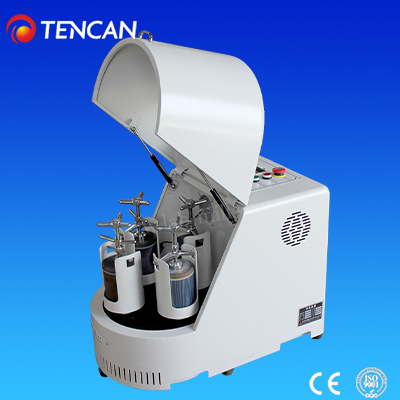

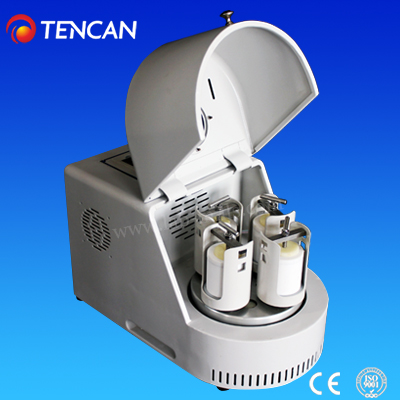

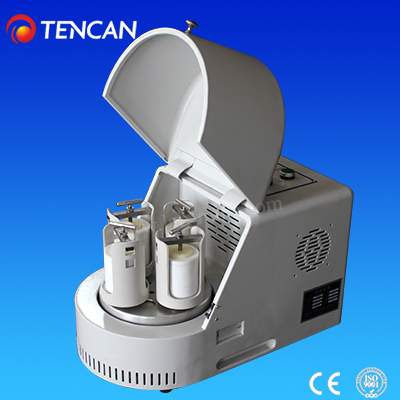

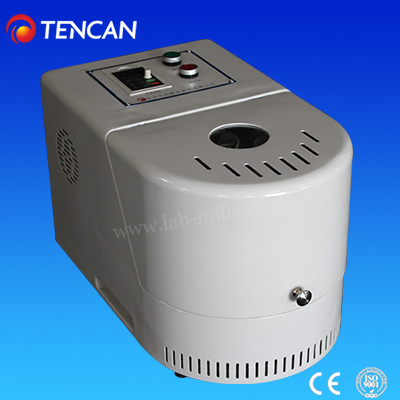

Mini Vertical Planetary Ball Mill

  • Model No.:XQM-0.4A
  • Brand:TENCAN
  • Applications:The planetary ball mill is widely used in many fields of geology, mine, metallurgy, electric industry, construction, ceramics, chemicals, light industry, medicine, environmental protection etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

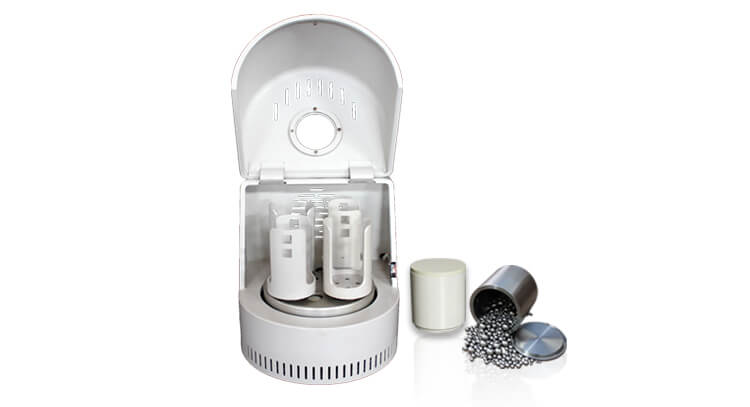

Mini vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (you can get four samples from each grinding batch). It is possible for you to grind powder samples under the vacuum state if the ball mill is loaded with vacuum mill jars






Vertical planetary ball mill often has four ball grinding jars installed on one turntable. When the turntable rotates, the jar axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Smallest granularity of output powder can be achieved to be as small as 0.1μm by this kind of ball mill.

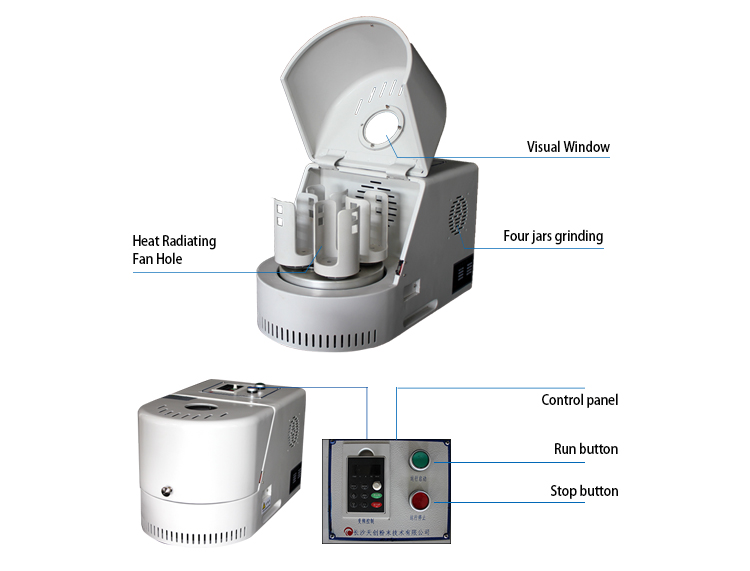

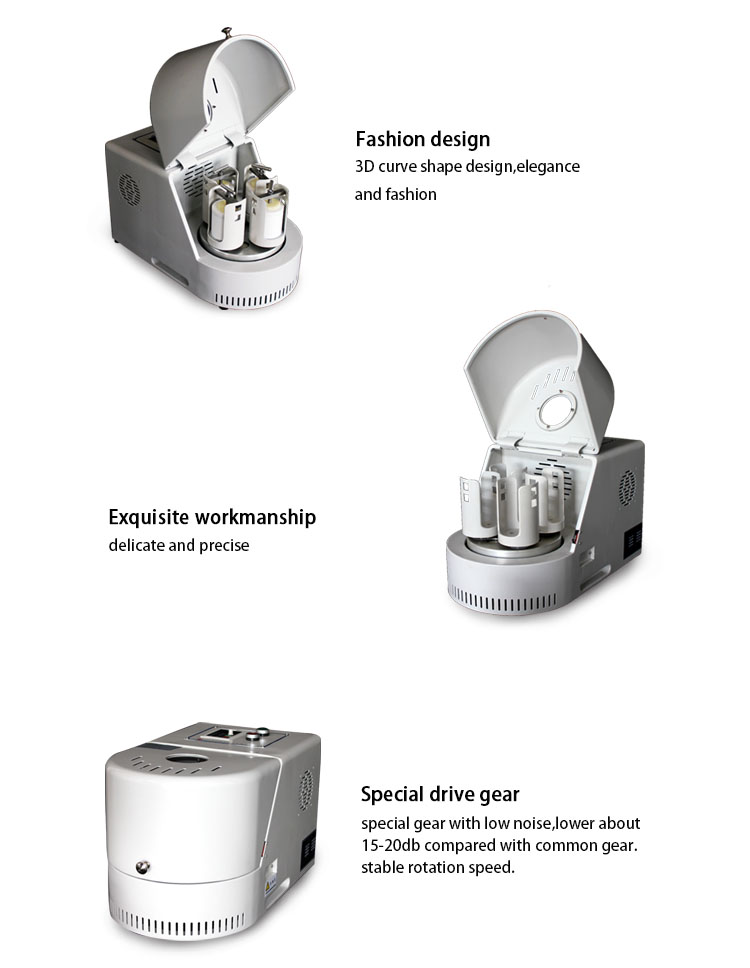

Features of Tencan Mini Size Vertical Planetary Ball Mill

The ball mill shell is welded with thick steel plate, which has high strength, impact resistance, deformation resistance, fine workmanship, strong and beautiful appearance. The material of mechanic parts is strictly processed by heat treatment process and numerical control processing technology. The gear box is adopted with quasi-sealed groove embedded structure, and the drivegear is made of wear-resistant precision gear. The machine frame and structure are fully considered in design to ensure the stable, safe and reliable operation of the ball mill under long-term and high load conditions, and to effectively achieve the effect of noise reduction in the operation of the machine. With the touch screen of micro-computer, machine operation is becoming convenient, the interface is more simple and intuitive,forward and reversal alternating control can be achieved easily. It owns functions of timing and power-off memory.

Advantages of Tencan Mini Szie Vertical Planetary Ball Mill

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.

3. Four powder samples from different sizes and different materials can be produced at one time.

4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.

6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.


Application Cases of Planetary Ball Mill



Test Report of Grinding Granularity by Planetary Ball Mill


Technical Features of Mini Vertical Planetary Ball Mill
Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding jars can be used for each grinding
Max Capacity For Materials Less than 1/3 of each jar volume
Total max capacity: less than 1/3 of total jars volume
Feed Size Soft and crispy materials ≤ 10mm
Other hard materials ≤ 3mm
Output Granularity Smallest granularity can be achieved to 0.1μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Available Mill Jars 304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU,
Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide


Main Parameters of Mini Vertical Planetary Mill Ball
Model Power
(KW)
Voltage Dimension(mm)) Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run Time of Forward & Reversal Rotation
(min)
XQM-0.4A 0.25 220V-50Hz 530*300*340 45-435 90-870 1-9999 1-999
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

Available Mill Jars & Specifications

Description of Mill Jars

Available Specifications

304 Stainless steel mill jar

From 50ml to 25L

Alumina ceramic (Corundum) mill jar

From 50ml to 10L

Zirconium mill jar

From 50ml to 5L

Nylon mill jar

From 50ml to 25L

Polyurethane mill jar

From 50ml to 1L

PTFE/Teflon mill jar

From 50ml to 10L

Agate mill jar

From 50ml to 2L

Tungsten carbide mill jar

From 50ml to 2L

316l Stainless steel mill jar

Customized

304 Stainless steel vacuum mill jar

Customized


Matching Solutions Recommendation for Materials & Mill Jars

Materials & Requests

Recommended Solutions

Soil materials and other materials which are not allowed
with any impurity contamination

Agate mill jar

Metal or nonmetal which are not allowed with
any impurity contamination

Zirconium mill jar

High hardness materials like diamond, tungsten carbide

Tungsten carbide mill jar

Strong add & alkali materials, or other materials
under high temperature

PTFE mill jar

Iron ore materials or other materials with
low impurity sensitivity

304 stainless steel mill jar

Pigment or materials with later processing
under high temperature

Nylon mill jar

Aluminum materials like ceramic glaze

Corundum mill jar

Electronic materials like lithium battery

Polyurethane mill jar

Easily oxidized materials or some materials which need to
be protected under special atmosphere

 Vacuum mill jar



We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Available Mill Balls & Specifications

Descriptions

Available Specifications (Diameter Size)

304 Stainless steel mill balls

From 1mm to 30mm

316l Stainless steel mill balls

From 1mm to 30mm

Alumina mill balls

From 1mm-50mm

Zirconium mill balls

From 0.1mm to 30mm

Agate mill balls

From 1mm-30mm

Tungsten carbide mill balls

From 2mm to 20mm

Carbon steel mill balls

From 1mm to 30mm

Iron core PU mill balls

From 15mm-30mm


Matching Solutions Recommendation for Materials & Mill Balls


Grinding Balls

Hardness
( Mohs )

Characteristics

Tungsten Carbide Balls

≥9.0

Super wear-resistance, no impurity, anti-corrosion,

High temperature resistance

Zirconia Balls

≥9.0

Super wear-resistance, no impurity, anti-corrosion,

High temperature resistance, commonly used for medicine, food and other materials
which can not be allowed with impurity.

Stainless Steel Balls

≥6.0

Wear-resistance, anti-corrosion, high temperature resistance, brings some impurity.

Agate Balls

≥7.0

Super wear-resistance, commonly used for medicine, food and other materials which
can not be allowed with impurity, anti-corrosion, high temperature resistance

Alumina Balls

≥8.5

Wear-resistance, anti-corrosion, high temperature resistance, brings impurity





Pictures of Accessories & Spare Parts
