Middle-sized Bench-top High Speed Centrifuge 3-18N/3-18R

  • Product Name::Middle-sized Bench-top High Speed Centrifuge
  • Model No.:3-18N/3-18R
  • Brand:HENGNUO
  • Application Fields:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 1. Microcomputer control, AC variable frequency motor drive.

2. Small volume and compact structure save laboratory space.

3. Adopting new composite material as rotor, super light, high strength,


slow heat conduction, strong corrosion resistance, fast speed up and down.

4. Large-screen LCD display, simple and intuitive for operation.

5. Automatically calculate and set RCF value of centrifuge, rotation speed

and centrifugal force are displayed synchronously, and parameters can be

changed without shutdown during operation

6. Using electronic door locks, with various protections such as over-speed,

over-temperature, unbalance, and electronic door locks to enhance safety

7. It can be equipped with multiple capacity rotors for meeting different

experimental requirements of customers.

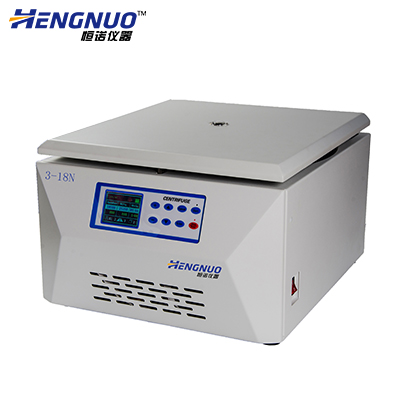

Middle-sized Bench-top High Speed Centrifuge 3-18N (Normal Temperature)

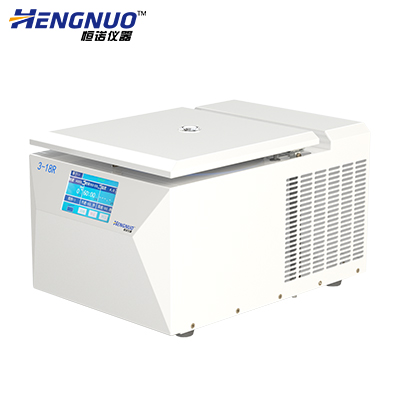

Middle-sized Bench-top High Speed Centrifuge 3-18R (Refrigerated)






1. Microcomputer control, AC variable frequency motor drive.

2. Small volume and compact structure save laboratory space.

3. Adopting new composite material as rotor, super light, high strength,


slow heat conduction, strong corrosion resistance, fast speed up and down.

4. Large-screen LCD display, simple and intuitive for operation.

5. Automatically calculate and set RCF value of centrifuge, rotation speed

and centrifugal force are displayed synchronously, and parameters can be

changed without shutdown during operation

6. Using electronic door locks, with various protections such as over-speed,

over-temperature, unbalance, and electronic door locks to enhance safety

7. It can be equipped with multiple capacity rotors for meeting different

experimental requirements of customers.


Technical Parameters


Model No.

3-18NNormal Temperature

3-18R(Refrigerated

Max Rotation Speed

18500rpm

Max Relative Centrifugal Force

25250*g

Maximum Capacity

4*100ml

Timing Range

1min~99min

Total Noise

< 65dB(A)

Total Power

450W

1200W

Diameter of Centrifugal Cavity

420mm

320mm

Temperature Setting Range

/

-20℃~40℃

Temperature Accuracy

/

±1.0℃

Power Supply

AC 220±22V 50Hz 10A

AC 220±22V 50Hz 16A

Outline Dimensions

(L*W*H)

545×468×350(mm)

630×470×340(mm)

Net Weight

45kgs

75kgs


Applicable Rotors





#1 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 12*1.5ml

Max speed: 18500rpm

Max relative centrifugal force:2525*g

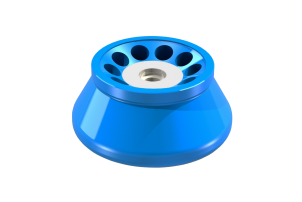

#2 Angle Rotor



Single tube capacity: 5ml

Total capacity: 10*5ml

Max speed: 15000rpm

Max relative centrifugal force:15300*g

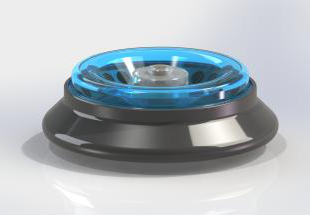

#3 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 24*1.5ml

Max speed: 14000rpm

Max relative centrifugal force: 18575*g

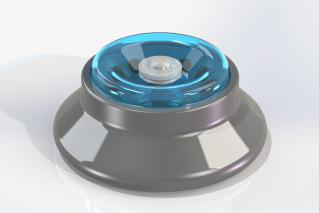

#4 Angle Rotor



Single tube rotor: 10ml

Total capacity: 12*10ml

Max speed: 13000rpm

Max relative centrifugal force: 17370*g

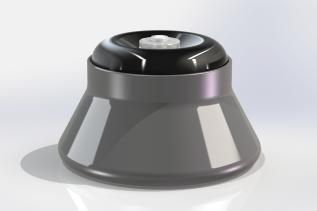

#5 Angle Rotor



Single tube capacity: 15ml

Total capacity: 12*15ml

Max speed: 12000rpm

Max relative centrifugal force: 15455*g






#6 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 36*1.5ml

Max capacity: 15000rpm

Max relative centrifugal force: 20753*g

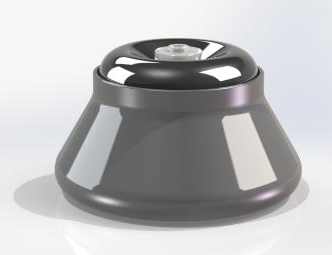

 #7 Angle Rotor



Single tube capacity: 50ml

Total capacity: 6*50ml

Max speed: 12000rpm

Max relative centrifugal force: 15805*g

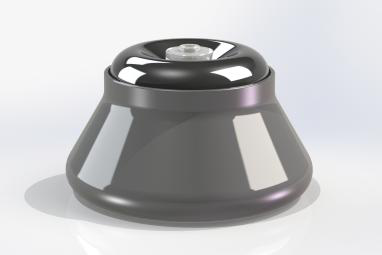

 #8 Angle Rotor



Single tube capacity: 50ml cone

Total capacity: 6*50ml cone

Max speed: 11000rpm

Max relative centrifugal force: 13274*g






#9 Angle Rotor





Single tube capacity: 100ml

Total capacity: 4*100ml

Max speed: 11000rpm

Max relative centrifugal force: 13000*g





#10 PCR Rotor





Single tube capacity: 0.2ml PCR tube

Total capacity: 4/8*0.2ml PCR tube

Max speed 15000rpm

Max relative centrifugal force: 17357*g





#11 Angle Rotor



Single tube capacity: 0.25-1ml capillary

Total capacity: 24*(0.25-1ml)

Max speed: 12000rpm

Max relative centrifugal force: 10142*g

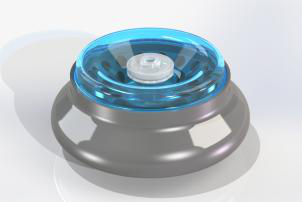

#12 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 48*1.5ml

Max speed: 12000rpm

Max relative centrifugal force: 14890*g



 Applicable Rotors for 3-18N/3-18R









#1 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 12*1.5ml

Max speed: 18500rpm

Max relative centrifugal force:2525*g













#2 Angle Rotor



Single tube capacity: 5ml

Total capacity: 10*5ml

Max speed: 15000rpm

Max relative centrifugal force:15300*g



















#3 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 24*1.5ml

Max speed: 14000rpm

Max relative centrifugal force: 18575*g



















#4 Angle Rotor



Single tube rotor: 10ml

Total capacity: 12*10ml

Max speed: 13000rpm

Max relative centrifugal force: 17370*g











#5 Angle Rotor



Single tube capacity: 15ml

Total capacity: 12*15ml

Max speed: 12000rpm

Max relative centrifugal force: 15455*g











#6 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 36*1.5ml

Max capacity: 15000rpm

Max relative centrifugal force: 20753*g

















#7 Angle Rotor



Single tube capacity: 50ml

Total capacity: 6*50ml

Max speed: 12000rpm

Max relative centrifugal force: 15805*g













#8 Angle Rotor



Single tube capacity: 50ml cone

Total capacity: 6*50ml cone

Max speed: 11000rpm

Max relative centrifugal force: 13274*g

















#9 Angle Rotor





Single tube capacity: 100ml

Total capacity: 4*100ml

Max speed: 11000rpm

Max relative centrifugal force: 13000*g

















#10 PCR Rotor





Single tube capacity: 0.2ml PCR tube

Total capacity: 4/8*0.2ml PCR tube

Max speed 15000rpm

Max relative centrifugal force: 17357*g















#11 Angle Rotor



Single tube capacity: 0.25-1ml capillary

Total capacity: 24*(0.25-1ml)

Max speed: 12000rpm

Max relative centrifugal force: 10142*g















#12 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 48*1.5ml

Max speed: 12000rpm

Max relative centrifugal force: 14890*g
