Agate planetary Mill Jar

  • Brand:TENCAN
  • Applications:Natural agate has advantages of high hardness, super wear-resistance material without impurities. Thus, mill jar is the first choice for high purity material.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

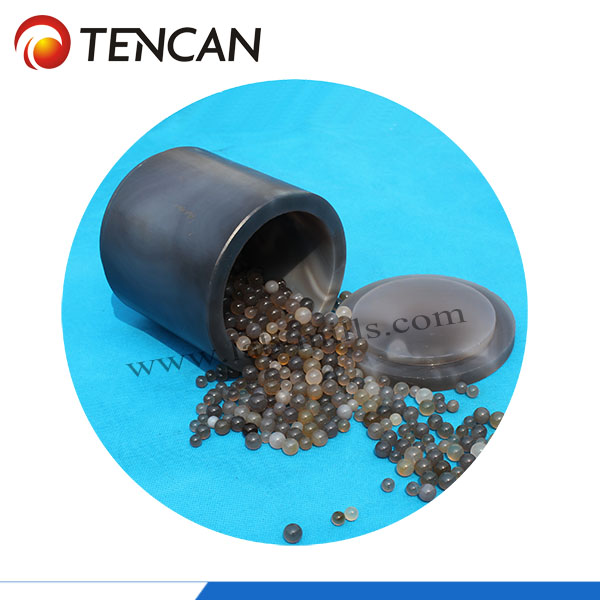

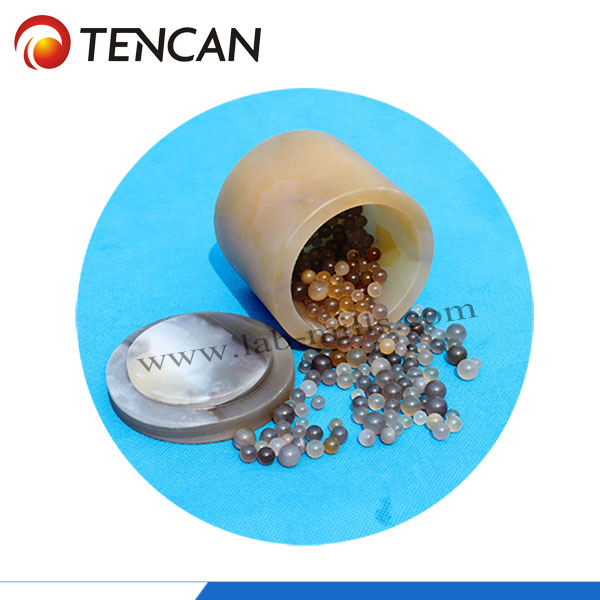

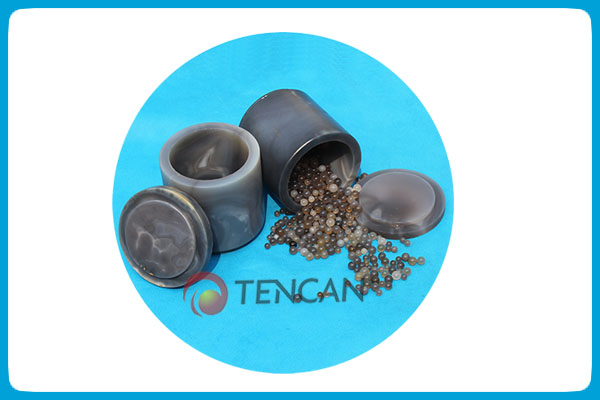

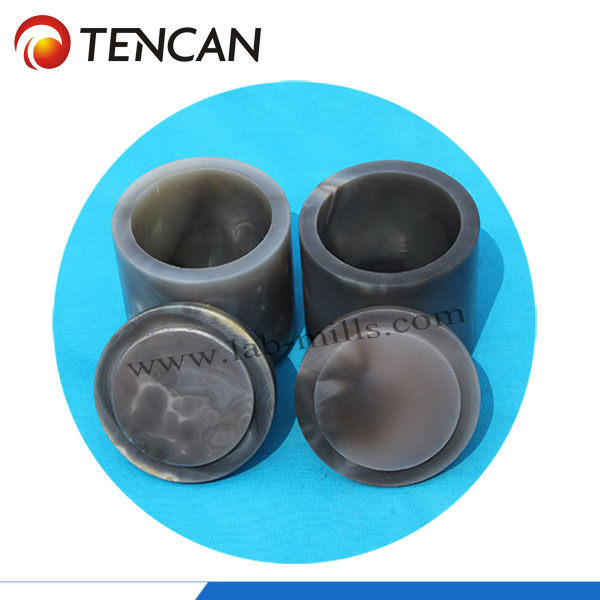

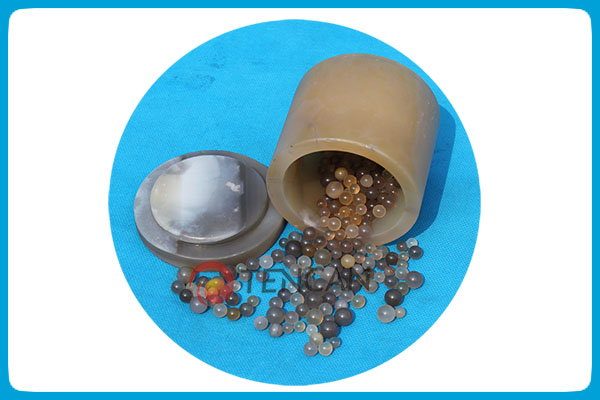

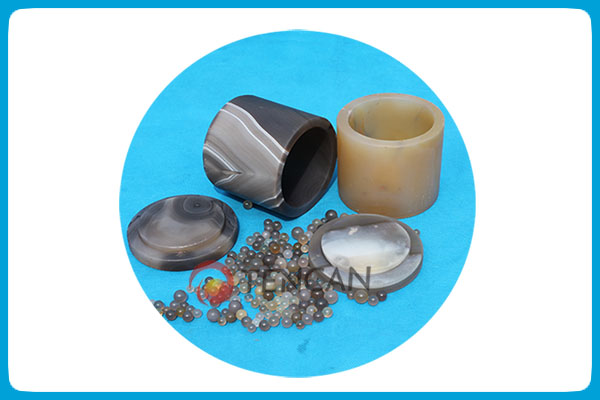

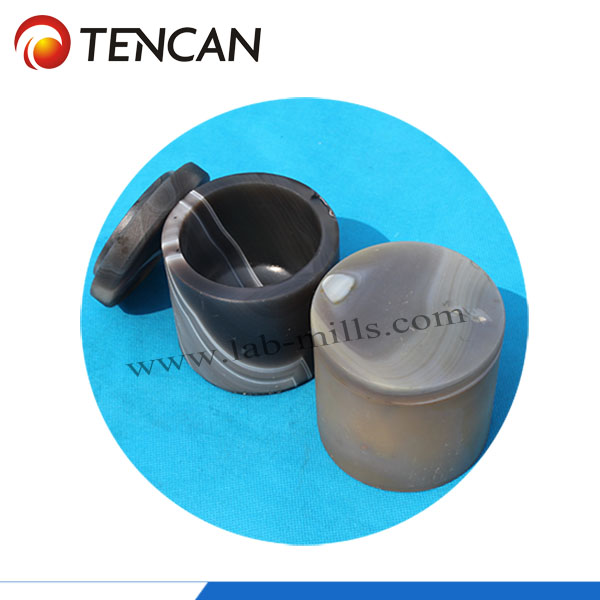

Tencan agate mill jars are made of natural agate with advantages of no impurities, no cracks, glossy, high-quality, strong vibration resistance. After experiments, it shows that the item have no cracks, no bump after high-speed vibration abrasion.









1. No impurities, no crack, high gloss, resistance to strong shaking force. Experiment has proved that after high speed vibration and wearing, agate jar has no crack or no bump phenomenon.
2. TENCAN agate mill jar is made of Brazil and Uruguay agate nature raw material with bright color and high hardness.
3. With characteristics of high temperature resistance, strong acid resistance and alkali resistance. Agate mill jar can be used in the acid grinding media.
Parameter of Agate Mill Jar
Volume of Jar Outside Diameter (mm) Inner Diameter (mm) Inner Depth (mm) Height of Not Containing Cover (mm) Total Height (mm) Weight (KG)
50ml 65 45 37 49 57 0.36
100ml 75 50 52 62 70 0.56
150ml 90 62 55 70 80 0.93
250ml 94 73 70 80 90 0.84
300ml 102 79 71 81 95 1.18
400ml 106 80 80 93 103 1.38
500ml 106 82 90 100 108 1.31
1L 130 107 114 126 141 2.54
2L 156 130 150 170 190 4.43
Remarks: 1. Size deviation within ±2mm; 2. Every specification has A or B two grades with the same size(B grade agate packaged 1mm stainless steel outside; 3 The above weight is for A grade agate jars, deviation within ±0.2KG.
Mill Balls

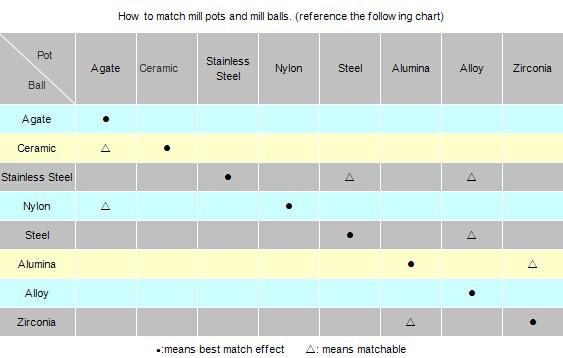

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
