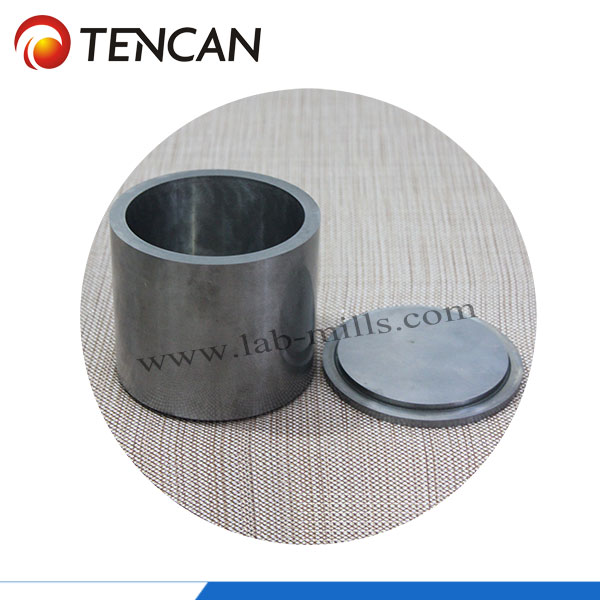

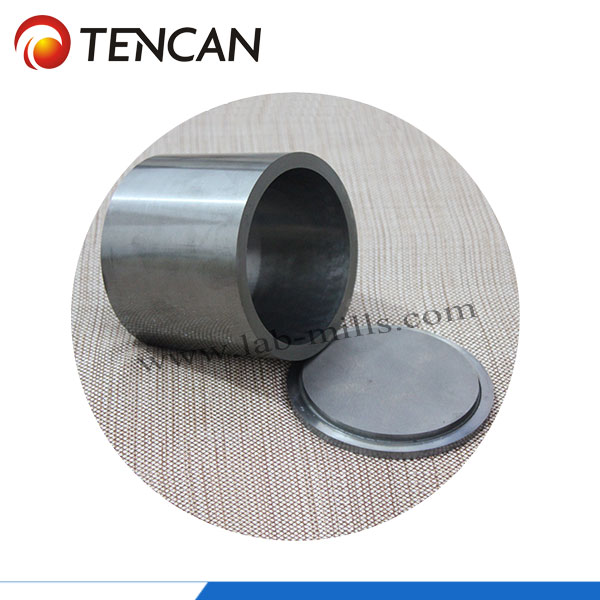

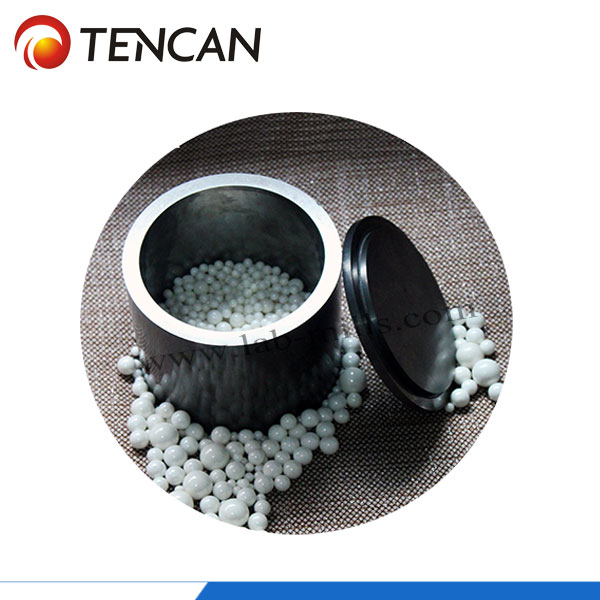

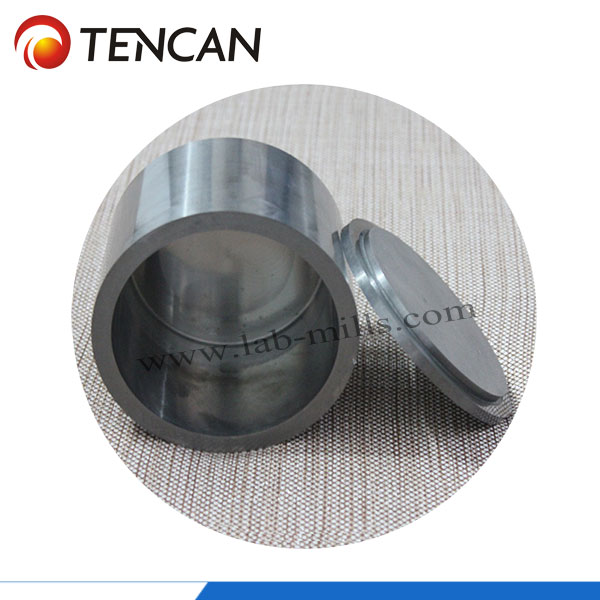

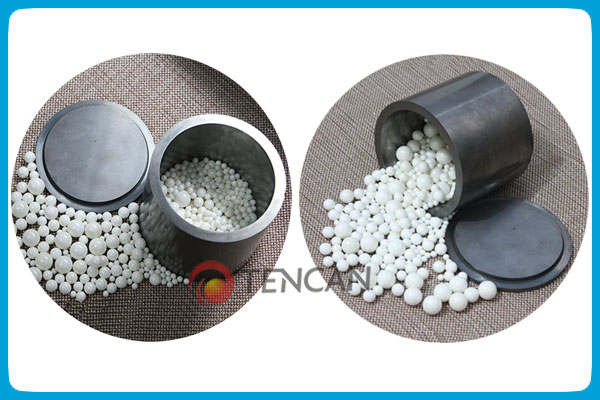

Tungsten Carbide planetary Mill Jar

  • Brand:TENCAN
  • Applications:Tungsten carbide ball mill jar is used as grinding jar of planetary ball mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
Tungsten carbide ball mill jar is used as grinding jar of planetary ball mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder.




1. High temperature resistance: The Maximum temperature which it bears can be amounted to 1000 centigrade.
2. High wearing resistance even at temperature of 500 centigrade.
3. High hardness: super high hardness is the key factor of tungsten carbide mill jar.
4. Strong toughness: not only it owns high hardness, but also good toughness.
Parameters of Tungsten Carbide Mill Jar for Planetary Ball Mill
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
50ml 38 48 45 50 54 0.4
100ml 48 62 59 65 72 0.9
250ml 71 87 69 75 83 1.7
500ml 90 106 93 100 108 2.9
1L 115 131 103 110 118 4.2
1.5L 115 131 143 150 158 5.3
2L 141 157 133 140 148 6.5
2.5L 141 157 168 175 183 7.6
3L 141 157 198 205 213 8.4
4L 162 178 198 205 213 10
5L 182 192 195 200 209 9.3
10L 232 243 245 250 259 15
15L 261 271 279 286 295 18.7
20L 310 320 268 275 284 23.4
25L 310 320 331 338 347 25.9
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG


Parameters of Tungsten Carbide Roll Mill Jar
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
500ml 82 88 135 138 144 1.1
1L 100 106 162 165 172 1.8
2L 124 131 196 199 206 2.9
3L 152 158 207 210 217 3.6
5L 172 178 257 262 269 5.3
10L 233 243 295 300 307 11.9
15L 263 271 335 340 347 12.7
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG

Mill Balls:

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
