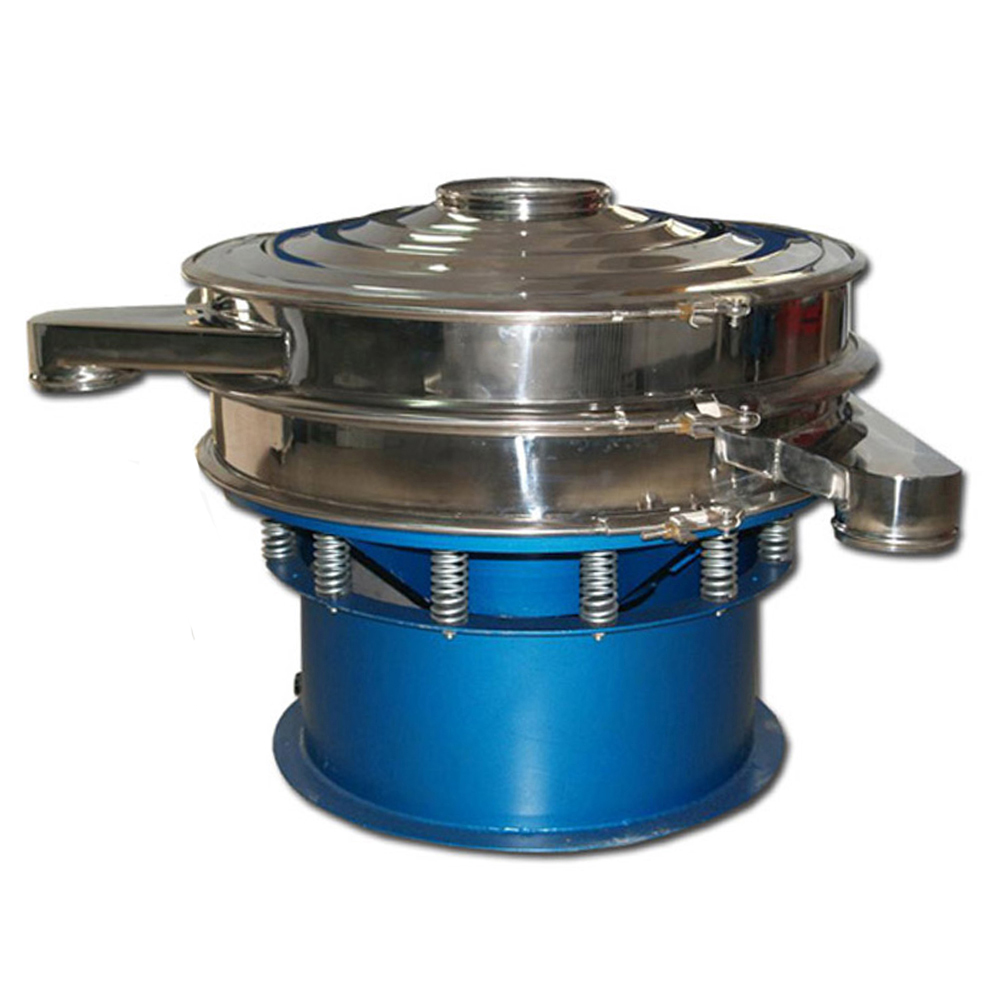

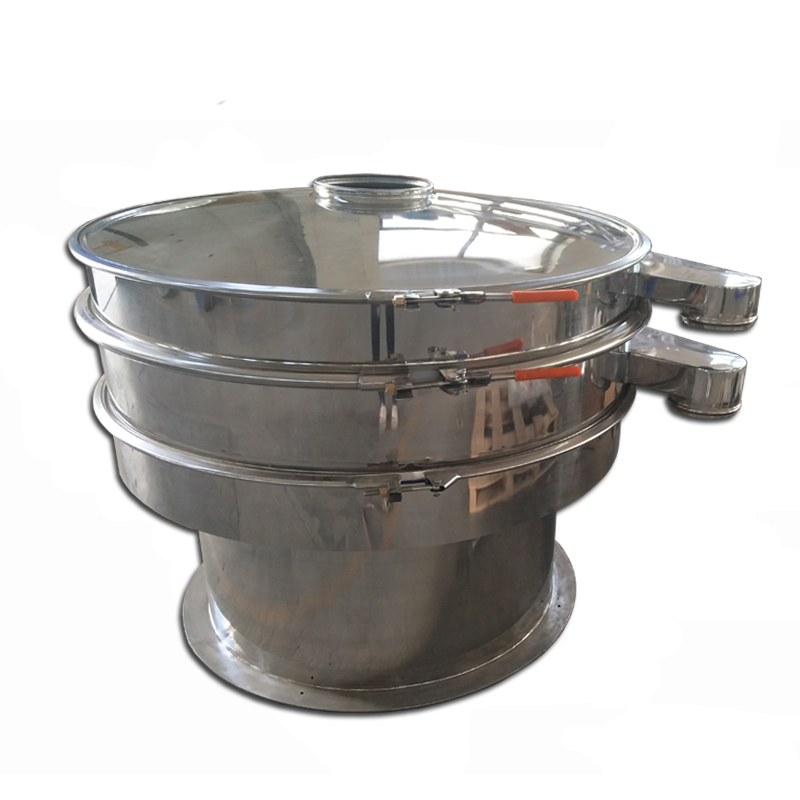

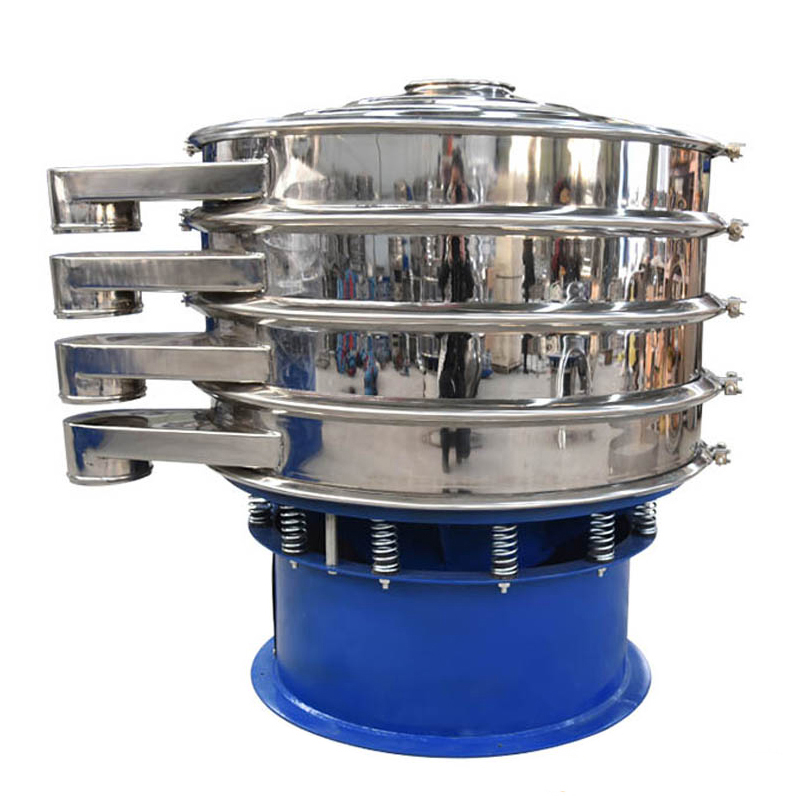

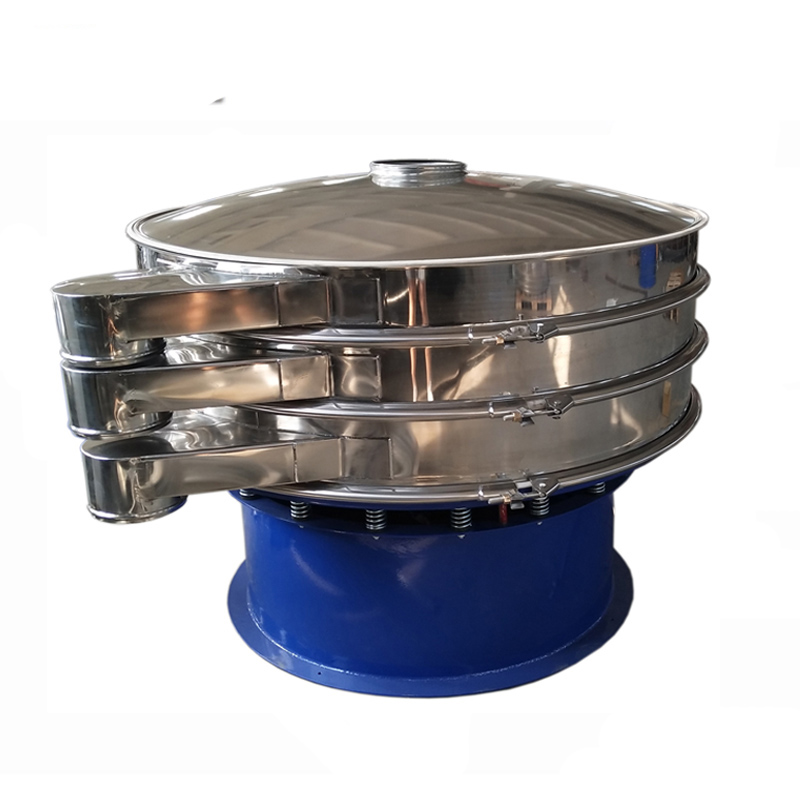

3D Rotary Vibrating Screen

  • Product Name:3D Rotary Vibrating Screen
  • Model No. :SY-400----SY-1800
  • Brand:TENCAN
  • Applications:SY series of 3D rotary vibrating screen is applicable to any powder, granule, liquid screening and filtering of the industry.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 3D Rotary vibrating screen introduction:

3D Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. 3D rotary vibrating  screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.

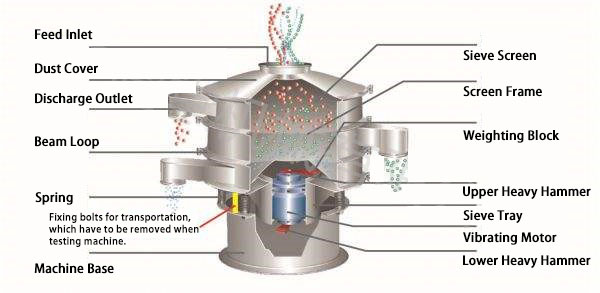

 Working Principle:

The rotating motion of the motor is transformed into a horizontal, vertical and inclined three-dimensional motion by using the heavy hammer (unbalanced weight) installed up and down the motor shaft, and then the motion is transmitted to the screen surface to make the material do an outward involute motion on the screen surface. Hence, it is also called rotary vibrating screen. This series of rotary vibrating screen has advantages of long running track and high utilization rate of screen surface. Adjusting the phase angle of heavy hammers at the upper and lower ends changes the moving track of materials on screen surface for precisely fine screening and probability sieving, and etc.


 Applications:

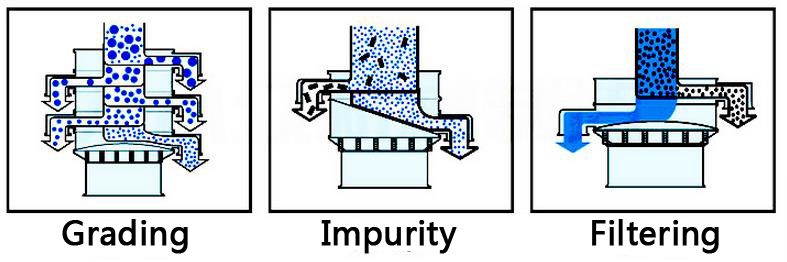

The product is applicable to any powder, granule, liquid screening and filtering of the industry. SY series rotary vibration screen is widely used in chemical industry, medicine powder, liquid, paint, pigments, cosmetics, oil, resin, ceramic slurry, clay slurry, lime, refractory powder at the end, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, MSG, spices, milk powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate, help solvents, fire extinguishing agents, as well as the environmental protection industry waste water, waste water treatment process of screening, filtering.

Applicable Materials:

Chemical industry: resin powder, pigment, laundry powder, micron powder, painting, soda ash, lemon powder.

Grinding & ceramic industry: alumina, Quartz sand, clay slurry and spray soil particles,

Food industry: Sugar, salt, alkali, monosodium glutamate, milk powder, soymilk, yeast, juice, soy sauce, vinegar.

Paper making industry: paste cloth coating, clay mud, black and white liquid, waste liquid, paper making wave, water recovery.

Metallurgical Industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder. Welding rod powder.

Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and Western medicine granule.

Environmental protection: garbage, human and animal raw urine, waste oil, food waste water, waste water processing.


Technical Parameters of 3D Rotary Vibrating Screen

Model

Effective diameter

For sieving surface

Screen  size

Layer

Powder(KW)

Vibration motor

Common motor

 SY-400

380mm

2-500 mesh

1-5

0.18KW

0.25KW

SY-600

580mm

2-500 mesh

1-5

0.25KW

0.55KW

SY-800

780mm

2-500 mesh

1-5

0.55KW

0.75KW

SY-1000

970mm

2-500 mesh

1-5

1.1KW

1.1KW

SY-1200

1170mm

2-500 mesh

1-5

1.1KW

1.5KW

SY-1500

1470mm

2-500 mesh

1-5

1.5KW

2.2KW

SY-1800

1770mm

2-500 mesh

1-5

4KW

3.0KW
