Floor-standing High Speed Refrigerated Centrifuge 5-21R

  • Product Name:Floor-standing High Speed Refrigerated Centrifuge
  • Model No.:5-21R
  • Brand:HENGNUO
  • Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

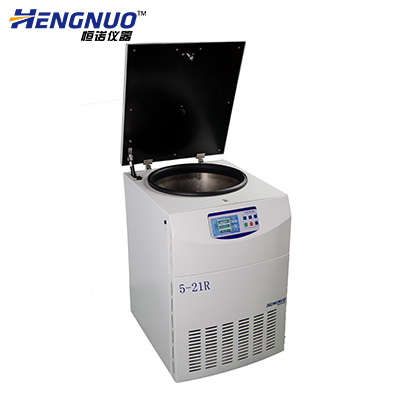

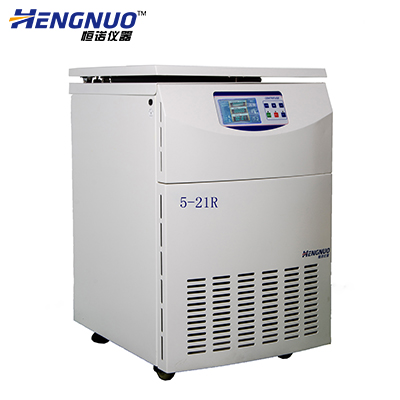

 5-21R (Refrigerated) Floor-standing High Speed Refrigerated Centrifuge



Product Introduction

1. Floor-standing high-speed refrigerated centrifuge is mainly used in the fields of blood stations, diagnostic laboratories,
bio
-pharmaceuticals, new materials, POCT R & D and production.

2. The instrument is equipped with Henguo patented super-light composite rotors, which have advantages
of high strength, strong corrosion resistance, fast speed up and down.

3. It is driven by AC variable frequency brushless motor, which is almost maintenance-free.

4. Equipped with large screen LCD, it displays and stores 40 sets of programming parameters for operation.

5. 304 Stainless steel centrifugal cavity and double automatic lock cover ensure safety.

6. With set protections of over-speed, over-temperature, door cover self-locking, unbalance, it ensures safety of human and machine.

7. Equipped with Imported compressor unit, and environmentally friendly non-fluorinated refrigerant.

8. The bottom of centrifuge has fixed casters for easy movement.

9. Small and compact machine body, small total power, economic and environmentally friendly.






5-21R (Refrigerated) Floor-standing High Speed Refrigerated Centrifuge



Features

1. Floor-standing high-speed refrigerated centrifuge is mainly used in the fields of blood stations,
diagnostic laboratories, bio-pharmaceuticals, new materials, POCT R & D and production.

2. The instrument is equipped with Henguo patented super-light composite rotors,
which have advantages of high strength, strong corrosion resistance, fast speed up and down.

3. It is driven by AC variable frequency brushless motor, which is almost maintenance-free.

4. Equipped with large screen LCD, it displays and stores 40 sets of programming parameters for operation.

5. 304 Stainless steel centrifugal cavity and double automatic lock cover ensure safety.

6. With set protections of over-speed, over-temperature, door cover self-locking, unbalance, it ensures safety of human and machine.

7. Equipped with Imported compressor unit, and environmentally friendly non-fluorinated refrigerant.

8. The bottom of centrifuge has fixed casters for easy movement.

9. Small and compact machine body, small total power, economic and environmentally friendly.



 Technical Parameters of 5-21R

Model No.

5-21R (Refrigerated)

Max Speed

21000rpm

Power Supply

AC 220±22V 50Hz 35A

Max RCF

47580*g

Total Power

1.5KW

Max Capacity

6×500ml4×750ml

Total Noise

< 65dBA

Timing Range

1min99min59sec

Diameter of Centrifugal Cavity

500mm

Temperature Setting Range

-20℃40℃



Outline Dimensions

(L*W*H)

7363860(mm)

Temperature Accuracy

±1.0℃

Packing Dimensions

(L*W*H)

790×69900(mm)

Minimum acceleration / deceleration time

168s/168s

Net Weight

190kgs

Speed Accuracy

±20r/min

Gross Weight

205kgs

 Applicable Rotors for 5-21R

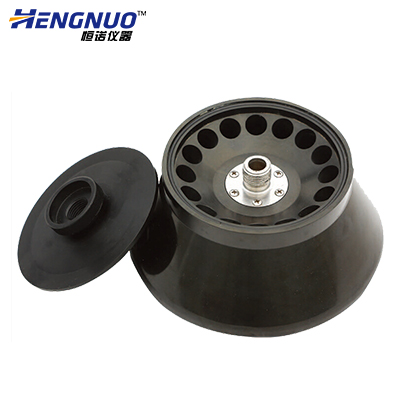

#1 Angle Rotor



Single tube capacity: 1.5ml

Total capacity: 24*1.5ml

Max speed: 21000rpm

Max RCF: 42900*g




#2 Angle Rotor



Single tube capacity: 10ml

Total capacity: 16*10ml

Max speed: 21000rpm

Max RCF: 47580*g





#3 Angle Rotor

Single tube capacity: 50ml

Total capacity: 8*50ml

最高转速:15000rpm

Max speed: 15000rpm

Max RCF: 27720*g



#4 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max capacity: 20000rpm

Max RCF: 43000*g





#5 Angle Rotor

Single tube capacity: 100ml
Total capacity: 8*100ml

Max speed: 12000rpm

Max RCF: 19830*g

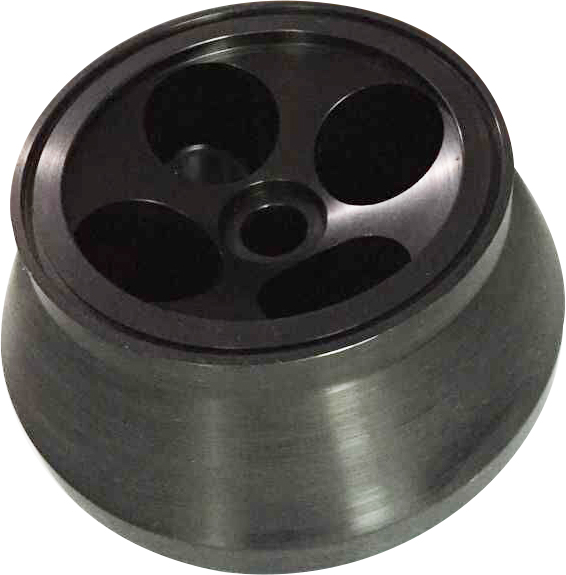

#6 Angle Rotor

Single tube capacity: 250ml

Total capacity: 4*250ml

Max speed: 12000rpm

Max RCF: 19960*g





#7 Angle Rotor

Single tube capacity: 250ml

Total capacity: 6*250ml

Max speed: 10000rpm

Max RCF: 18500*g



#8 Angle Rotor

Single tube capacity: 500ml

Total capacity: 6*500ml

Max speed: 8000rpm

Max RCF: 11680*g
