Bench-top High Speed Micro Centrifuge 1-14

  • Product Name::Bench-top High Speed Micro Centrifuge
  • Model No.:1-14
  • Brand:HENGNUO
  • Applications: life science, medicine, chemical engineering,
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

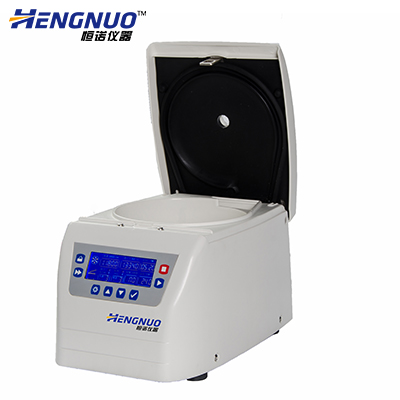

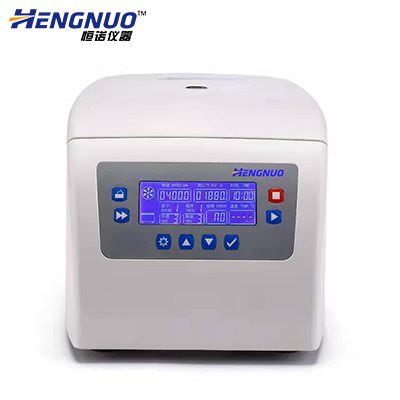

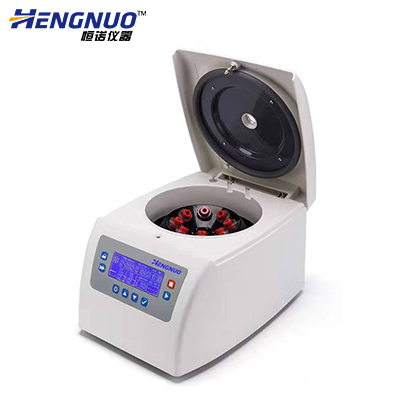

Bench-top High Speed Micro Centrifuge
Model No. 1-14
Bench-top High Speed Micro Centrifuge 1-14 is suitable for centrifugal tubes of 5ml/ 2.0ml/ 1.5ml/ 0.5ml/ 0.2ml centrifuge experiment,
which is widely used in life science, medicine, chemical engineering, and etc.



Product Features:

1.Large LCD display showing all operating parameters.

2.After finishing operation, it sounds reminder and the upper cover shall open automatically to facilitate cooling sample.

3. Unique indicator shows temperature inside centrifuge to ensure safety of sample.

4. Instant centrifugal function, maximum speed setting expands its applications.

5. After reaching set speed, you can modify operation parameters.

6. Dynamic icon with unique design sense in operation panel displays operation status in real-time.

7. Rotation speed and centrifugal force do not need to be switched, which is convenient for data reading.

8.Faster acceleration / deceleration rate benefits to separate more samples in a shorter time.

9.Displaying of operation process and reminding of error code.

10. High strength and corrosion-resistant rotor which is resistant to high temperature and high pressure disinfection (excluding rotor cover) .




Technical Parameters

Model No.

1-14

Power Supply

220VAC±10% 50-60Hz  110VAC±10% 60Hz

Power

250W

Drive Motor

AC Frequency Motor (DC Brushless Motor)

Time Setting

1 s-99 min 59s

Max Rotation Speed

14800rpm(100-14800rpm)

Increment: 100rpm

Max relative centrifugal force

21000×g(100-21000×g)

Increment: 100×g

Max Capacity

24×1.5/2.0ml

Maximum centrifugal medium density

1.2g/ml

Accelerating time to maximum speed

18s

Decelerating time from maximum speed

18s

Noise

≤60db(A)

Net Weight

12Kgs

Dimensions (L*W*H)

360mm×245mm×230mm


Order Information


Product Name



Description of Goods



Max Rotation speed/Max Relative Centrifugal Force

Machine Model

1-14

Bench-top High Speed Micro Centrifuge

14800rpm/21060×g

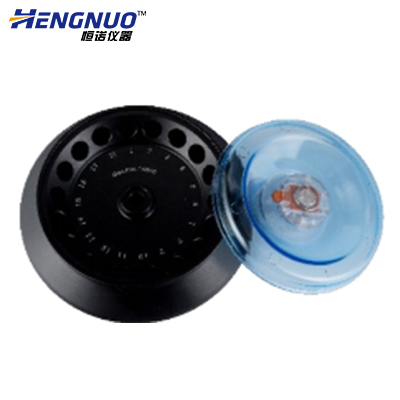

Angle Rotor

1.5ml/2.0ml×24   0.5ml×24  0.2ml×24

14800rpm /21060×g

Angle Rotor

0.5ml/×36   0.2ml×36

14800rpm /21060×g

Angle Rotor

5ml×18

14800rpm/ 21060×g

Angle Rotor

0.2ml/PCR 8×4

14800rpm /21060×g

Capillary rotor

24×(¢1.75mm×75mm)

12000rpm /13800×g

0.5ml Adapter

ABS Compound Material 24PCS/set



0.2ml Adapter

ABS Compound Material 24PCS/set
