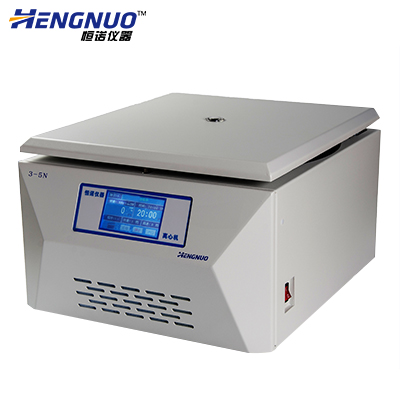

Middle-sized Bench-top Low Speed Centrifuge 3-5N (Normal Temperature)

Product Name:Middle-sized Bench-top Low Speed Centrifuge 3-5N (Normal Temperature)
Model No.:3-5N
Brand:HENGNUO
Applications:Pharmaceutical, biotechnology and chemical analysis, food industry, clinical and environmental analysis laboratories, forensic testing and industrial production laboratories that need process analysis, production and quality control.

Share With:

(※ Click this button to inquiry)

Overview
Working Principle
Feature
Technical Parameter
Accessory

Middle-sized Bench-top Low Speed Centrifuge

Model No. 3-5N (Normal Temperature)

Product Introduction

1. 5-inch touch screen control, easy to operate.

2. T45 cold rolled steel body, 304 stainless steel centrifugal cavity, safety and small vibration

3. It is equipped with electronic door lock.

Unlocking mode for option: automatic unlocking or manual unlocking.

4. High power DC brushless motor has maintenance-free for life with long service life.

5. Two-level shock absorption has good auto-balance function, safety and small vibration

6. With functions of gradient centrifugation, differential centrifugation, instant centrifugation and timing centrifugation, you can set required parameters freely to facilitate more required experiments

7. You set parameters such as speed, centrifugal force, time, speed up and down, etc., and it automatically calculates RCF value, rotation speed and centrifugal force, which can be displayed simultaneously without switching, simple and intuitive. You can modify parameters randomly without shutdown during operation.

8. A variety of stainless steel pipe racks are available for easy replacement. The instrument is widely used in clinical medicine, genetic biology, cytology and other fields, and has medium-sized volume, good compatibility, suitable for small and medium-sized multifunctional experiments.

Applicable Rotors for Model No.3-5N

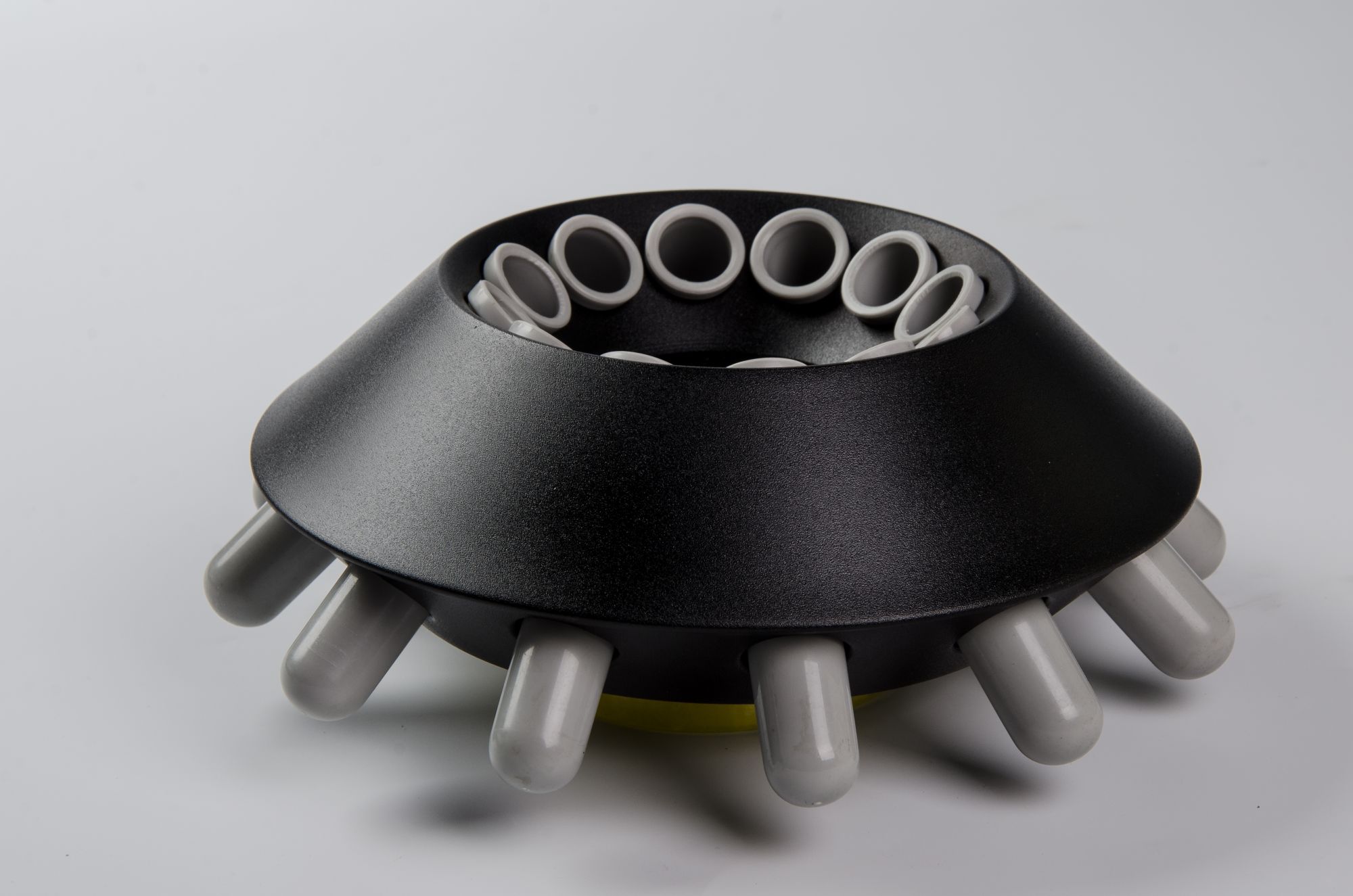

#1 Angle Rotor

Single tube capacity:10ml/15ml

Total capacity:12*(10ml/15ml)

Max speed: 5000rpm

Max relative centrifugal force: 5010*g

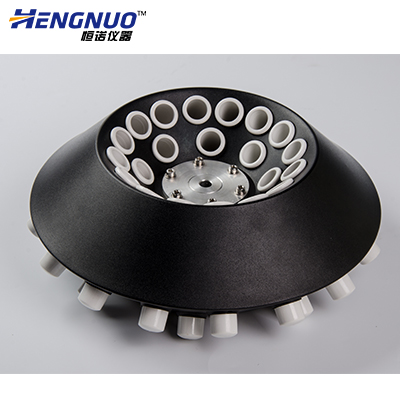

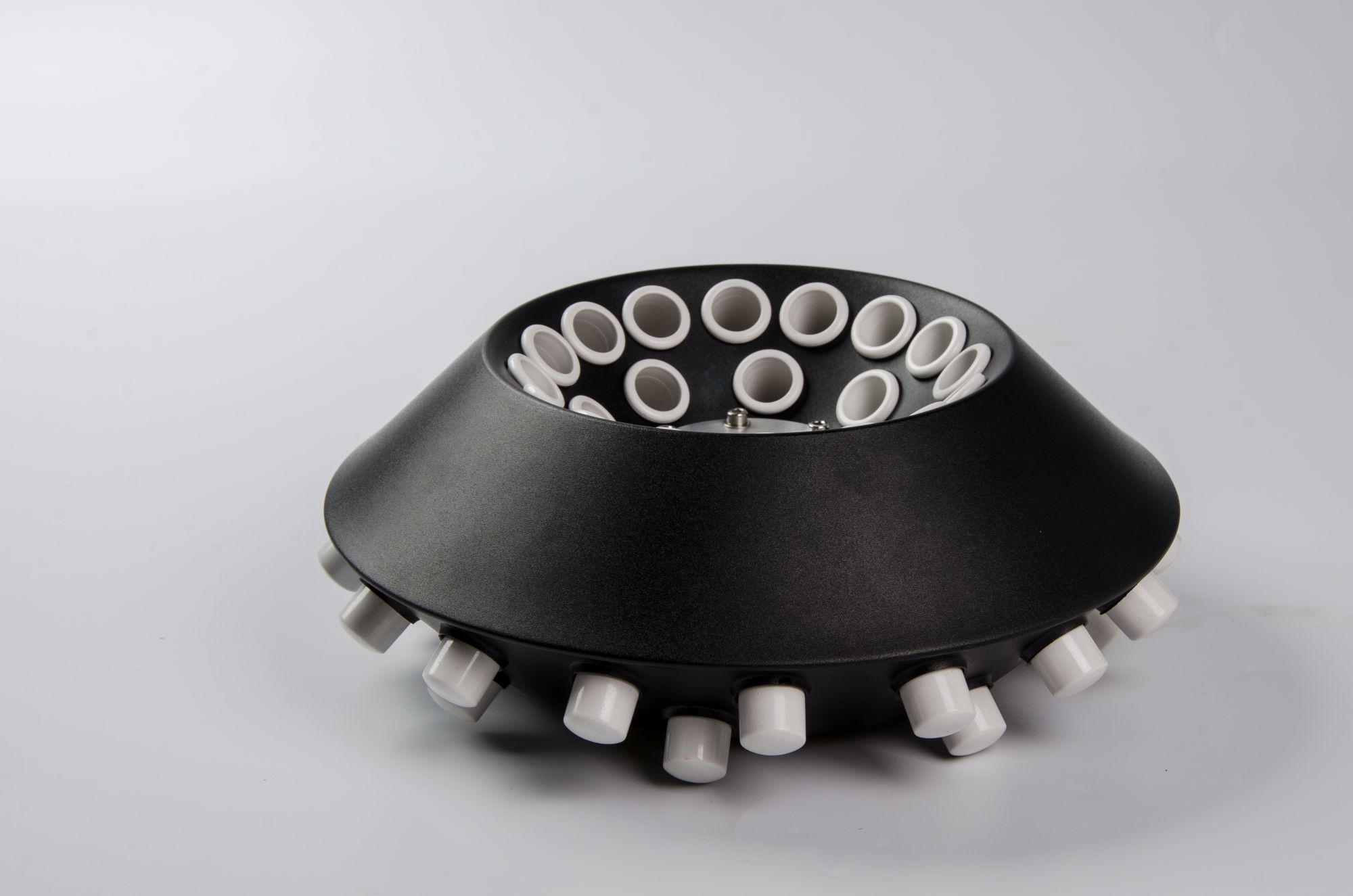

#2 Angle Rotor

Single tube capacity:10ml

Total capacity:24*10ml

Max speed: 4000rpm

Max relative centrifugal force: 2250*g

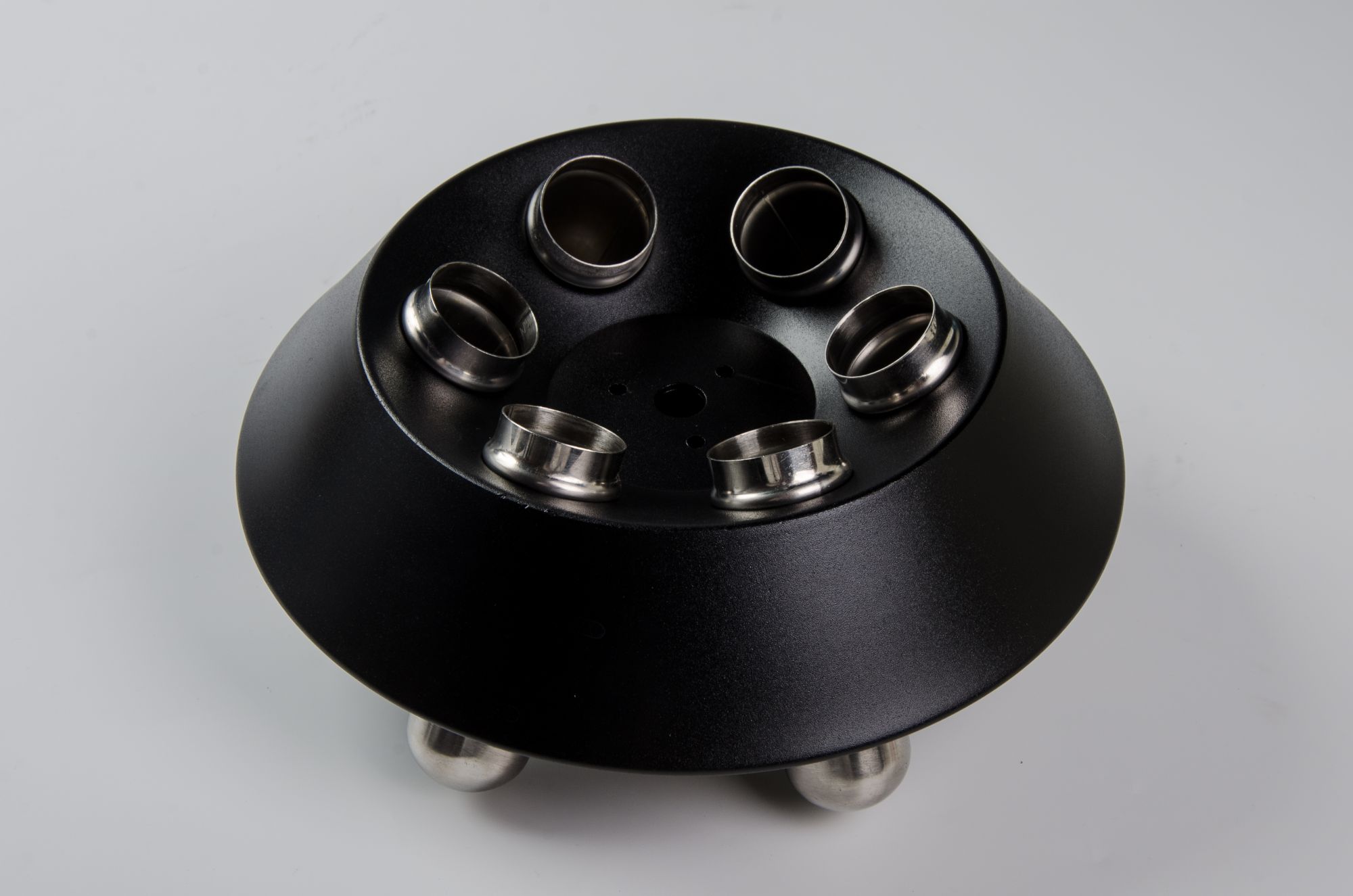

#3 Angle Rotor

Single tube capacity:50ml

Total capacity:6*50ml

Max speed: 4000rpm

Max relative centrifugal force: 2250*g

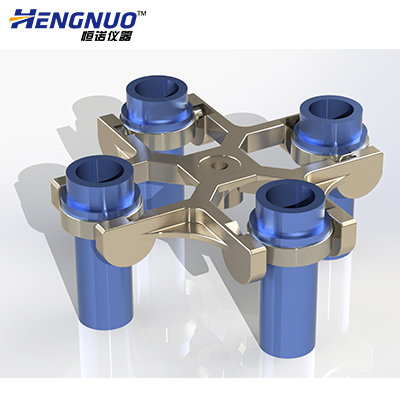

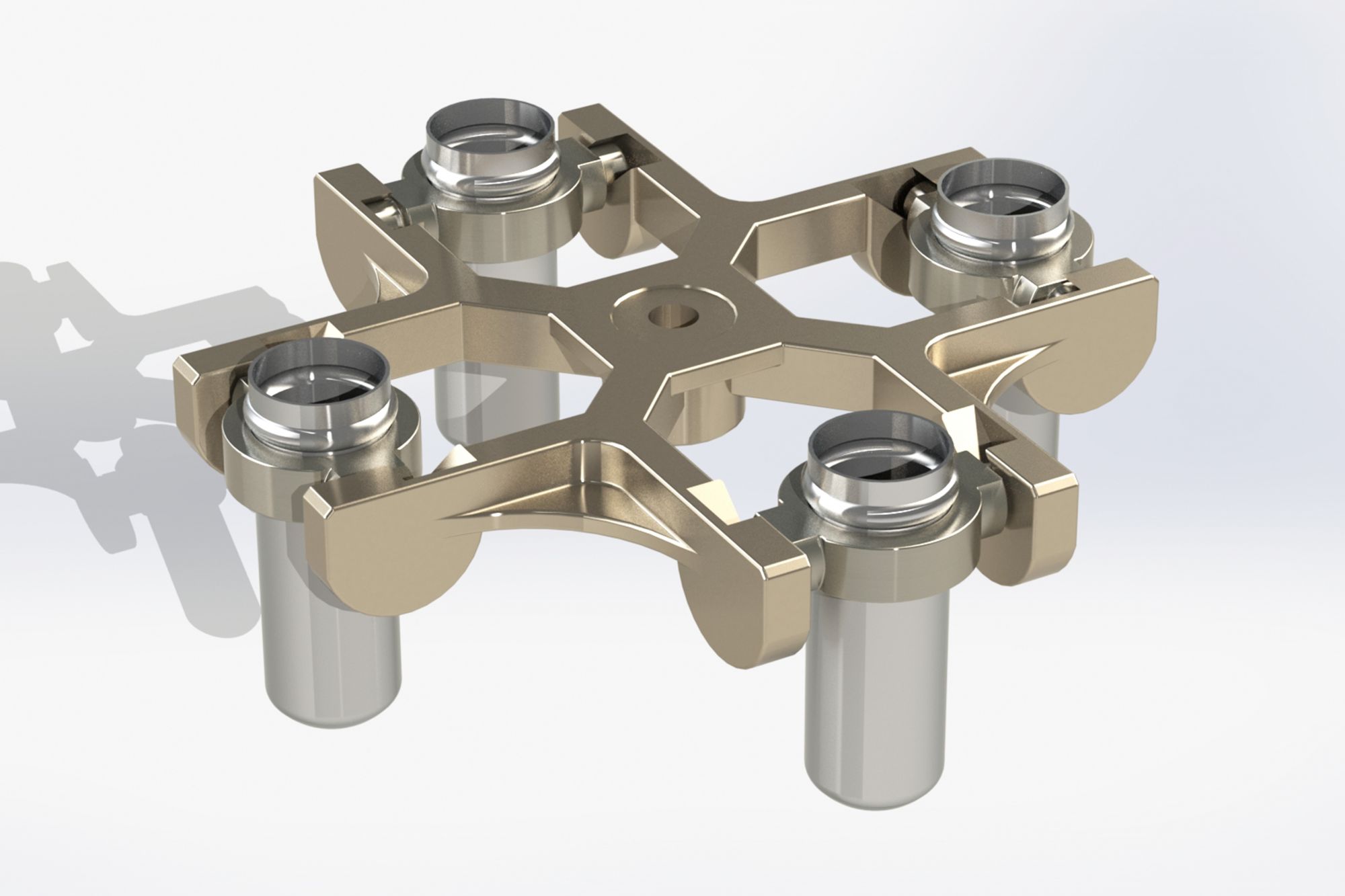

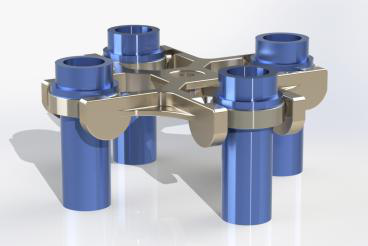

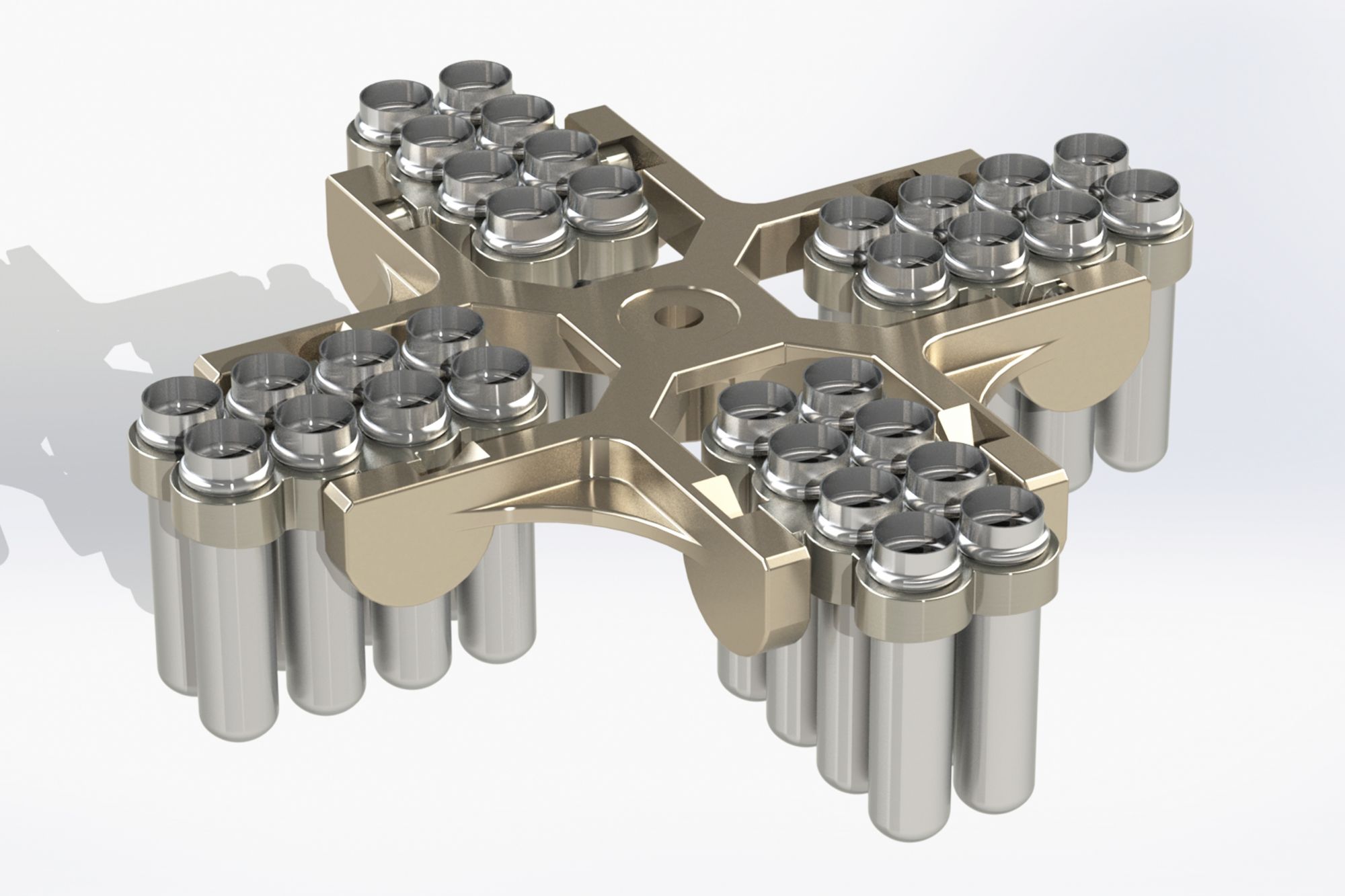

#4 Horizontal Rotor

Single tube capacity:10ml/15ml

Total capacity: 32*(10ml/15ml)

Max capacity: 4000rpm

Max relative centrifugal force: 2810*g

#5 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 4*(50ml/100ml)

Max speed: 5000rpm

Max relative centrifugal force: 4390*g

#6 Horizontal Rotor

Single tube capacity:5ml/7ml

Total capacity:48/64/72*5ml

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

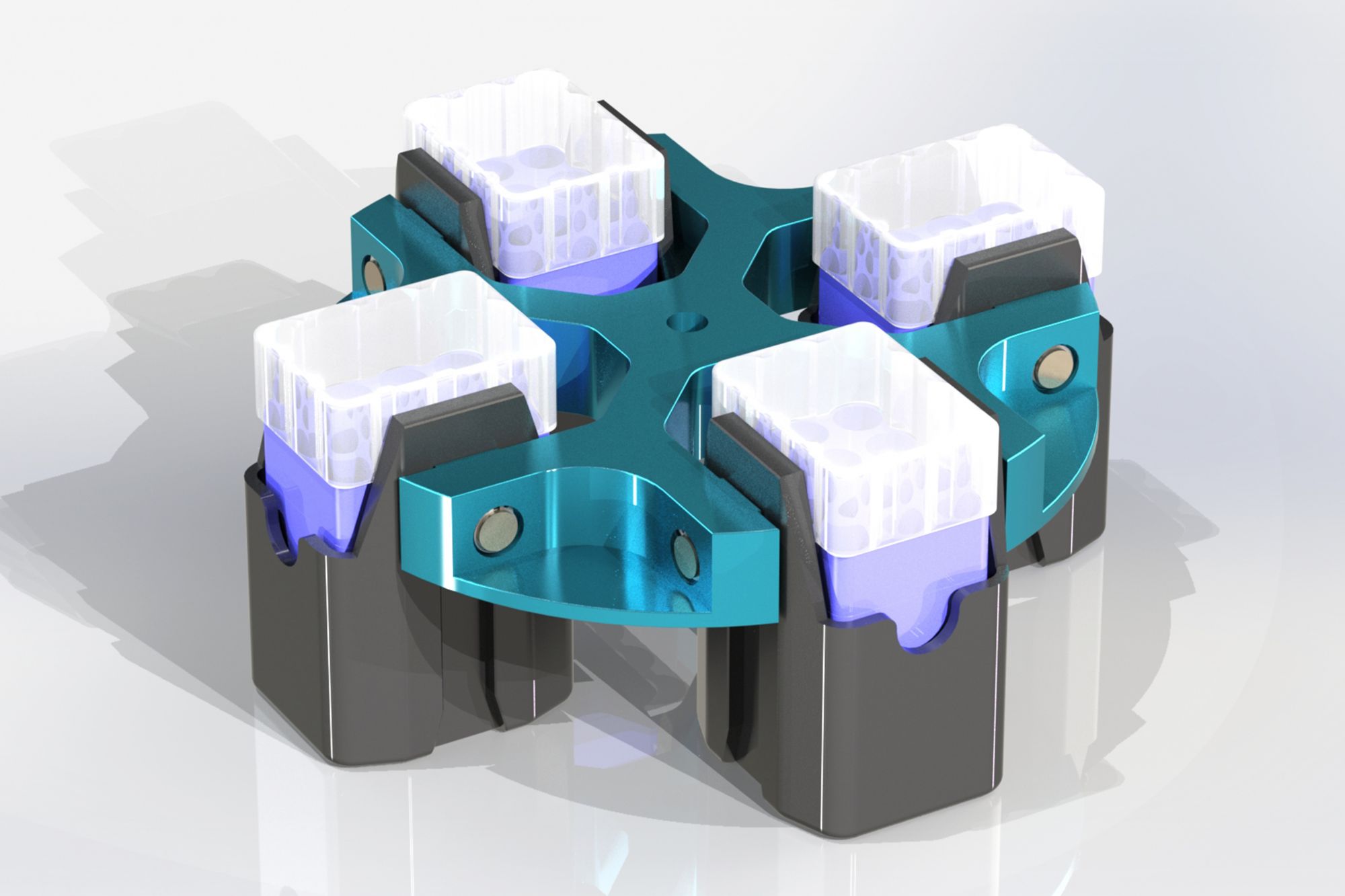

#7 Horizontal Rotor

Single tube capacity:250ml

Total capacity: 4*250ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

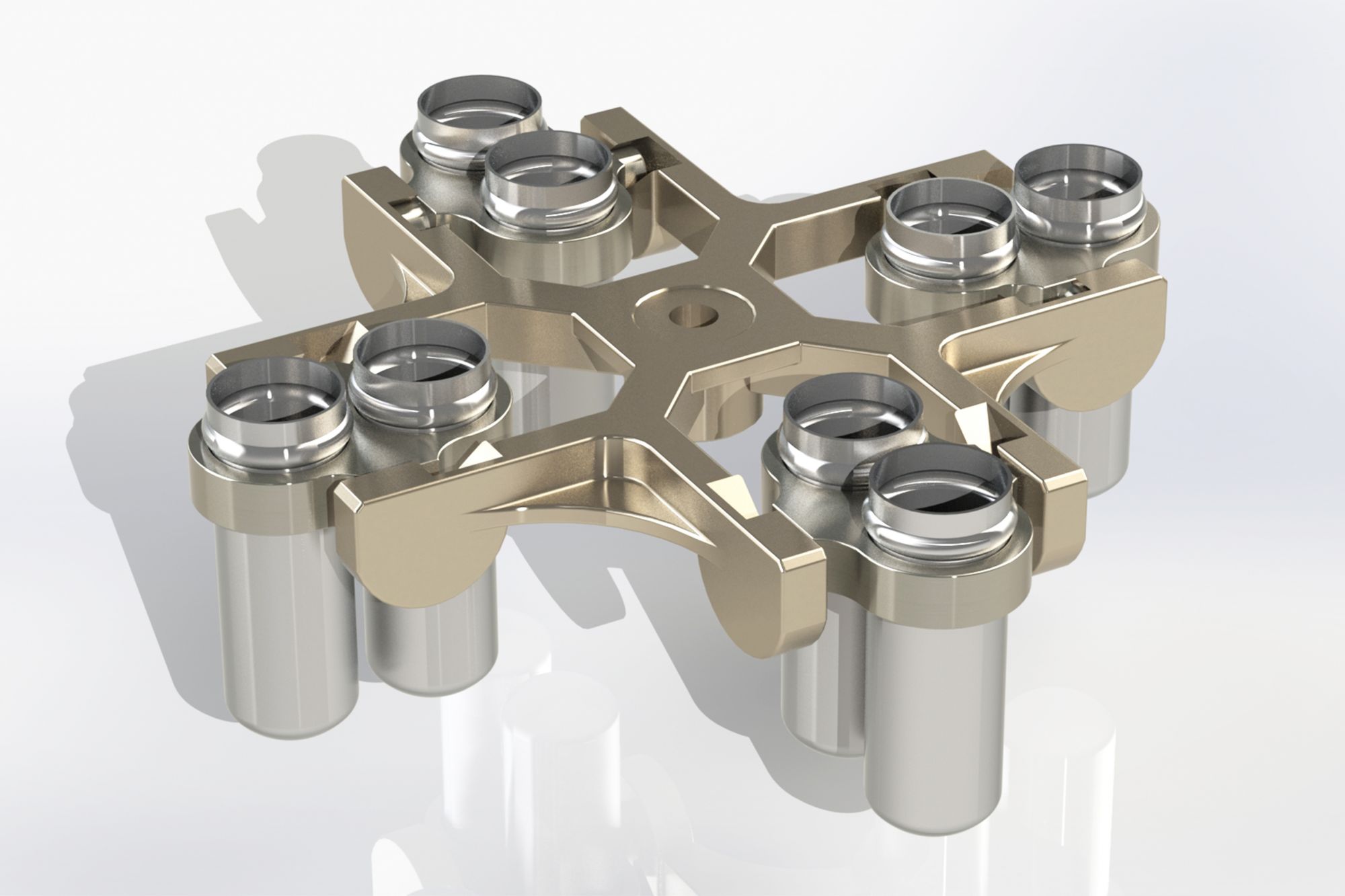

#8 Horizontal Rotor

Single tube capacity: 50ml/100ml

Total capacity: 8*50ml/100ml

Max speed: 4000rpm

Max relative centrifugal force: 2810*g

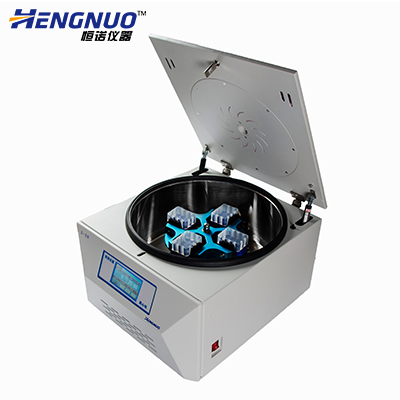

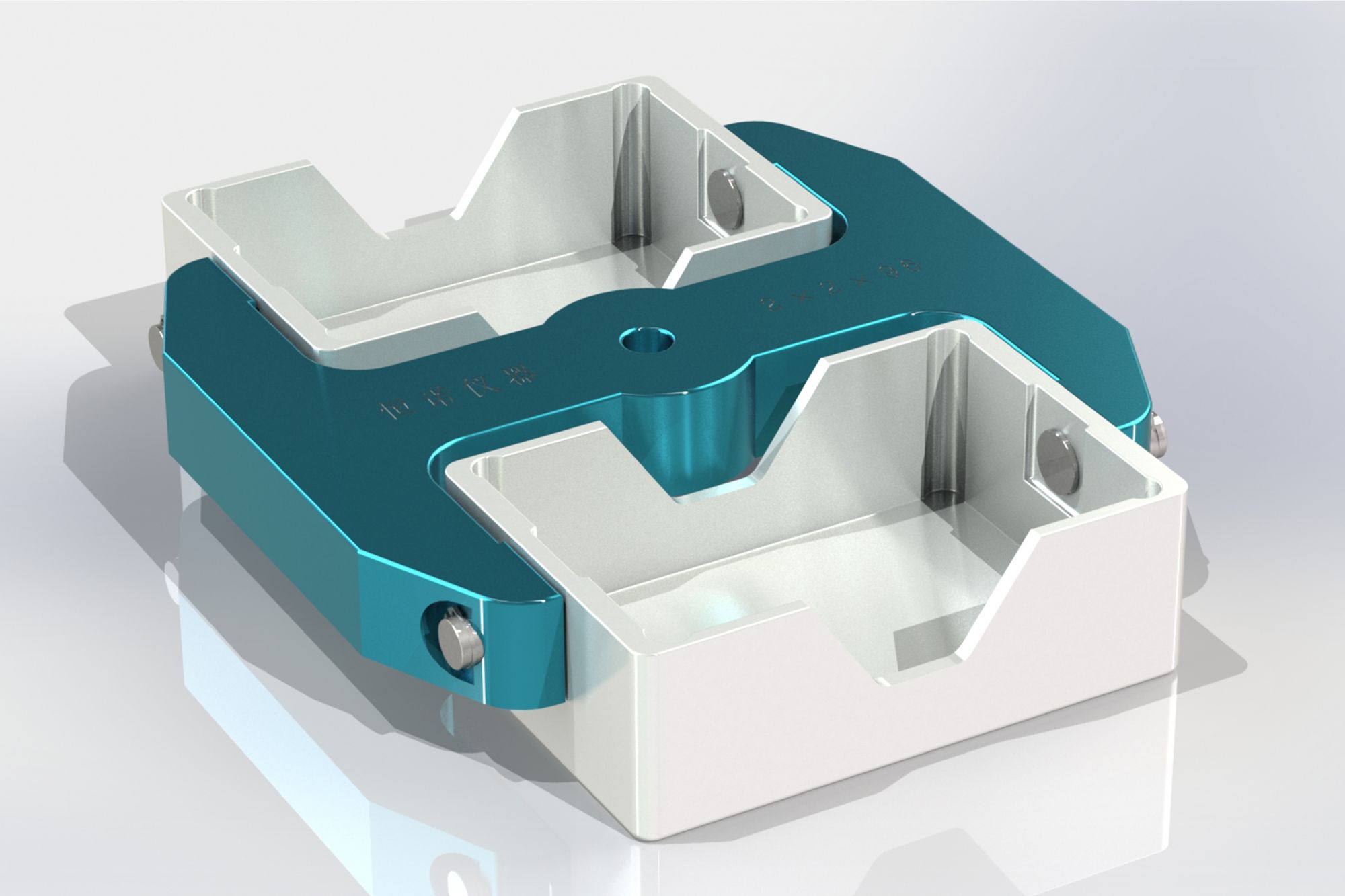

#9 Enzyme plate rotor

Single tube capacity: 96/384 hole plate

Total capacity: 2*2*96 hole plate

Max capacity: 4000rpm

Max relative centrifugal force: 2300*g

#10 Horizontal uncap rotor

Single tube capacity: 2ml/5ml/7ml

Blood collection tube (only 2ml uncap)

Total capacity: 48*5ml

Max speed: 4000rpm

Max relative centrifugal force: 3500*g

#11 PRP Rotor

Single tube capacity: 50ml injector

Total capacity: 4*50ml

10ml/20ml adapter for optional

Max speed: 5000rpm

Max relative centrifugal force: 4390*g

Model No.	3-5N（Normal Temperature）
Max Rotation Speed	5000rpm
Max Relative Centrifugal Force	4390*g
Max Capacity	4*250ml
Timing Range	0min～99min59s
Total Noise	< 65dB（A）
Total Power	550W
Diameter of Centrifugal Cavity	420mm
Speed Accuracy	±20rpm/min
Power Supply	AC 220±22V 50Hz 10A
Outline Dimensions (LWH)	545×468×350(mm)
Net Weight	42kgs
