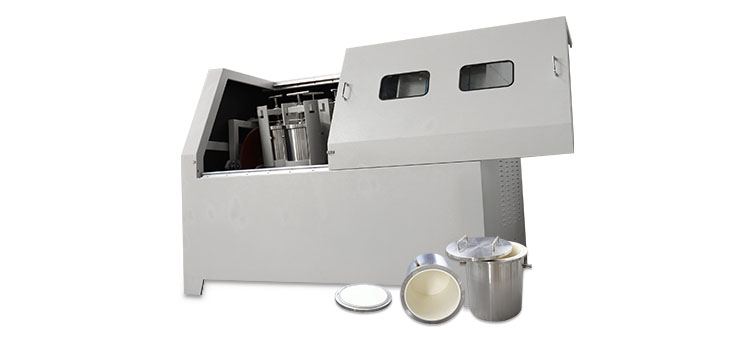

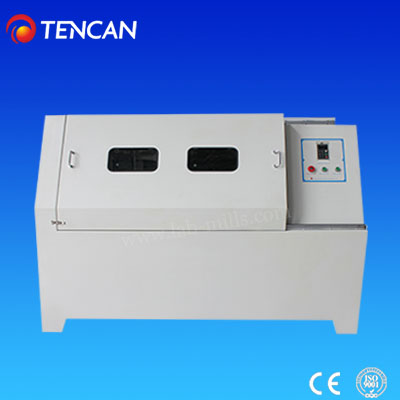

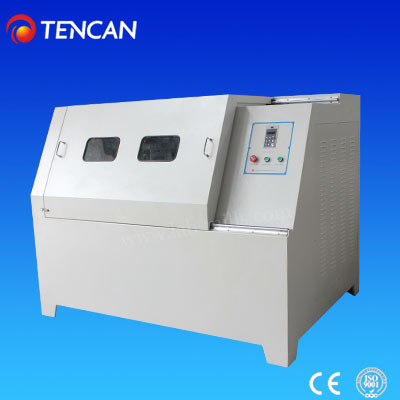

Heavy-duty Full-directional Planetary Ball Mill

Working Principle

QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.">

Features of Tencan Heavy-duty Full-directional Planetary Ball Mill

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

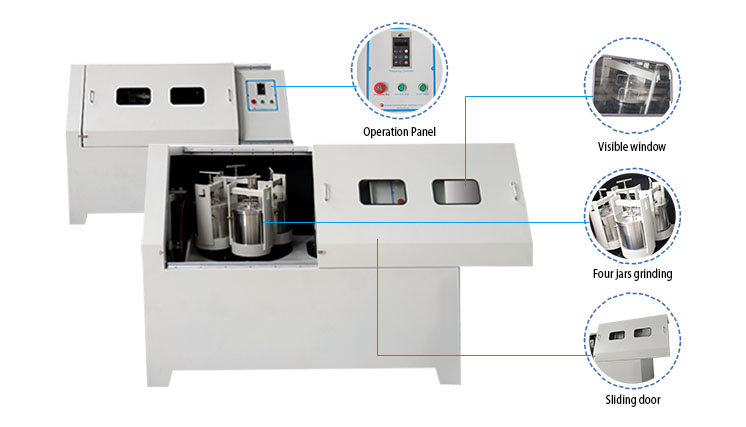

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

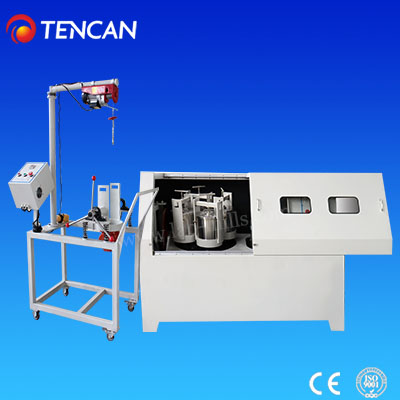

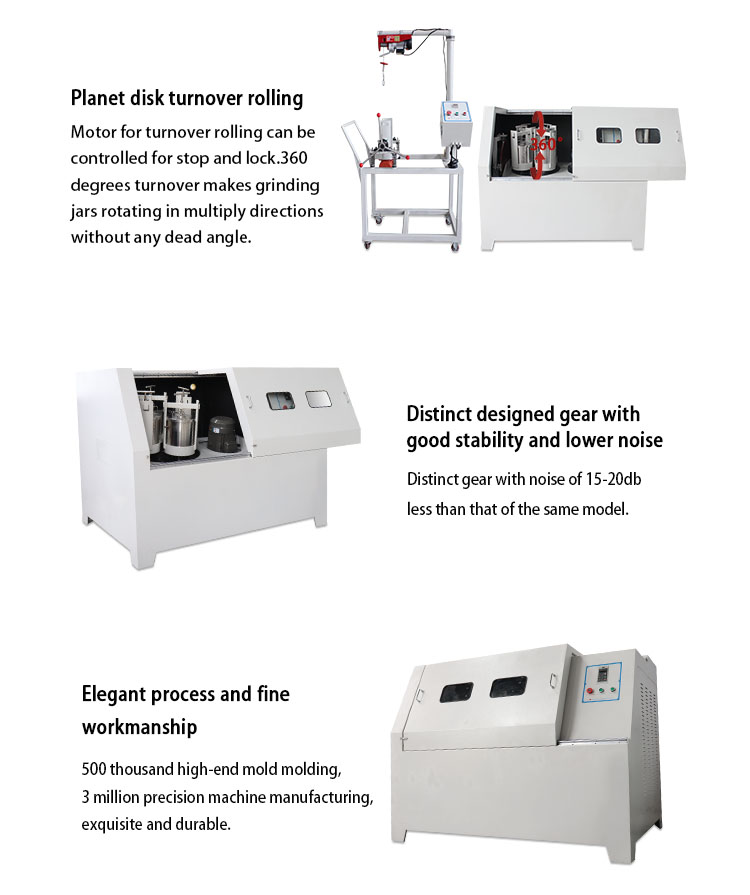

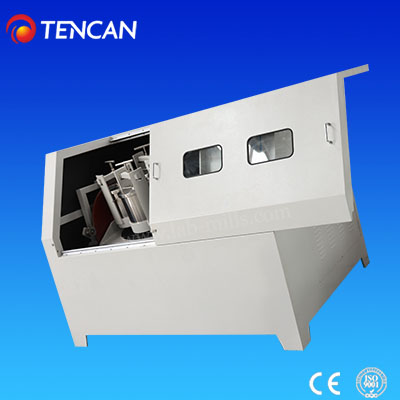

Professional out looking design and industrial modeling of the ball mill shell with lean manufacturing make machine exquisite and fine. CNC processing technology is adopted for making machine-added parts, and precision gears with special materials are selected for transmission gears to ensure smooth, safe and low noise operation of the ball mill at high speed. Overturning motor has function of brake locking, which can stop overturn at any angle, it is safe and reliable. Ball mill is easy to be operated due to touch screen of micro-computer as its interface is simple and intuitive. This kind of ball mill can realize forward and backward alternating control, and has functions of timing and power-off memory.

Applications
Heavy-duty full-directional planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for lots of production fields such as electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder, electronic glass, etc. Production of Powder, Fuel Cell, Zinc Oxide Varistor, Piezoelectric Ceramics, Nanomaterials, Wafer Ceramic Capacitance, MLCC, Thermistor (PTC, NTC), ZnO Varistor, Dielectric Ceramics, Alumina Ceramics, Zirconia Ceramics, Phosphor Powder, Zinc Oxide Powder, Cobalt Oxide Powder, Ni-Zn Ferrite, Mn-Zn Ferrite, etc.

Application Cases of Planetary Ball Mill

Application Cases of Planetary Ball Mill

Table 3 Technical Parameters For Heavy-duty Full-directional Planetary Ball Mill res of Tencan Full-directional Planetary Ball Mill

Drive Mode	Gear drive
Operation Mode	Two or four mill jars can be used for each grinding
Max Capacity for Materials	Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume
Feed Size	Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm
Output Granularity	Smallest granularity can be achieved to 0.1μm
Rotation Speed Ratio	1:2
Max Continuous Operating Time	72 Hours
Materials of Available Mill Jars	304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

Table 1 Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill

Model No.	Specifications	Matchable Sizes  of Mill Jars	Matched Quantity	Matchable Sizes of Vacuum Mill Jars
QXQM-20	20L	2L-5L	4 pcs	1L-4L
QXQM-40	40L	4L-10L	4 pcs	2L-5L

Table 2 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill

Model No.	Voltage	Power	Rotation Speed	Noise
QXQM-20	380V-50Hz	4.0KW	50-430 rpm	Less than 65db
QXQM-40	380V-50Hz	5.5KW	40-390 rpm	Less than 65db

Table 3 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill

Model No.	Speed Control	Net Weight	Net Dimensions
QXQM-20	Frequency Control	1150kgs	1700*1210*1300mm
QXQM-40	Frequency Control	1400kgs	1900*1450*1480mm

Besides the planetary ball mill machine, our factory provides all kinds of mill pots stainless steel pot, zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot tempered nylon pot etc. Further, and we also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
