Stainless Steel Vacuum Mill Jar

  • Brand:TENCAN
  • Applications:Stainless steel vacuum mill jar are extensively applied to in the fields of Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, Paint, Ink, Geology and so on.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

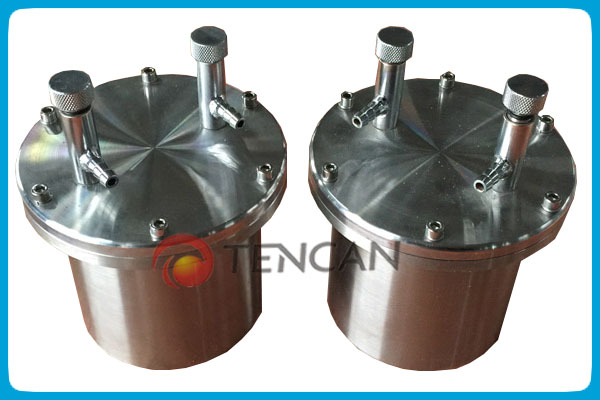

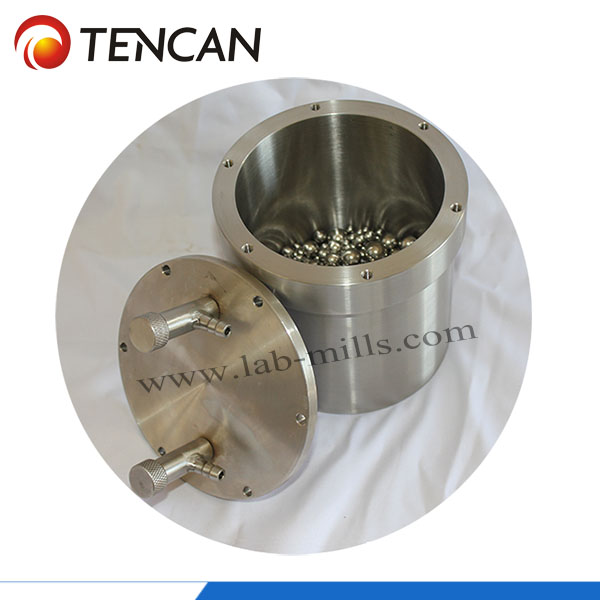

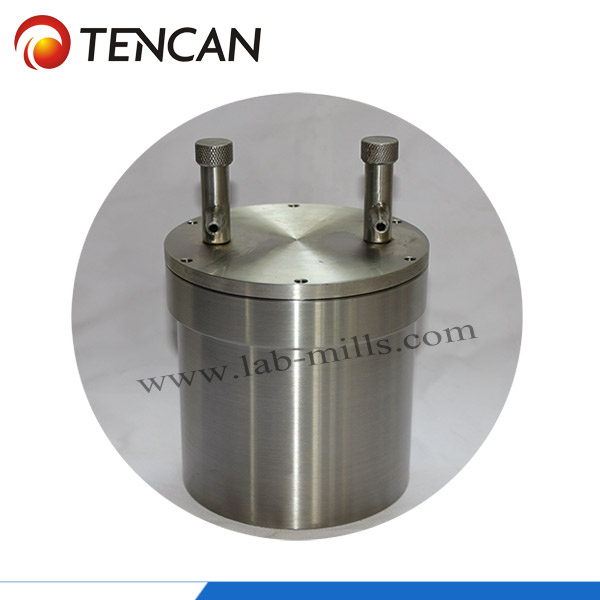

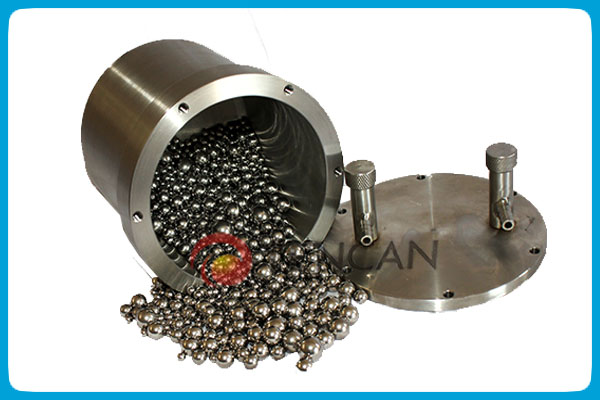

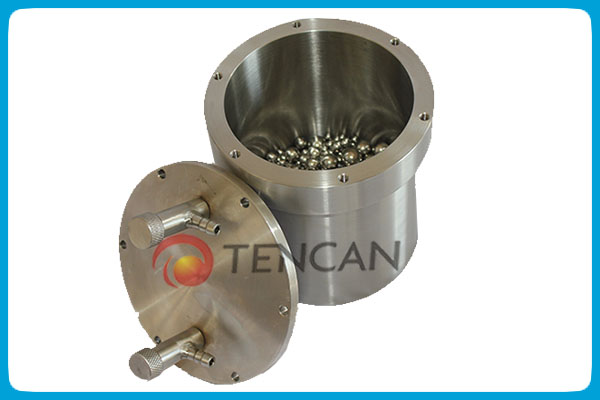

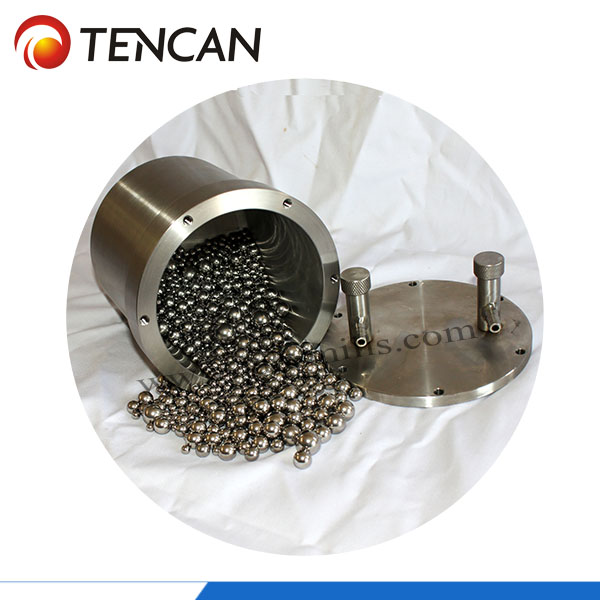

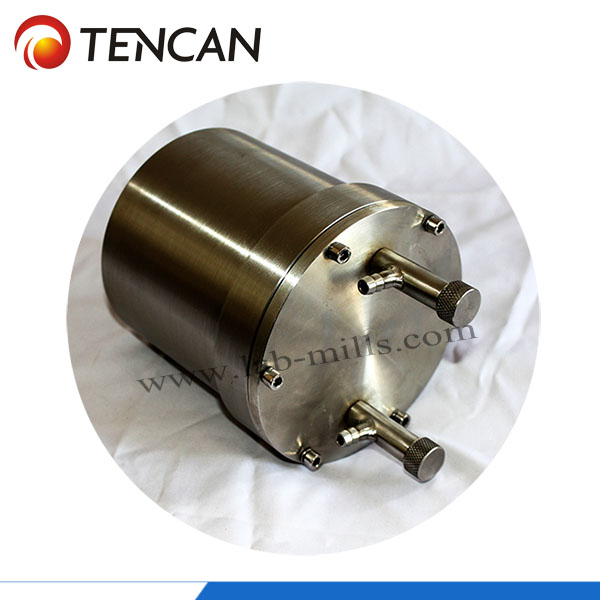

Vacuum stainless steel mill jar is designed and developed for the materials which will be oxidized easily when grinding. The good sealing performance makes it possible that materials can be separated from oxygen, water or others which will affect the grinding.










1. Special design for the valve, convenient operation, good sealing performance.
2. Made of stainless steel, lining PU, nylon, alumina etc.
3. Factory direct sales, high cost performance.


Parameters of Stainless Steel Vacuum Mill Jar for Planetary Ball Mill
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
50ml 39 49 45 50 58 0.7
100ml 48 62 57 65 72 1.3
250ml 73 88 65 73 80 2.1
500ml 90 107 93 100 107 3.5
1L 115 132 118 128 135 5.4
1.5L 115 131 143 150 158 5.8
2L 141 153 133 140 149 6.3
3L 141 157 198 205 213 9.2
4L 168 178 200 205 213 9.2
5L 182 192 200 205 213 10.2
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG

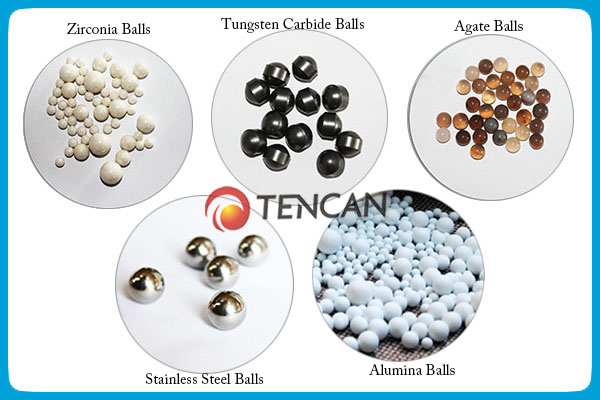

Mill Balls

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
