PU planetary Mill Jar

  • Brand:TENCAN
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory

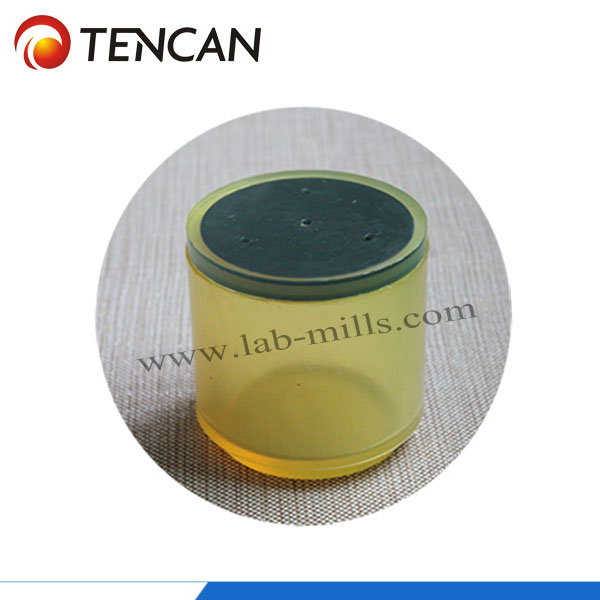

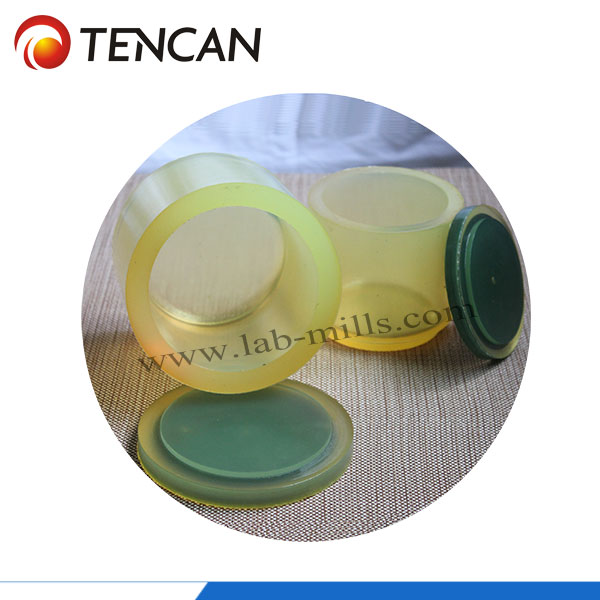

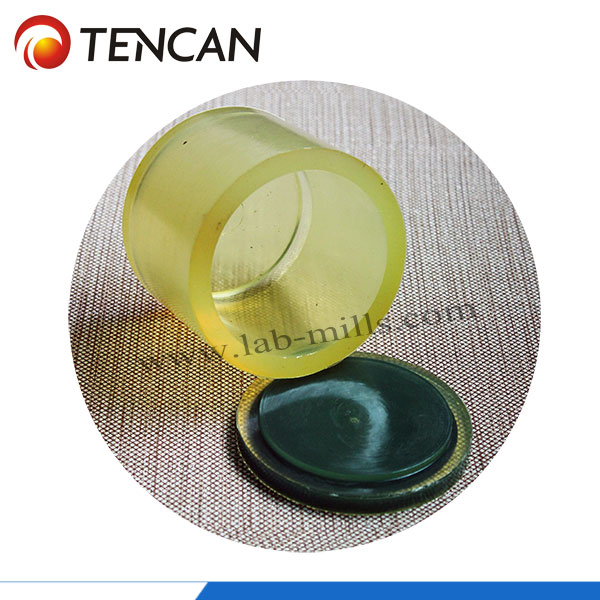

High wear-resistant polyurethane mill jar has an excellent performance in electronic industry and battery material. It does not bring harmful impurities into grinding materials in working process, and ensures quality of the electronic products. TENCAN polyurethane mill jar is an integrated structure with magnanimous arc angle and thick jar mill. it is convenient to open and close over, and is sealed tightly with transparent body. PU mill jar is also hard and durable for use with its beautiful shape. Problems such as big gap, leaks, and dead angel of storage never appear in working process.





1. Polyurethane milling tank for planetary ball mill.
2. Resistant to strong acid, alkali.
3. High temperature resistant.
Features of Polyurethane:
1. Resistant to strong acid, alkali.
2. High temperature resistance.
3. Wear resistance.
Parameters of PU Mill Jar
Volume of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
100ml 53 68 52 59 69 0.46
250ml 74 98 73 83 90 1.17
500ml 87 106 85 94 104 1.38
1L 105 132 113 123 135 2.73
1.5L (packaged 3mm stainless steel) 116 132 145 153 161 3.68
3L(packaged 3mm stainless steel) 139 159 203 215 223 5.62
5L(packaged 3mm stainless steel) 168 192 228 240 251 10.53
10L(packaged 3mm stainless steel) 219 243 262 275 286 19.33
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG
Mill Balls

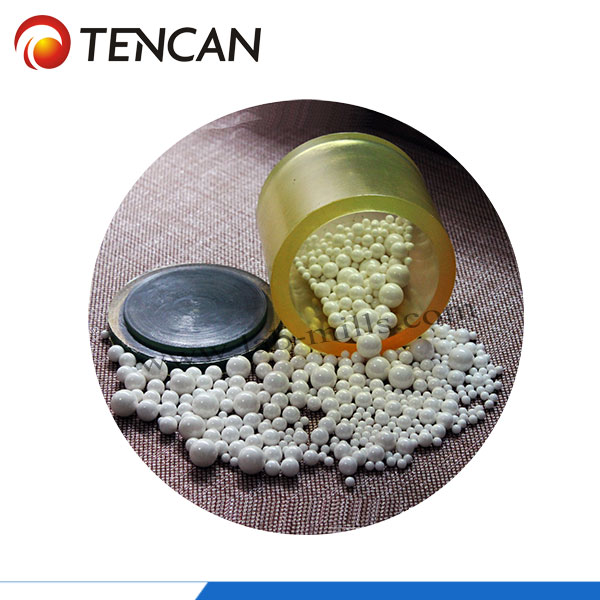

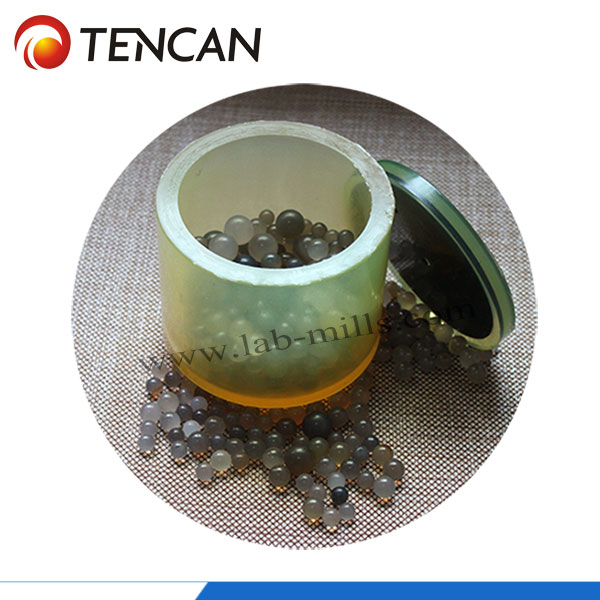

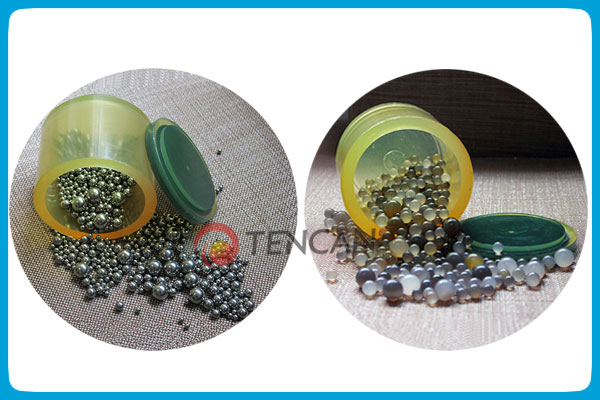

We can provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
