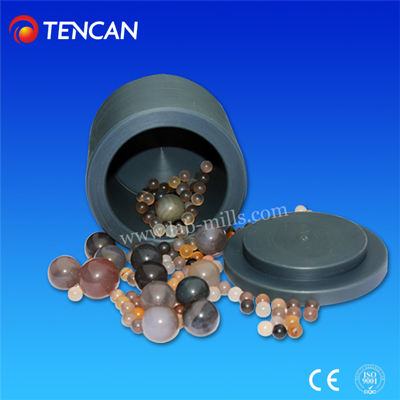

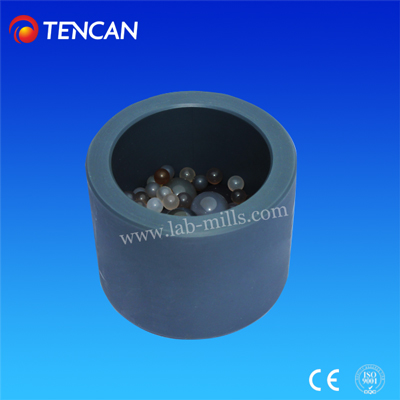

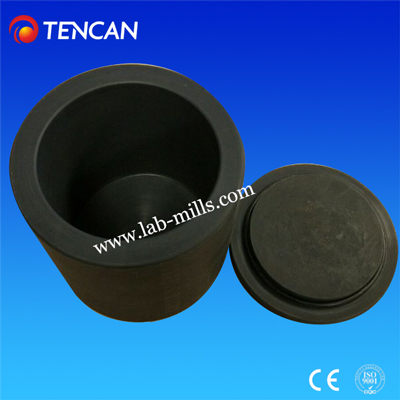

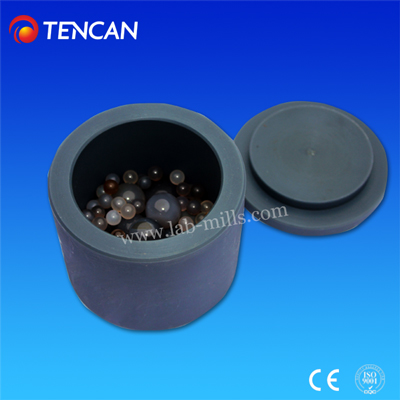

Black Nylon Mill Jar for Planetary Ball Mill

  • Brand:TENCAN
  • Applications:It is widely used in the fields of precious metals, electronic ceramics, magnetic materials, pigment, paint etc.
Share With:
(※ Click this button to inquiry)
  • Overview
  • Working Principle
  • Feature
  • Technical Parameter
  • Accessory
 Nylon mill jar is a kind of high quality mill jar which contains metallic impurity, it is the preferred mill jar for all kinds of mental and high-grand pigment mill, thus nylon mill jar can be widely used in precious metals, electronic ceramics, magnetic materials, pigment, paint etc.










1. Pure white, exquisite appearance.
2. Because of non-metal materials of the jar, there are no metal impurities in grinding process.
3. Professional design, manufacturing precisely with delicate and good looking appearance.
4. High strength, good toughness, perfect sealing performance.

Parameter of Nylon Mill Jar for Planetary Ball Mill
Volumn of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
25ml 31 63 40 56 65 0.21
50ml 43 63 40 50 59 0.15
100ml 48 68 55 65 76 0.21
250ml 68 88 75 85 98 0.39
500ml 88 108 90 100 115 0.61
1L 109 133 118 130 142 0.98
1.5L 109 133 154 166 178 1.18
2L 134 158 148 160 172 1.45
2.5L 134 158 178 190 202 1.65
3L 138 158 190 200 210 1.45
4L 158 178 212 214 226 1.67
5L(packeged 2mm stainless steel) 190 218 186 200 217 4.97
10L(packeged 2mm stainless steel) 218 246 276 290 307 7.83
15L(packeged 3mm stainless steel) 243 273 335 350 372 12.98
20L(packeged 3mm stainless steel) 285 320 320 335 359 16.18
25L(packeged 3mm stainless steel) 285 320 385 400 424 18.74
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG



Parameter of Nylon Roll Mill Jar
Volumn of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
500ml 88 108 115 125 137 0.60
1L 108 128 153 165 177 0.974
1.5L 108 128 178 190 202 1.08
2L 134 158 183 195 207 1.65
3L 154 178 213 225 237 2.23
5L 173 197 258 270 282 2.93
10L 214 249 299 316 328 7.00
15L 266 298 307 325 340 8.75
20L 262 298 416 436 451 11.68
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG













 Mill Balls

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
